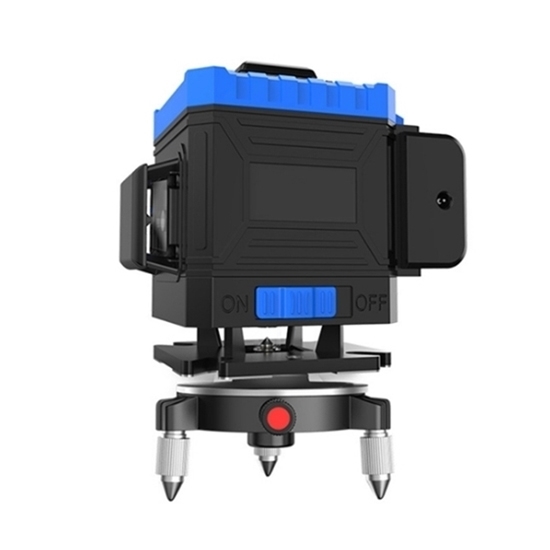

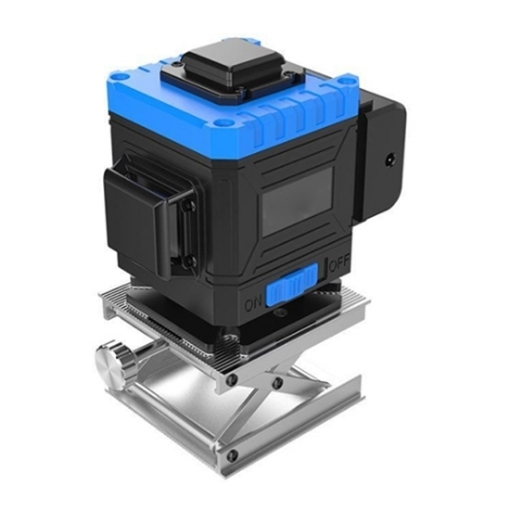

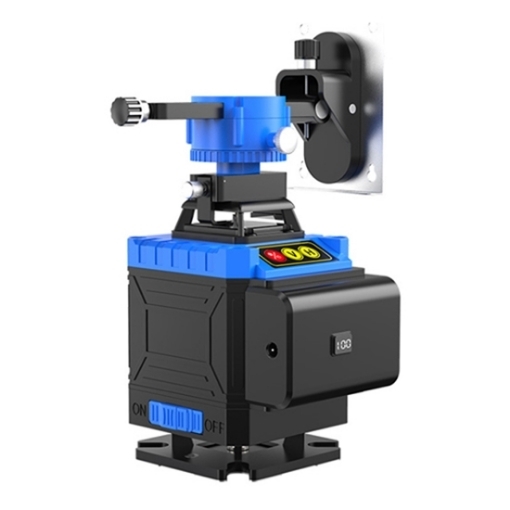

Rotary Green Laser Level, 8 Line, 360 Degree

Rotary Green Laser Level, 8 Line, 360 Degree

ATO high-quality green laser level comes with 4 vertical lines, 4 horizontal lines and 2 crossing lines, the laser wavelength of 635nm, launch angle ≥120°. 360° rotation self-leveling laser level suitable for indoor/outdoor use.

SKU: CCHN-LL-08

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Lower cost rotary laser level with 5 green laser lines, 360° rotating base, self-leveling green rotating laser is IP54 rated, which means that it’s protected against dust and water, providing a longer product life.

Specification

Model	CCHN-SL-08
No.of Laser Lines	8
Leveling Type	4 vertical line, 4 horizontal line, 2 crossing line
Laser Wavelength	635nm
Self-Leveling Range	±3°
Launch Angle	≥120°
Horizontal Accuracy	5m±1mm
Vertical Accuracy	5m±1mm
Plumb Dot Accuracy	±1mm at 1.5m
Line Width	2mm
Line Color	Emerald green
Power Supply	2 x 5800mA rechargeable lithium battery (72 hours standby)
IP Rating	IP 54
Operation Temperature	-10℃~50℃
Battery Type	Digital LCD rechargeable lithium battery (8 hours standby)
Function Key	Fingerprint touch buttons
Wall Distance	7mm
Ground Distance	6mm
Laser Head	Made in Germany
Working Time	12 hours
Outdoor Visible Distance	About 15m
Remote Control	Yes
Slash Mode	Yes
Weight	3kg

Packing List

1 x 8 Line Green Laser Level
2 x 5800mA Lithium Battery
1 x Power Adapter
1 x Magnetic Bracket
1 x Adjustable Lifting Platform
1 x Magnetic Pivoting Base
1 x Hand-shell Carrying Case
1 x Remote Control
1 x Conversion Screw
1 x User Manual

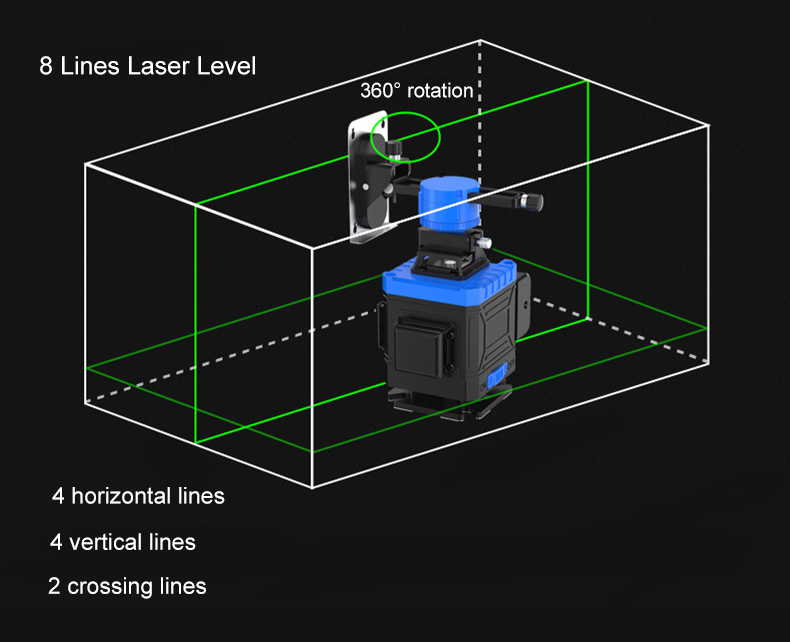

8 Line Laser Level Diagram

Details

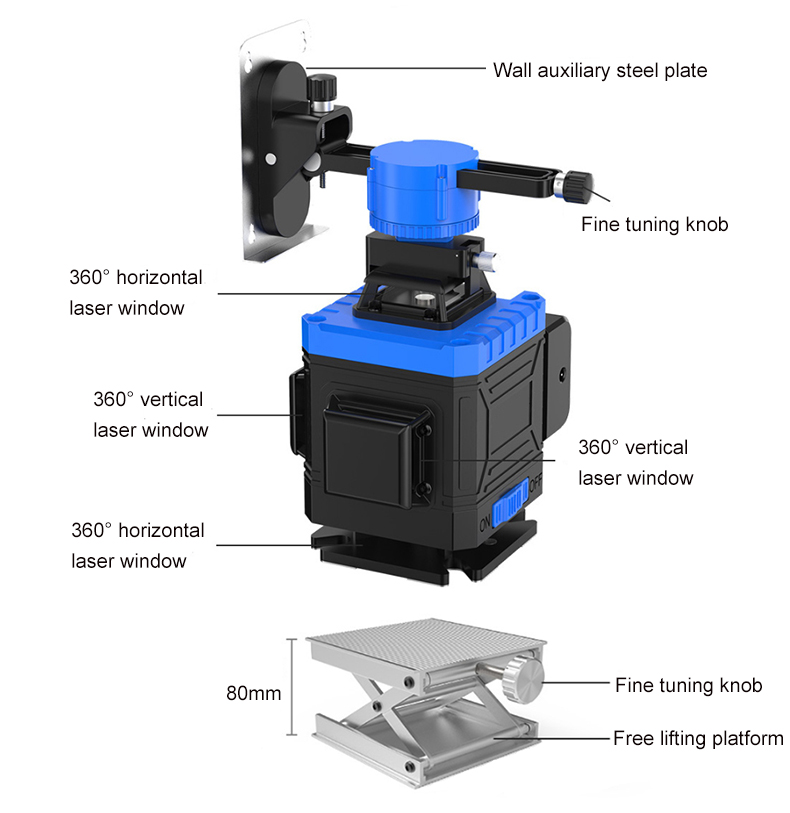

Rotary laser level detail

Application

CCHN high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

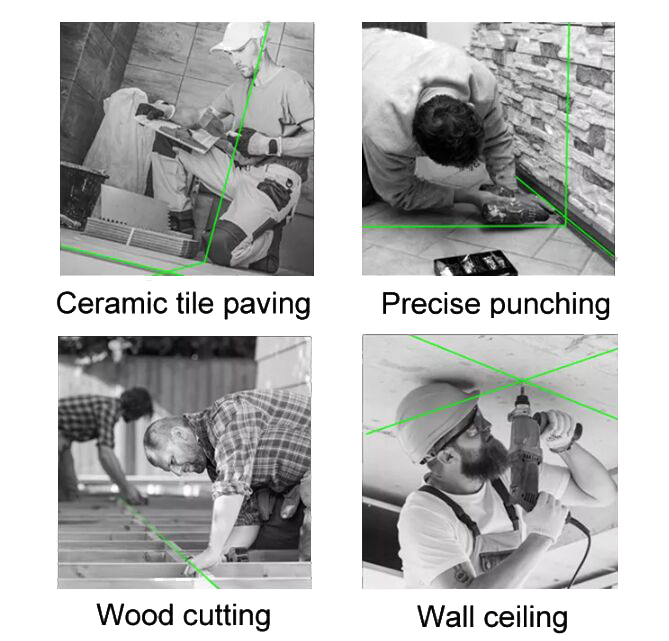

Rotary laser level application

Tips: The basic structure of the laser level

Telescope: It is mainly used to observe the target. It can be subdivided into three parts: objective lens, eyepiece, and reticle. The objective lens can be used to collect light; the eyepiece is used to straighten the image, and the reticle is used to align the target.
Level and turntable: The level can be used to display the level state; the turntable is used to rotate the lens barrel for observation while maintaining the instrument level.
Base: Carrying the mirror and the level, providing the connection between the level and the tripod, which can be used to adjust the level of the level.
