Laser Range Finder Sensor for Construction

Laser Range Finder Sensor for Construction

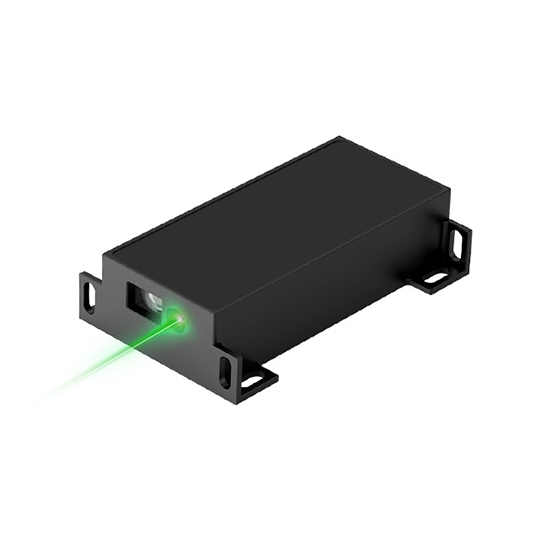

The laser range finder sensor with a 0.03–100m measurement range. RS485, RS232, and TTL communication interfaces enable flexible integration with various control systems. IP54 protection rating and 0–40 °C operating temperature suitable for construction and measurement environments.

SKU: CCHN-LDS-MSLG

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The industrial laser distance sensor is designed for distance measurement in building, positioning, and site monitoring tasks. Flexible communication options allow convenient integration with control systems and automation equipment.

Specification

Model	CCHN-MSLG-202601
Measurement Range	0.03–40/60/100m (Reflectivity: 1.0, Ambient Light Intensity: 3 kLux)
Sensing Distance	40m/60m/100m
Measuring Frequency	3Hz
Accuracy	±(3 mm + D × 1/10000)
Resolution	1mm
Laser Wavelength	λ=510–550nm
Laser Power	< 1mW
Measurement Time	0.3–4s
Laser Class	ClASS-II
Laser Spot Diameter	＜8mm@10m; ＜20mm@20m; ＜40mm@40m
Reflectivity Range	0.02–1.0
RS485	Laser Off Current	<30mA@5V
	Laser On	<50mA@5V
	Continuous Measurement Mode	<80mA@5V
5V RS232	Laser Off Current	<30mA@5V
	Laser On	<55mA@5V
	Continuous Measurement Mode	<90mA@5V
5–36V RS232	Laser Off Current	<30mA@5V
	Laser On	<50mA@5V
	Continuous Measurement Mode	<80mA@5V
3.3V TTL	Laser Off Current	<30mA@3.3V
	Laser On	<55mA@3.3V
	Continuous Measurement Mode	<120mA@3.3V
5–36V TTL	Laser Off Current	<30mA@5V
	Laser On	<50mA@5V
	Continuous Measurement Mode	<80mA@5V
Operating Temperature	0–40℃
Storage Temperature	-25–60°C
Protection Rating	IP54
Dimensions	68×42.20×17.40mm
Weight	53g

Feature

Long-Range Laser Distance Measurement: The laser range finder sensor supports sensing distances of 40m/60m/100m, with a measurement range from 0.03–100 m for versatile industrial applications.
High Measurement Accuracy: Offers 1mm resolution for reliable and stable distance measurement data.
Stable Measurement Performance: The laser distance sensor delivers a 3Hz measuring frequency and 0.3–4 s adjustable measurement time for consistent and flexible distance monitoring.
Class II Low-Power Laser: Uses a 510–550nm laser wavelength with <1mW output for safe and stable operation.
Multiple Communication Interfaces: The laser range sensor integrates RS485, RS232, and TTL interfaces for easy connection with controllers, PLCs, and embedded systems.
Low Power Consumption: Features optimized current consumption for different modes, enabling efficient operation in continuous measurement applications.
Reliable Environmental Adaptability: The industrial laser distance sensor works in 0–40 °C with IP54 protection, suitable for industrial automation and equipment integration.

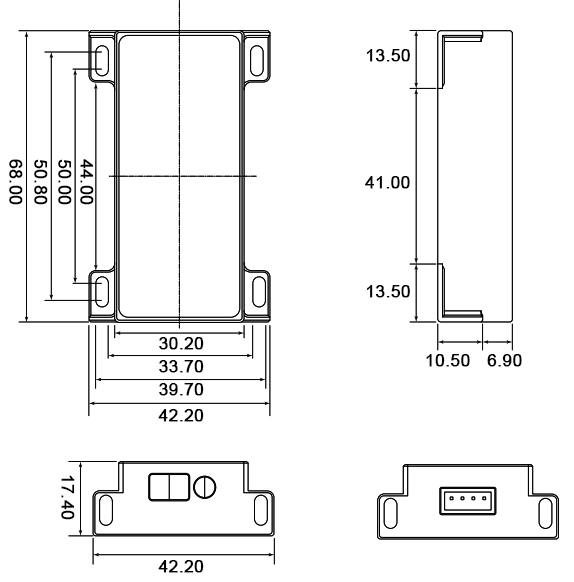

Size (unit: mm)

Laser range finder sensor size

Application

Laser range finder sensor size

Tips: What are the advantages of the green laser used in the laser range finder sensor?

Higher Visibility: The laser distance sensor uses green lasers, which are more visible to the human eye compared to traditional red lasers, making it easier to identify the laser spot during installation and target alignment.
Clearer Positioning: Green lasers provide clearer target positioning for mid-to-long-range measurements, helping users quickly locate the measurement point.
Easier Observation in Bright Conditions: In strong light or outdoor environments, the green laser spot is generally easier to see than a red laser.
Improved Installation Efficiency: The laser range sensor’s clearer laser spot helps users complete device installation, calibration, and alignment more quickly, enhancing overall work efficiency.
