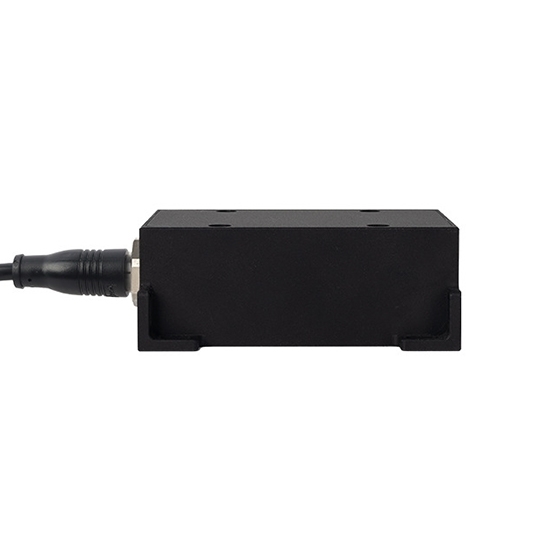

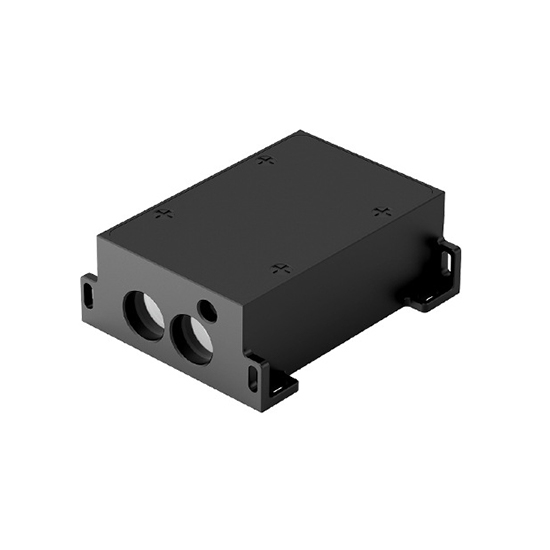

Laser Range Sensor, 100/150/700m

High precision laser range sensor with measurement ranges of 3–100 m, 150 m, or 700 m, offering 0.1 m resolution and a fast 1 s measurement time. A 3 m blind zone, low power consumption, and a durable metal housing support stable operation in 0–50 °C environments. Suitable for industrial automation and outdoor distance monitoring, combining fast response and long service life in a compact design.

SKU: CCHN-LDS-ZSFS

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

This small laser distance sensor, engineered for reliable long-range measurement in demanding environments, features an all-metal housing and low power consumption, delivering accurate performance for industrial automation, logistics positioning, and outdoor monitoring applications.

Specification

Model	CCHN-ZSFS-202601
Measurement Range	100/150/700m
Max Measurement Time	1s
Accuracy	±1m
Blind Zone	3m
Resolution	0.1m
Laser Type	905nm laser
Operating Voltage	Typical DC 3.3V, operating range: 2.5V–3.5V
Operating Current	100mA
Power Consumption	330mW @ 3.3V
Operating Temperature	0–50°C
Serial Level	TTL 3.3V
Dimensions	80×65×32mm
Weight	188g

Feature

Wide Measurement Range: The laser range sensor supports 3–100 m, 150 m, or 700 m, providing accurate and reliable distance measurements for diverse environments, from confined indoor spaces to expansive outdoor areas.
High-Speed Measurement: Maximum measurement time of approximately 1 second for rapid distance readings.
Precision Accuracy: Resolution of 0.1 m ensures highly accurate and reliable measurements.
Safe Operation: 3 m blind zone prevents detection errors close to the laser sensor.
Low Power Consumption: The laser distance sensor operates at only 100 mA, ideal for long-term use and energy-efficient systems.
Durable Construction: Full-metal housing protects against impact, dust, and harsh environments.
Operating Temperature Range: The laser rangefinder sensor works reliably in temperatures from 0–50 °C, maintaining precise measurements in varying indoor and outdoor conditions.
Long Lifespan: Low-power design and robust materials ensure long-term stable performance.
Versatile Applications: The industrial laser distance sensor is perfect for industrial automation, logistics, warehouse management, outdoor measurement, and smart monitoring systems.
Compact and Reliable: Lightweight and sturdy, easy to integrate into various equipment or setups.

Size (unit: mm)

laser range sensor size

Application

Laser rangefinder sensor application

Tips: How should the laser range sensor be installed?

The laser distance sensor should be firmly installed on a stable surface using mounting screws or brackets. The laser emission window must face the target object directly, and the measurement path should remain free of obstacles. To achieve the best accuracy, it is recommended to minimize vibration, keep the laser sensor within the specified measurement range, and ensure proper alignment with the target surface.
