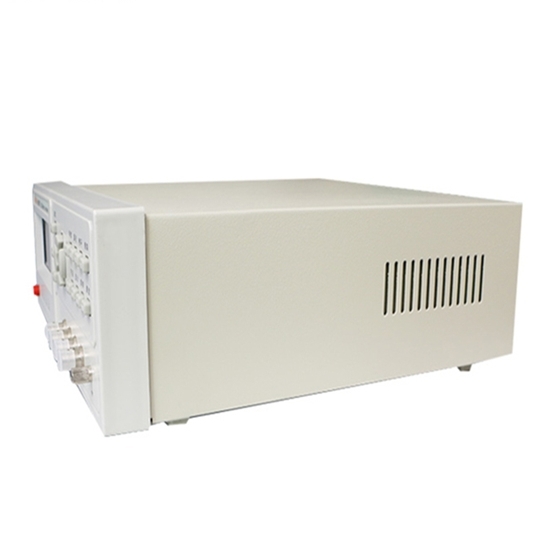

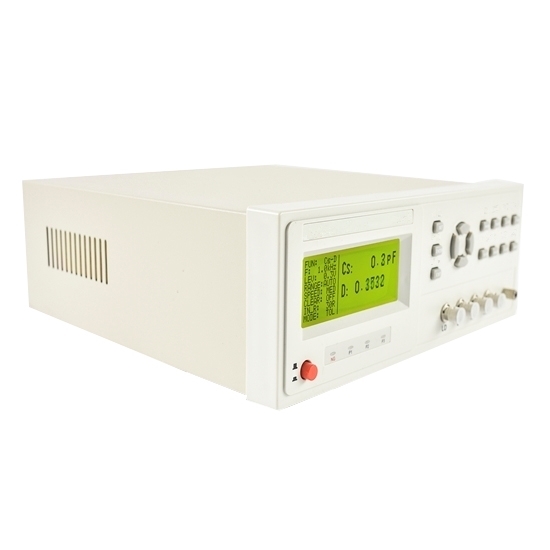

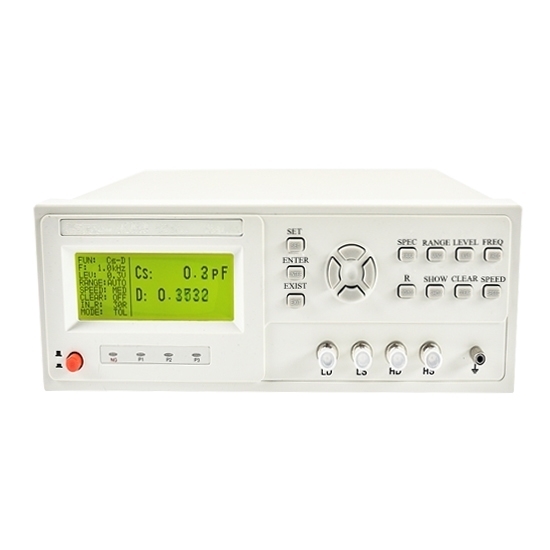

Digital LCR Meter, 50Hz~100kHz

Affordable price LCR meter. Frequency range can select 50Hz~100kHz or 100Hz~10kHz. Measure inductance (L) max. 99.999kH, capacitance (C) max. 99999µF, resistance (R) max. 99.999MΩ. Measurement accuracy up to 0.1%. Fast measurement speed and complete functions, suitable for various components.

SKU: CCHN-LCRM-5010

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Digital LCR meter adopts 192×64 dot-matrix graphic LCD display, 20 typical test frequencies from 50Hz to 100kHz. High measurement stability and accuracy, built-in comparator, 4-level sorting and level counting. Equipped with RS232C interface.

Specification

Model	CCHN-LCRM-2817B	CCHN-LCRM-2811C
Test Specifications	\|Z\|, C, L, R, D, Q	L-Q, C-D, R-Q, \|Z\|-Q
Test Frequency	50/60/80/100 120/200/400/500 800/1k/2k/4k/5k 80k/10k/20k/25k 40k/50k/100k	100Hz/120Hz/1kHz/10kHz
Test Level	0.1V, 0.3V, 1V
Basic Accuracy	0.1%	0.2%
Display Range	\|Z\|, R, X: 0.0001Ω—99.999MΩ C: 0.001pF—99999µF L: 0.001µH—99.999kH Q: 0.0001—9.9999 D: 0.0001—9.9999 Δ%: 99.999%—99.999%	\|Z\|, R: 0.0001Ω—99.999MΩ C: 0.01pF—99999μF L: 0.01µH—99999H D: 0.0001—9.9999 Q: 0.0001—9999.9
Measuring Speed	slow: 1.5 times/sec medium speed: 5 times/sec medium speed: 5 times/sec
Equivalent Circuit	series, paralle
Range Mode	auto, keep
Trigger Mode	internal, manual, external
Correction Function	open circuit, short circuit
Measuring End	5
Display Mode	direct reading, Δ%, grade and file count
Sorting	Four stalls (The third gear is qualified. One gear is unqualified.) There is another attached gear
Interface	RS232C
Working Temperature, Humidity	0℃~40℃, ≤90% RH
Power Requirements	198V~242V AC, 47.5Hz~52.5Hz power waste ≤50 VA
Certification	CE
Size (W×H×D)	308mm×105mm×310mm

Panel Details

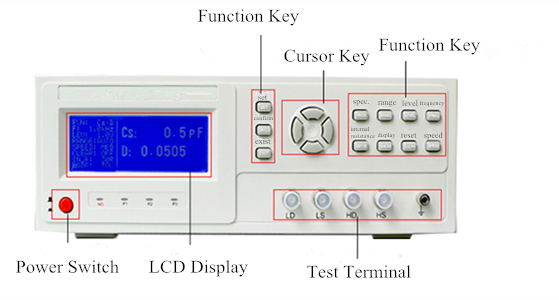

Panel Details of 50Hz~100kHz Digital LCR Meter

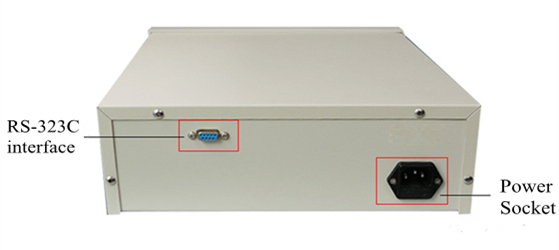

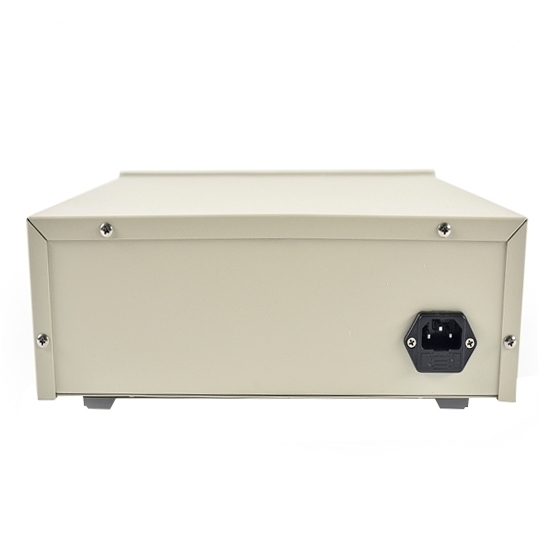

Panel Back Details of Digital LCR Meter, 50Hz~100kHz

Dimension Drawing

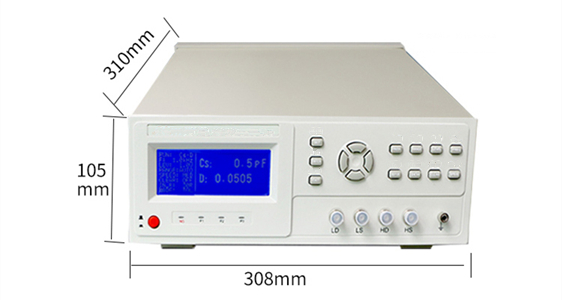

Dimension Drawing of Digital LCR Meter, 50Hz~100kHz

Tips: What is a digital LCR meter?

Digital LCR meter is also called digital LCR bridge or LCR tester. It can accurately and stably measure various component specifications, is a tester mainly used to test inductance (L), capacitance (C), and resistance (R). Digital LCR meter has two detection modes: series mode and parallel mode. The series mode is based on detection for component impedance Z, and the parallel mode is based on detection for component admittance Y. Digital LCR meter has the features of direct function and easy operation. It can meet test requirements of devices in production line quality assurance, incoming inspection, electronic repair and other industries with a lower budget.
