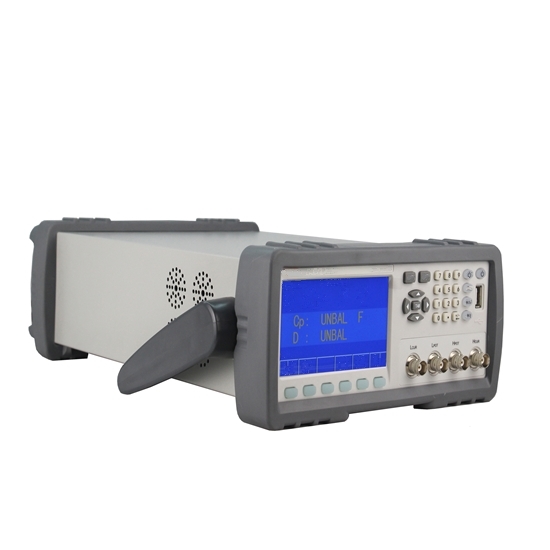

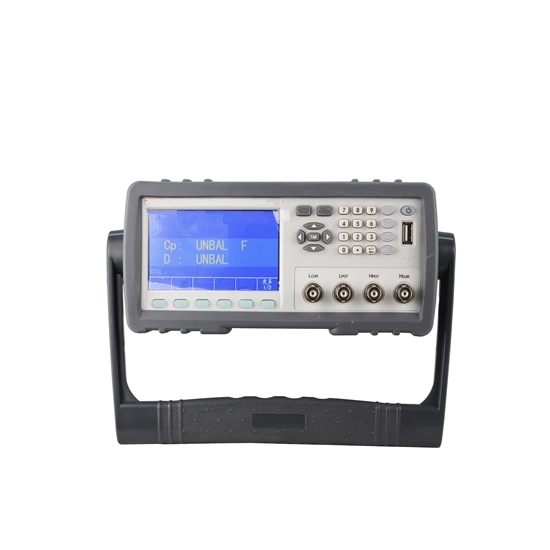

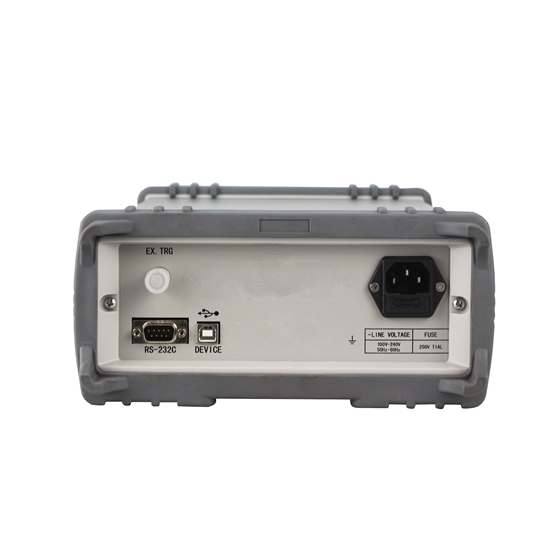

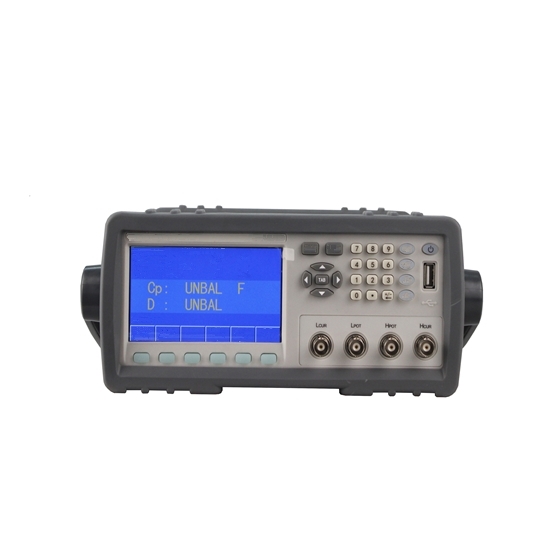

Digital LCR Meter, 50Hz~200kHz

Digital LCR meter for sale. Test frequency 50Hz~200kHz. Measure inductance (L) max. 9999.99H, capacitance (C) max. 9.9999F, resistance (R) max. 99.9999MΩ. Accuracy reach to 0.05%. It is can be used to all kinds of electronic components.

SKU: CCHN-LCRM-5020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Multi-functional precision digital LCR bridge with affordable price, equipped with 4.3-inch color TFT screen, 32-bit processor core. Test voltage or current automatic level control of ALC function, meet the demand of various occasions component parameter detection. It Is really a kind of high cost performance products tester.

Specification

Model	CCHN-LCRM-2816
Test Specifications	\|Z\|, \|Y\|, C, L, X, B, R, G, D, Q (deg), θ (Rad)
Test Frequency	50Hz~200kHz total of 37 frequency points
Basic Test Accuracy	0.05%
Equivalent Circuit	Series, parallel
Mathematical Function	Absolute value deviation, △%
Range Mode	Auto, Hold, manual
Trigger Mode	Internal, Manual, External, Bus
Measurement Speed (≥1kHz)	Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
Averaging Rate	1—255
Delay Time	time 0—60s, n 1 ms step by step
Correction Function	Open, short, load
Test Configuration	5 ports
List Sweep	4 points
Display Mode	Direct, Δ, Δ%, V/I (V/I monitor)
Display	6 resolution, 4.3 Inch LCD monitor
Output Impedance	30 Ω, 100 Ω selectable
Power Requirements	110V~240V
Test Level	Normal: 5mV－2V, Accuracy: 10%, with step of 1 mV Constant level: 10mV－1V, Accuracy: 5%, with step of 1mV
DC Bias Source	0V, 1.5V, 2V, Accuracy: 1% (customization)
Display Range	\|Z\|, R, X: 0.01mΩ—99.9999MΩ DCR: 0.001mΩ—99.9999MΩ \|Y\|, G, B: 0.00001µS—99.9999S C: 0.00001pF—9.9999F L: 0.00001µH—9999.99H D: 0.00001—9.9999 Q: 0.00001—9999.9 θ (DEG): -179.999º—179.999º θ (RAD): -3.14159—3.14159
Comparator Function	10 bins: 9 pass bin, 1 fail bin, AUX bin
Certification	CE
Memory	100 control setting memory for store/recall, Outside of 500
Interface	RS232C, USB HOST, USB DEVICE

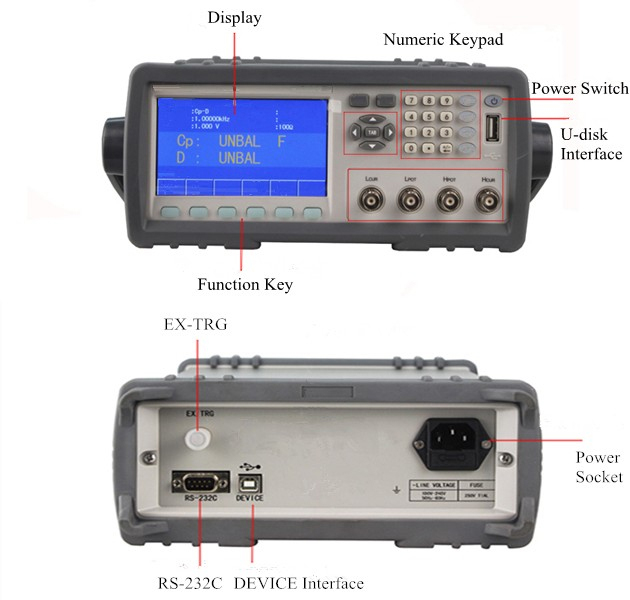

Panel Details

Panel Details of Digital LCR Meter, 50Hz~200kHz

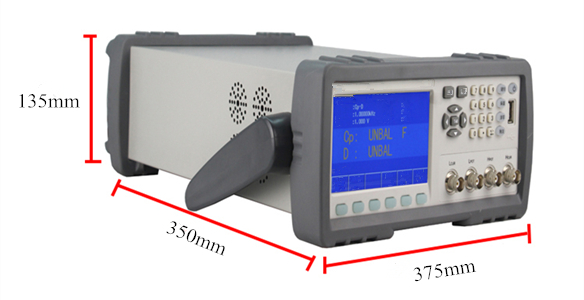

Dimension Drawing

Tips: Mode selection for LCR meter when measuring inductance.

Low impedance devices use series mode, the calculation accuracy will be high. Large impedance devices use parallel mode, the calculation accuracy will be high. If the impedance is greater than several hundred k or M, use parallel mode. In addition, when testing devices with small inductance and capacitance, increasing the test frequency appropriately can improve test accuracy. In practical applications of LCR meters, series mode is used more often.

Total impedance is greater than 10kΩ, use parallel mode.
Total impedance is less than 10Ω, use series mode.
Total impedance is between 10Ω and 10kΩ, measure according to measurement requirements of the LCR meter product manual.
