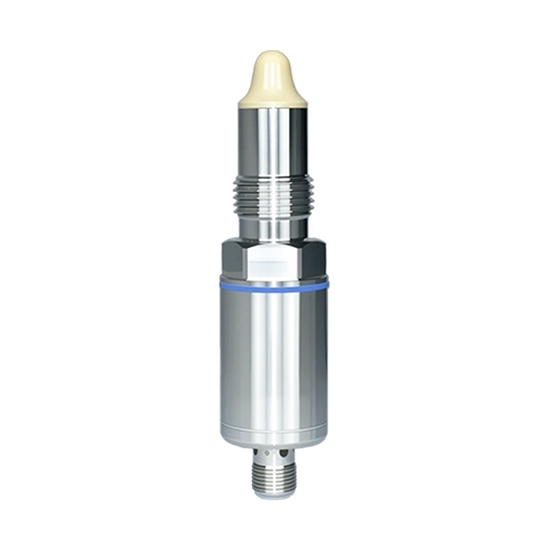

Capacitive Level Switch, Frequency Difference, G1/2"

Buy capacitive level switch for liquid level detection and control. Features frequency-difference sensing, diffusion silicon technology, and 316L stainless steel materials for reliable, long-term performance, ideal for industrial automation and process control systems.

Specification

Feature

• High Accuracy & Stability: The capacitive level switch provides precise and stable liquid level measurement with no moving parts, ensuring long-term reliability even in harsh working conditions.
• Durable Materials: Made from PEEK, 316L stainless steel, and 304 stainless steel housing, the capacitive liquid level switch offers excellent corrosion resistance and durability for industrial environments.
• Smart Technology: Equipped with an intelligent calibration system that automatically adjusts parameters, reducing manual setup and improving efficiency.
• Fast Response: Quick response time (≤100ms) and strong vibration resistance (10G/0–500Hz) make water level sensor switch ideal for dynamic liquid level applications.
• Multiple Protections: Reverse polarity, overload, and short-circuit protection ensure safe and stable operation of the device in complex industrial systems.
• Wide Compatibility: The capacitive level switch features a G1/2" process connection, M12*1 connector, and 18–30VDC power range for easy installation and flexible integration.
• IP67 Protection: Offers reliable waterproof and dustproof performance for demanding environments.
• Real-Time Monitoring: Supports continuous liquid level monitoring, providing instant feedback to optimize process control.

Detail

Connection

Application

Tips: What are the advantages of this capacitive level switch?

• No moving parts design: The capacitive level switch ensures long service life and eliminates mechanical wear or false triggering.
• High corrosion resistance: The 316L stainless steel housing combined with a PEEK sensing tip provides outstanding chemical resistance, ideal for corrosive or hygienic applications.
• High measurement stability: Utilizes frequency difference technology to deliver precise and reliable level detection, even when the dielectric constant of the medium changes.
• Excellent adaptability: The level switch works effectively with liquids, slurries, powders, and viscous materials, regardless of conductivity.
• Robust environmental protection: With IP67 rating, the switch maintains stable operation under moisture, dust, and temperature variations.
• Compact and hygienic design: Smooth surface and easy-to-clean structure meet food and pharmaceutical hygiene standards.
• Flexible installation options: The water level switch supports various process connections such as G1/2", or clamp types to fit different tanks and pipelines.
