Radar Level Transmitter for Corrosive Liquid, Non-contact, 0-10M

Radar level sensor is a non-contact measurement for measuring various corrosive liquids. The measuring range of the level sensor is 0 to 10 meters, with optional output signals: 4-20mA, RS485 or 4-20mA+HART, and power supply: DC 12-24V or AC 220V. Radar level transmitter consists of protection head with LCD display, waterproof connectors, internal radar antenna, and installation accessory.

SKU: CCHN-LEVS-RD901

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low price radar level transmitter for non-contact various corrosive liquid level measurement has maximum measuring range 0-10m, can transmit and output 4-20mA, HART or RS485 signal to remote control system. It has an IP67 protection class, has good dust and water resistance, and is suitable for outdoor or humid environments.

Specification

Model	CCHN-LEVS-RD901
Shipping Weight	3.5kg
Measuring Range	0-10m
Accuracy	±5mm (Range 5m), ±10mm (Range 10m)
Resolution	1mm
Display	LCD Display
Measured Interval	1s (according to parameter setting)
Adjustment Time	1s (according to parameter setting)
Microwave Frequency	26GHz
Output Signal*	4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*	DC 12-24V, AC 220V/50Hz
Material	Shell: Aluminum, Process Connection: 304 Stainless Steel
Pressure	-0.1 ~ 0.3MPa
Shock Resistance	10m/s², (10~150)Hz
Communication Protocol	Modbus
Medium	Various Corrosive Liquids
Storage Temperature	-40~+100℃
Process connection (antenna) temperature	-40~+150℃
Medium Temperature	-40~+130℃
Protection Class	IP67
Electrical Connection	2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*	G1-1/2"A thread, Flange
Warranty	12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimensions (Unit: mm)

Dimensions of radar level sensor

Installation

Radar level sensor 10m installation

Wiring

Radar level sensor 10m wiring

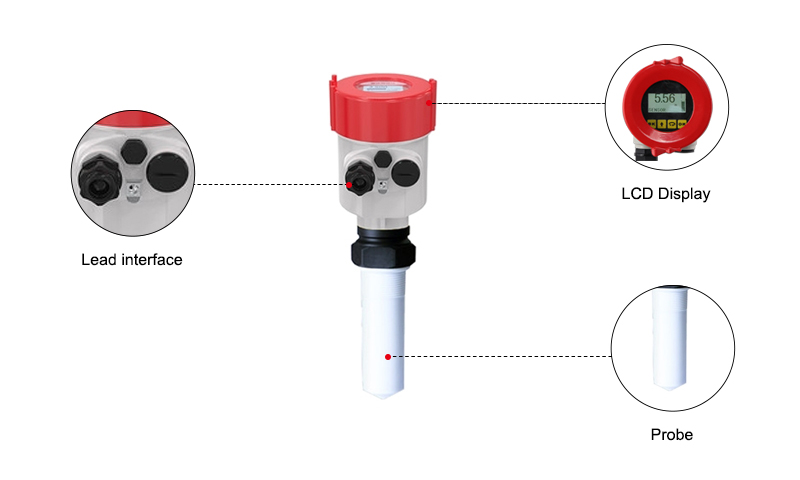

Details

Tips: Radar level sensor purchase guide

Understand the measuring medium: Choose a sensor suitable for liquids, slurries or solids.
Consider environmental conditions: Make sure the sensor can withstand the temperature, humidity and pressure of the working environment.
Choose the appropriate frequency: high frequency is suitable for high precision requirements or complex environments, and low frequency is suitable for conventional applications, combined with the adjustment needs of motors and pumps.
Installation location: Choose a location that is easy to install and maintain, and avoid interference sources.
Protection capability: Ensure that the sensor has sufficient protection level to adapt to harsh environments.
Compatibility: Ensure that the sensor is compatible with existing systems and supports common communication protocols.
Maintenance and debugging: Choose sensors that are easy to debug and maintain later, and provide debugging tools or software support.
