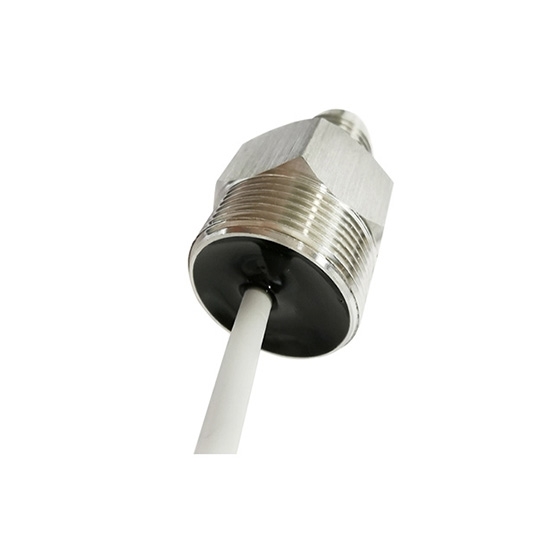

Photoelectric Liquid Level Sensor, Stainless Steel, PNP/ NPN

Photoelectric Liquid Level Sensor, Stainless Steel, PNP/ NPN

Stainless steel photoelectric level sensor, 1/4 NPT thread type, is NPN/ PNP signal output directly driving the relay. It is a kind of liquid level controller which detects with infrared ray to avoid inducting wrong action by interference of sun or light. The optical water level sensor is easy mounting and can be used in impure or adhesive liquid. The maximum current consumption of the liquid level sensor is less than 15mA, with low power consumption and fast response.

SKU: CCHN-MR-G14

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Photoelectric liquid level sensor can be widely applied in water purification, sewage treatment, electrical industry, hydraulic machinery and so on. It provides protection of antipole, overvoltage, short circuit and transient. This optical liquid level sensor has the functions of lack of liquid reminder and full liquid overflow prevention to ensure the safe operation of the equipment.

Specification

Model	CCHN-WIFS-IR2102D
Structure	Metallic structure
Type	Strong acid and strong alkaline type
Material	Stainless steel + glass
Signal Output	NPN/ PNP
Contact Form	NO/ NC
Action Mode	3 wire: Not switchable
Tread Type	1/4 NPT
Detected Object	Water/ Neutral solution/ Non-viscous acid-alkaline solution
Detection Accuracy	Less than plus or minus 1mm
Voltage	DC5-24V (including voltage fluctuation 10%)
Max Current Consumption	＜15mA
Load Current	below 100mA
Response Time	1ms, 0.25ms
Electrical Life	More than 100,000 times (opening and closing frequency: 1800 times/hour)
Environmental Illumination	Incandescent Lamp: 5000lx or less. Sunlight: 80,000lx or less
Environment Temperature	ON: -30~+100℃ OFF: -40~+120℃ (with no icing and frosting)
Insulation Resistance	above 20mΩ (500VDC)
Protection Level	IP62
Connection Method	Lead-out type (wire length 30cm)
Lead color definition	Red VDC; Blue GND; Yellow out
Mass (Sensor Only)	about 40g
Accessories	Sealing ring, nut

Dimensions (Units: mm)

Photoelectric Liquid Level Sensor Dimensions

3 Wire Signal Output and Circuit Diagram

Signal output and circuit diagram of photoelectric liquid level sensor

Mounting Method

Mounting Method of Photoelectric Liquid Level Sensor

Application

Applications of Photoelectric Liquid Level Sensor

Tips: What are the advantages of photoelectric liquid level sensor?

Accurate liquid level detection, high repeatability and fast response.
The output of liquid level is only related to whether the photoelectric probe contacts the liquid level, and has nothing to do with other characteristics of the medium, including temperature, pressure, density and electrical parameters, so the detection of the photoelectric liquid level switch is high accurate and repeatable.
It can be made into multi-point liquid level sensor.
Because the volume of photoelectric probe is relatively small, multiple photoelectric probes can be installed on a measuring body to make multi-point liquid level sensor and controller.
Strong adaptability to the environment.
Photoelectric level switch can be used in vacuum and pressure environment, flammable and explosive occasions, as well as special liquid environment such as turbulence, bubble, vibration and steam, etc., or used in combination with other sensors (such as pressure sensors, etc.).
It is suitable for special container installation.
The photoelectric probe can be installed separately in a small space and is suitable for special tank or container.
