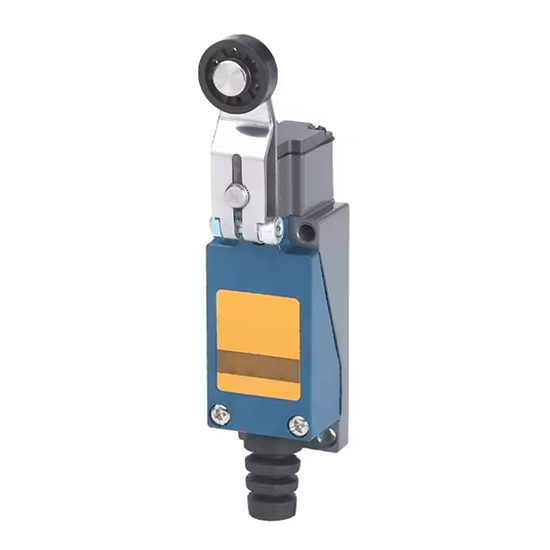

Micro Limit Switch, Coil Spring/Roller Lever/Plunger, 5A/250VAC

Micro Limit Switch, Coil Spring/Roller Lever/Plunger, 5A/250VAC

Micro limit switch for sale online, choosing from coil springs, roller levers, or plunger actuators to meet your specific application needs. The rated current of industrial limit switch is 5A, 250VAC, designed with an IP65 rating, providing normally open (NO) and normally closed (NC) contacts, providing flexibility for circuit design and application.

SKU: CCHN-LS-LZ801

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Mechanical micro limit switches are highly suitable for use in mechanical, robotic, and automation systems, providing precise control and reliable operation. It operates reliably within an ambient temperature range of -25℃ to +85℃.

Features

Industrial micro limit switch adopts a compact design, saving installation space, improving efficiency and extending service life.
The open terminal design makes wiring more convenient.
Its protection level reaches IP65, and the dustproof, waterproof and oil-proof structure ensures reliable operation even in harsh environments.
The dual-circuit design of the micro limit switch improves the reliability and safety of electrical connections.
Its aluminum alloy body and plastic shell provide high mechanical strength.
Micro limit switches are widely used in handling machinery, machine tools and automation systems.
The micro limit switch has CE and CCC certifications and meets international quality and safety standards.

Specification

Model		CCHN-LZ8
Rating		5A 250VAC 0.3A 220VDC
Initial contact resistance		25mΩ max.
Initial insulation resistance		100 mΩ min. (at 500VDC)
Dielectric strength	Between non-consecutive terminals	1000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	1500Vrms, 50/60Hz for 1 min
	Between ground and each terminal	1500Vrms, 50/60Hz for 1 min
Shock resistance	Mechanical durable	1000m/s² max.
	Malfunction	300m/s² max.
Vibration resistance		10-55Hz, 1.5mm double amplitude
Operating life	Mechanical life	1,000,000 times min.
	Electrical life	200,000 times min.
Ambient temperature		-25℃ to +85℃
Ambient humidity		95%RH max.
Operating frequency	Mechanical	120 times/min
	Electrical	30 times/min
Operating speed		5mm-0.5m/s
Protection degree		IP65

Actuator Operating Characteristic

Model	LZ8104 (Plastic roller lever)	Model	LZ8112 (Roller plunger)
O.F. max.	750g (7.35N)	O.F. max.	900g (8.82N)
R.F. min.	100g (0.98N)	R.F. min.	150g (1.47N)
P.T. max.	20°	P.T. max.	1.5mm
O.T. min.	50°	O.T. min.	4.0mm
M.D. max.	10°	M.D. max.	1.0mm
---	---	O.P.	37±0.8mm
Model	LZ8167 (Coil spring rod)	Model	LZ8169 (Coil spring wire)
O.F. max.	150g (1.47N)	O.F. max.	150g
P.T. max.	30mm	P.T. max.	30mm

OF: Operating Force
RF: Release Force
PT: Pre-Travel
OT: Over Travel
MD: Movement Differential
OP: Operating Position
FP: Free Position

Contact Form

Micro limit switch contact form

Actuators

Micro limit switch plastic roller lever

LZ8104 (Plastic roller lever)

Micro limit switch roller plunger

LZ8112 (Roller plunger)

Micro limit switch coil spring rod

LZ8167 (Coil spring rod)

Micro limit switch coil spring wire

LZ8169 (Coil spring wire)

Tips: Wiring steps of micro limit switch

Loosen the cover screws and remove the cover.
Crossing the lead wire through rubber connector on the cover.
Loosen the switch terminal screws and insert terminals on lead wire side into the right switch terminals and fasten the terminal screws.
Installing the rubber connector into the cover and then install the cover. Make sure the rubber sealing strip around the cover on the right position.
Fasten the cover screws.
