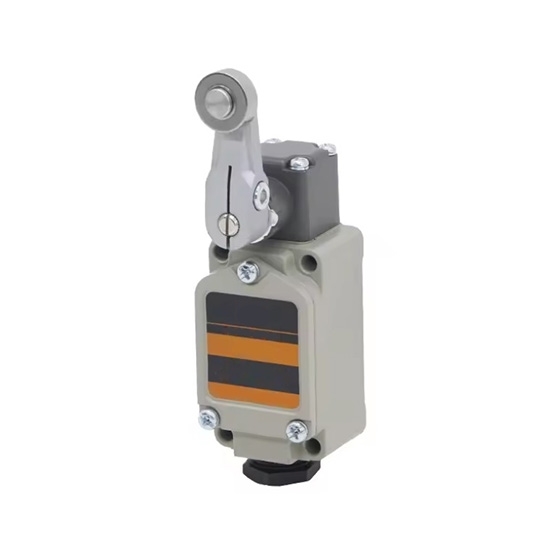

Mini Limit Switch, Adjustable Rod Lever/Roller Lever, 10A/250VAC

Mini Limit Switch, Adjustable Rod Lever/Roller Lever, 10A/250VAC

Mini limit switches for sale online offer a choice between adjustable rod lever or roller lever options to suit specific application requirements. Compact limit switch features a rated current of 10A at 250VAC and are designed with an IP66 rating, ensuring protection against dust and water ingress. The electric limit switch includes normally open (NO) and normally closed (NC) contacts, providing flexibility for circuit design and application.

SKU: CCHN-LS-WL

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Compact limit switch is widely used in mechanical equipment, automation systems, and industrial machinery for precise control of motion position and safety monitoring. It is suitable for a variety of industrial environments with temperatures ranging from -10°C to +80°C and humidity ranging from 35% to 95%RH.

Features

Its double circuit switch is widely employed across various industries.
Mini limit switch boasts high mechanical strength due to its aluminate alloy casing.
Its design features dustproof, waterproof, and oilproof capabilities.
Compact limit switch offers a selection of actuators suitable for diverse environmental conditions.
Miniature limit switch finds extensive application in machine tool equipment, plastic injection machines, and other industrial machinery.

Specification

Model		CCHN-WL
Rating		10A 250VAC
Initial contact resistance		25mΩ max.
Initial insulation resistance		100mΩ min. (at 500VDC)
Dielectric strength	Between non-consecutive terminals	1000Vrms, for 1 min
	Between non-current carrying metal parts and each terminal	2200Vrms, 50/60Hz for 1 min
	Between ground and each terminal	2200Vrms, 50/60Hz for 1 min
Shock resistance	Mechanical durable	1000m/s² max.
	Malfunction	300m/s² max.
Vibration resistance		10-55Hz, 1.5mm double amplitude
Operating life	Mechanical life	1,000,000 times min.
	Electrical life	100,000 times min.
Ambient temperature		-10℃ to +80℃
Ambient humidity		35% to 95%RH max.
Operating frequency	Mechanical	120 times/min
	Electrical	30 times/min
Operating speed		1mm-1m/s
Protection degree		IP66

Actuator Operating Characteristic

Model	WL-C11 (Adjustable Rod Lever)	Model	WL-C21 (Roller Lever)
O.F. max.	142g	O.F. max.	1360g
R.F. min.	28g	R.F. min.	227g
P.T. max.	15°±5°	P.T. max.	15°±5°
O.T. min.	30°	O.T. min.	30°
M.D. max.	12°	M.D. max.	12°

OF: Operating Force
RF: Release Force
PT: Pre-Travel
OT: Over Travel
MD: Movement Differential

Mounting Holes Dimensions (mm)

Mini limit switch dimenision

Actuators

Mini limit switch adjustable rod lever

WL-C11 (Adjustable Rod Lever)

Mini limit switch roller lever

WL-C21 (Roller Lever)

Tips: Applications of mini limit switches

Automated production lines: Used to detect and control the position and movement of machinery, ensuring accuracy and efficiency in manufacturing processes.
Robotic arms and robots: Serve as safety switches and position detectors, ensuring precise positioning and safety during operations.
Conveyor systems: Used to detect the position of conveyors or the arrival of objects, triggering operations or stops as needed.
Access control and safety systems: Used as safety switches to ensure that doors or valves operate safely when in specific positions.
Electrical equipment and control panels: Used to control the start, stop, or position of electrical equipment, ensuring the proper operation of circuits and safety.
Automation equipment and mechanical systems: Serve as critical position sensors and safety switches, ensuring that equipment operates in designated positions and states to prevent damage or accidents.
