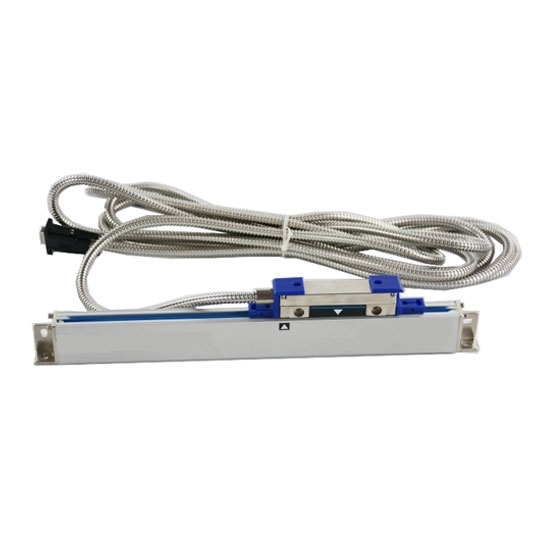

Linear Scale, 2000mm/80 inch, 3200mm/126 inch Stroke, 5 Micron

Linear Scale, 2000mm/80 inch, 3200mm/126 inch Stroke, 5 Micron

Low price linear scale stroke 50mm, 100mm, 600mm, 800mm, 1000mm , 2000mm, 3000mm are optional. Resolutions 0.5 µm, 1 µm or 5 µm. Signal output and plug types can be 9 PD TTL, 15 PD TTL, or 9 PD RS422. Good seismic performance and fast speed.

SKU: CCHN-LS-WTB

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High speed linear scale length is 50mm/2", 1200mm/48", 2000mm/78", (or choose other stroke). Resolution can select 0.5 um, 1 um or 5 um, signal output types also available. Factory direct sales.
After purchasing one CCHN linear scale, you can buy a digital readout for milling machine, lathes or table saw fence.

Specification

Model	CCHN-LS-WTB
Resolution	0.5 µm	1 µm	5 µm
Speed	30m/min	60m/min	90m/min
Effective Movement Length	50-1000mm, (2"-40")	50-3000mm (2"-118")
Precision	±（3+3L0/1000) µm (or even higher)
Output Signal	TTL or RS422
Grating Pitch	20 µm
RI	There is an RI every 50mm (1.9")
Nominal Length	When L0=50~1000mm, it is one file every 50mm
	When L0=1000～3000mm, it is one file per 100mm.
Maximum Stroke Within 1000mm	Scale Length: 3.5m (11 feet)
Maximum Stroke Within 1000-1500mm	Scale Length: 5.0m (16 feet)
Maximum Stroke above 1600mm	Scale Length: 10m (32 feet)
Thickness	21mm （0.8"）
IP Rating	54
Working Voltage	5±0.25V
Work Waste	Max, 5V, 40mA
Reserving Temperature	0-50℃
Working Temperature	0-40℃

Dimensions (Unit: mm)

linear scale WTB dimension

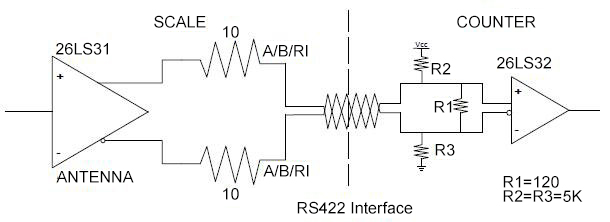

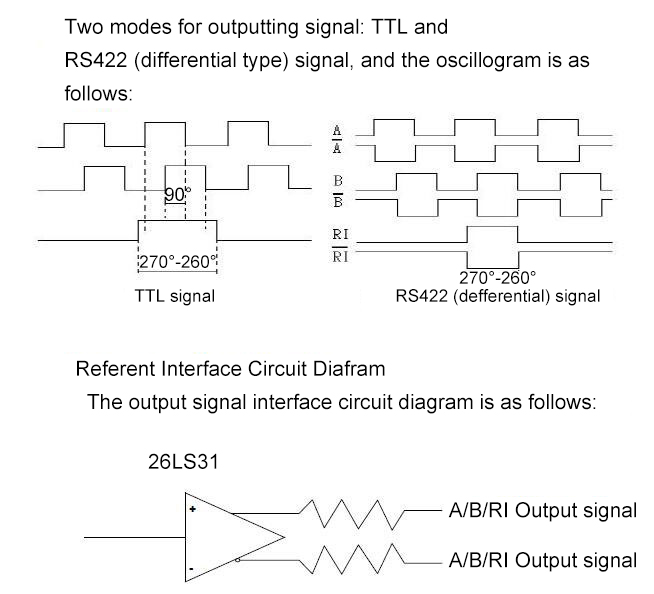

Linear Scale Output Signal

Linear Encoder Plug Types
