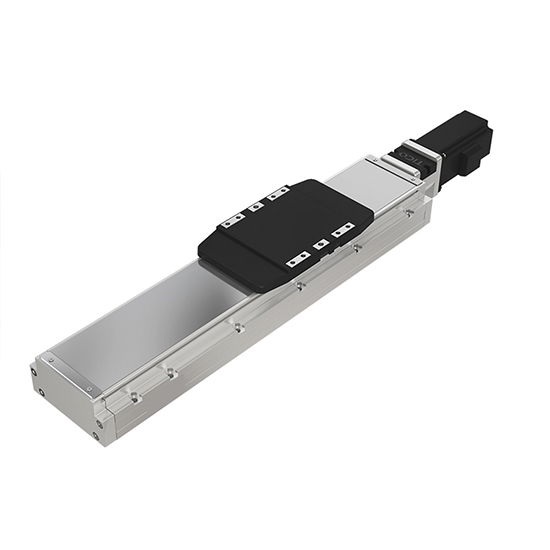

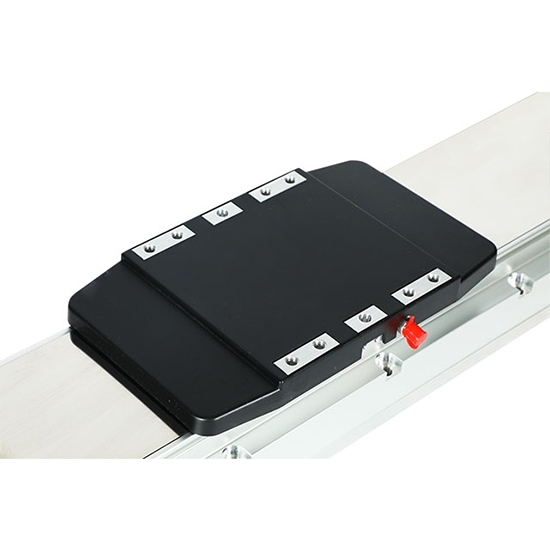

100~1250mm Ball Screw Driven Linear Slide, Ф16mm

100~1250mm Ball Screw Driven Linear Slide, Ф16mm

Linear slide guide rail is driven by Ф16mm ball screw and 400W motor. Stroke can select from 100mm to 1250mm, maximum speed 1600mm/s, optional screw path 5/10/20/32mm. Guide rail, coupling, motor and sensor form the linear motion system, good price and easy assembly.

SKU: CCHN-LS-125016

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The liner slide table is a linear motion system consist of guide rail, slide block, servo motor (400W, optional) and sensor. Ball screw diameter 16mm, stroke 100mm~1250mm for selection, screw path 5/10/20/32mm.

Basic Specification

Model		CCHN-ATH12
Stroke		100mm~1250mm (100mm pitch)
Ball Screw Diameter		16mm
Repeatability Accuracy		± 0.01mm
Ball Screw Lead		5mm	10mm	20mm	32mm
Max. Speed		250 mm/s	500 mm/s	1000 mm/s	1600 mm/s
Max. Payload	Horizontal	110 kg	88 kg	40 kg	30 kg
	Vertical	33 kg	22 kg	10 kg	8 kg
Rated Thrust		1388 N	694 N	347 N	218 N
Matching Servo Motor Power*		400W
Coupling		10*14mm
Home Sensor	Outside	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	Ball Screw Lead (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	Ball Screw Lead (mm)	Horizontal	Vertical	Max. Speed (mm/s)	100	200	300	400	500	600	700	800	900	1000	1100	1200	1250
CCHN-ATH12	120	5	110	33	250	-	-	-	-	-	-	-	250	200	167	150	125	117
		10	88	22	500	-	-	-	-	-	-	-	500	400	333	300	250	233
		20	40	10	1000	-	-	-	-	-	-	-	1000	800	667	600	500	467
		32	30	8	1600	-	-	-	-	-	-	-	1600	1280	1067	900	800	747

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

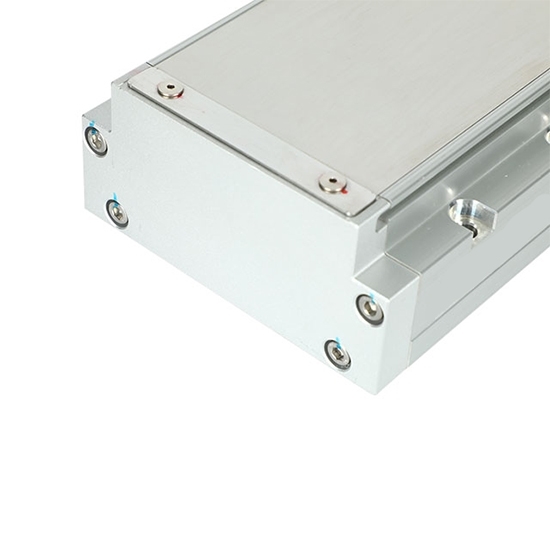

The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
Linear slide guide rail is compact, lightweight, space-saving and high-load.
The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

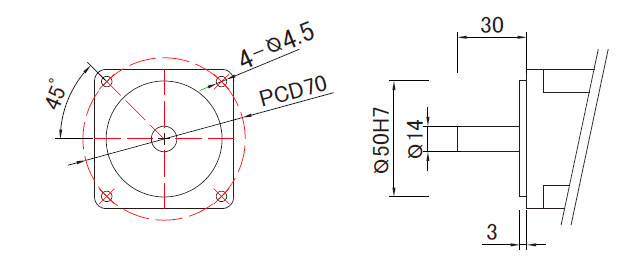

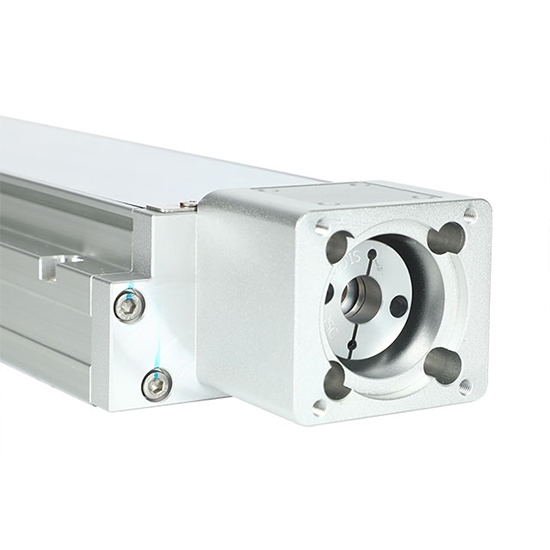

Motor Mounting Dimensions (Unit: mm)

400W linear slide motor mounting dimensions

Motor Power	Motor Size	Shaft Diameter
400W	60mm	14mm
