Shackle Load Cell, 2 ton/12 ton/55 ton/120 ton to 150 ton

Heavy-duty shackle load cell with 2 ton, 12 ton, 55 ton, 120 ton to 150 ton capacity options for crane weighing, wire rope tension monitoring, lifting safety, and industrial load measurement. Featuring high accuracy, wireless transmission, anti-side-load performance, and durable alloy steel construction for harsh working environments.

SKU: CCHN-LC-S002

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Industrial shackle load cell for sale, an integrated weighing and load-bearing solution for dynamic force monitoring, engineered for direct replacement of traditional shaft pins in lifting equipment, reducing mechanical complexity while enhancing operational efficiency and long-term structural reliability.

Specification

Model	CCHN-DYZX-002
Capacity	0–150 ton
Rated Output Sensitivity	2.0/3.0±0.05mV/V
Zero Balance	±1%F.S.
Non-linearity	0.1%F.S.
Hysteresis	0.03%F.S.
Repeatability	0.1%F.S.
Creep (30 min)	0.03%F.S.
Temperature Effect on Sensitivity	0.05%F.S./10°C
Temperature Effect on Zero Balance	0.05%F.S./10°C
Response Frequency	10kHz
Material	Alloy steel
Impedance	7002
Insulation Resistance	>5000MQ/100VDC
Excitation Voltage	5-15v
Operating Temperature Range	-20-60°C
Safe Overload	150%
Ultimate Overload	200%
Wireless Transmission Distance	200m(obstacle-free)
Battery Life	6 hours

Feature

Wide Capacity Range: Available in capacities from 2 ton to 150 ton, suitable for crane systems, hoisting equipment, pulley assemblies, and industrial load monitoring applications.
High Accuracy Load Measurement: Shackle load cell is built with precision sensing technology featuring excellent repeatability, low hysteresis, and stable zero balance for reliable force measurement.
Superior Resistance to Side Load and Torsion: Specially engineered to withstand eccentric loads, twisting forces, and long-term fatigue in harsh industrial operating environments.
Integrated Structural Replacement Design: Wireless shackle load cell functions as both a load-bearing shaft and a weighing sensor, reducing additional mechanical components and simplifying installation.
Durable Alloy Steel Construction: Manufactured from high-strength alloy steel to ensure long service life, impact resistance, and dependable performance under heavy-duty conditions.
Wireless Monitoring Capability: High precision shackle load cell supports wireless transmission up to 200 meters in open environments, enabling convenient remote load monitoring and safer operations.
Fast Dynamic Response: With a response frequency of 10kHz, the sensor can quickly capture changing load conditions in real-time lifting applications.
Reliable Performance in Industrial Environments: CCHN shackle load cell is designed for operation in temperatures from -20°C to 60°C, making it suitable for outdoor construction sites, ports, and industrial facilities.
Rechargeable Portable System: Equipped with a Type-C charging interface and rechargeable battery supporting up to 6 hours of continuous operation.

Detail

Shackle load cell details

Size (unit: mm)

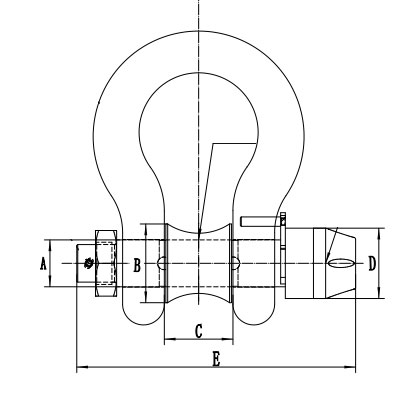

Shackle load cell size

Measuring Range (ton)	A	B	C	D	E
2	Φ16	Φ25	20.6	Φ64	125
3.25	Φ19.1	Φ35	26.9	Φ64	140
4.75	Φ22.4	Φ35	31.8	Φ64	157
6.5	Φ25.4	Φ38	36.6	Φ64	168
8.5	Φ28.7	Φ48	42.9	Φ64	197
9.5	Φ31.8	Φ58	46	Φ64	205
12	Φ35.1	Φ64	51.6	Φ64	209
13.5	Φ38.1	Φ66	57.2	Φ75	240
17	Φ41.4	Φ75	60.5	Φ75	260
25	Φ50.8	Φ85	73.2	Φ75	300
35	Φ57.2	Φ95	82.6	Φ100	325
55	Φ70	Φ115	104.9	Φ100	380
85	Φ83.8	Φ150	127	Φ140	520
120	Φ95.5	Φ170	133.4	Φ150	580
150	Φ108.2	Φ190	139.7	Φ150	600

Application

Shackle load cell is widely used in heavy-duty lifting and weighing applications, including port container handling, dock cranes, overhead cranes, tower cranes, rack and pinion construction hoists, and sluice gate systems. Designed for harsh industrial environments, this shackle load cell offers high resistance to side loads, excellent anti-fatigue performance, stable weighing accuracy, and reliable long-term operation for cranes, hoists, and industrial lifting equipment.

Shackle load cell application

Tips: How does shackle load cell improve lifting system efficiency?

By combining load-bearing and weighing functions into one compact component, the shackle load cell reduces the number of mechanical parts required in the system. This not only simplifies equipment design and maintenance but also improves installation efficiency and operational reliability.
