Load Cell Transmitter, Output 0-5V/0-10V/4-20mA

Load cell transmitter is made of aluminum alloy, output standard signal 0-5V/0-10V/4-20mA, has linear compensation, humidity compensation, external zero debugging, external span debugging, input overload protection and output short circuit protection functions.

SKU: CCHN-LCTR-OA

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Load cell transmitter has external zero debugging and external span debugging functions, output standard signal 0-5V/0-10V/4-20mA.

Specification:

Model	CCHN-LCTR-DY510
Accuracy	±0.05%FS
Input signal	0-20mV
Excitation voltage for load cell	5V
Output signal (DC) *	0-±5V/0-±10V/4-20mA
Power supply	DC 18-30V

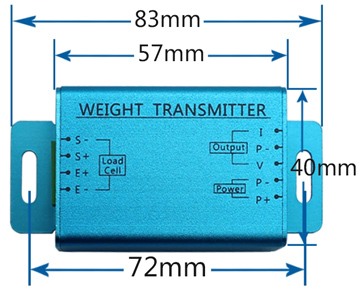

Load cell transmitter dimension drawing:

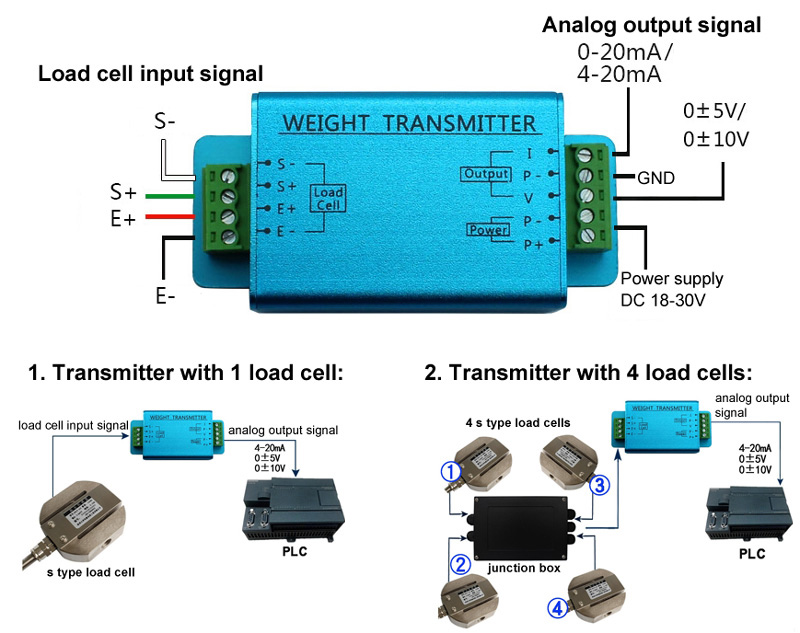

Load cell transmitter wiring diagram:

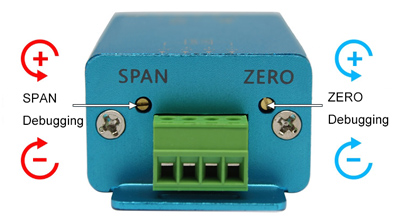

Load cell transmitter span debugging and zero debugging

Load cell transmitter span debugging and zero debugging
