6-8 mm (0.23" - 0.31") 3 Point Inside Micrometer

Buy a 3 point inside micrometer online. The provided internal micrometer with equipped with a 150 mm extension rod, 6~8 mm (0.23 to 0.31 inch) measuring range and 0.005 mm resolution, ideal for the precision measurement of blind holes and through holes.

Features

• Inside micrometer is suitable for the precision measurement of blind holes and through holes.
• 3 point inside micrometer is equipped with a 150 mm extension rod, which can measure the size of deep holes easily and conveniently.
• Clear graduations laser-etched on a satin chrome finish for easy reading. Highly durable because of carbide-tipped measuring surfaces. Spindle hardened ground and lapped for ultimate accuracy.
• 6~8 mm internal micrometer built-in force limiter ensures accurate and repeatable readings.

Specifications

• Model: CCHN-SHAN-68
• Range: 6~8 mm
• Types: 3 Point Inside Micrometer
• Material: Bearing Steel
• Measurement Type: Internal Diameter Measurement
• Resolution: 0.005 mm
• Extension Rod Length: 150 mm
• Scale Process: Laser Scale
• Accuracy: 0.004/0.005 mm
• Package: Plastic Box

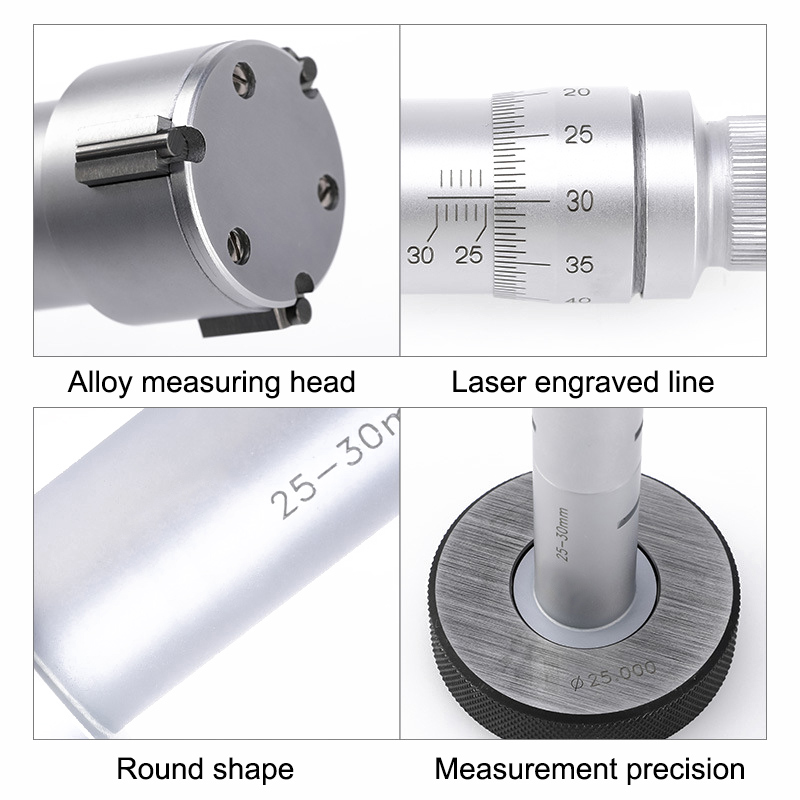

Details

Applications

The inside micrometer is an instrument for the accurate linear measurement of the diameter, thickness, length and other dimensions of solids. 3 point internal micrometer is mainly used to measure internal dimensions such as the internal diameter of a hole or a tube and is widely used in mechanical engineering, machining and most mechanical industries.

Tips: Maintainance of the Inside Micrometer

• Please check whether the zero line of the inside micrometer is accurate.
• When measuring, the measured surface of the workpiece should be wiped clean.
• When the workpiece is large, it should be measured on a V-shaped iron or a flat plate.
• Before using an internal micrometer to measure, the measuring rod and anvil need to be wiped clean.
• Do not loosen the back cover to avoid changing the zero line.
• Do not add ordinary engine oil between the fixed sleeve and the movable sleeve.
• After using the 3-point inside micrometer, wipe it clean and oil it, put it in a special box and put it in a dry place.
