3/8" NPT Brass Needle Valve, DN10

Note: This needle valve cannot be used for drinking water.

Get a brass needle valve online, 2-way needle valve with 3/8 inch thread. The high pressure brass needle valve is made of high-grade solid brass, exquisite processing, which can withstand greater pressure than other types of valves.

Features

• Smooth and accurate flow control
• Reliable leak tight shut off
• High pressures up to 1000 psi
• Wide temperature range from -20 up to 200°C.
• Suitable for a wide variety of media and applications
• Application: such as oil refining, chemical industry, pharmaceuticals, petroleum, scientific experiments, electrical engineering devices and instrument measurement pipelines as an advanced connection valve.

Specification

• Model: CCHN-BNV-FFB0308
• Size: 3/8 inch NPT
• Nominal diameter: DN10
• Material: Brass
• Max. pressure: 1000 psi
• Working temperature: -20~200℃
• Connection: Male, female, double ferrule, flare
• Medium: Gas, Oil, Water

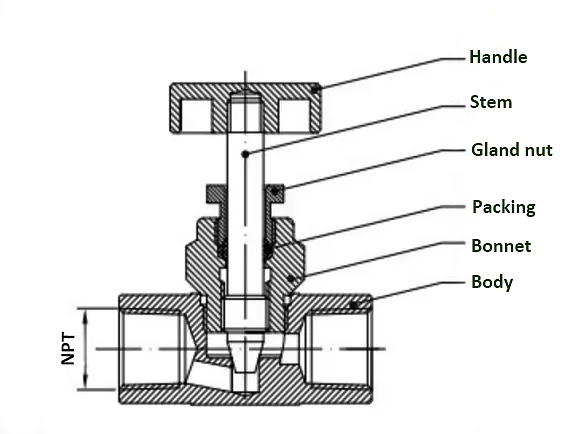

Brass Needle Valve Structure

Brass Needle Valve Application

Tips: What is the difference between a ball valve and a needle valve?

Ball valves are designed for on-off operation. Avoid extended periods of throttled operation. Needle valves offer flexible flow control options with designs allowing on-off, throttling, and fine metering operation depending on your needs.
