3/4 inch Stainless Steel Needle Valve, DN20

3/4 inch Stainless Steel Needle Valve, DN20

Cost-effective 2-way stainless steel needle valve with G3/4"/ 3/4"NPT thread, DN20 connection thread size, working pressure ≤420 bar, 6000 psi max. pressure. The pin valve is made of high-quality materials and robust construction which is suited for the transmission of water, gas, oil, fuel, and other media.

SKU: CCHN-NV-DN20

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This needle valve cannot be used for drinking water.

High-pressure steel needle valve with 3/4 inch thread, DN20 connection thread size, max pressure 6000 psi, wide temperature range from -20 up to 180°C. The 2-way needle valve is widely used in the alloy industry, machinery industry, food processing, industrial production, agricultural machinery, and food oil temperature measurement industry.

Specification

Model: CCHN-NV-DN20
Size: 3/4 inch
Connection thread size: DN20
Needle valve diameter: 10mm
Nominal pressure: 41 MPa
Material: 304 stainless steel
Working pressure: ≤420 bar
Working temperature: -20~180℃
Installation method: Screw connection
Medium: Gas, liquid

Features

Smooth and accurate flow control
With a very compact design and reliable leak tight shut off
High pressures up to 6000 bar
Wide temperature range from -20 up to 180°C.
Suited for aggressive fluids thanks to the 304 stainless steel

Dimension

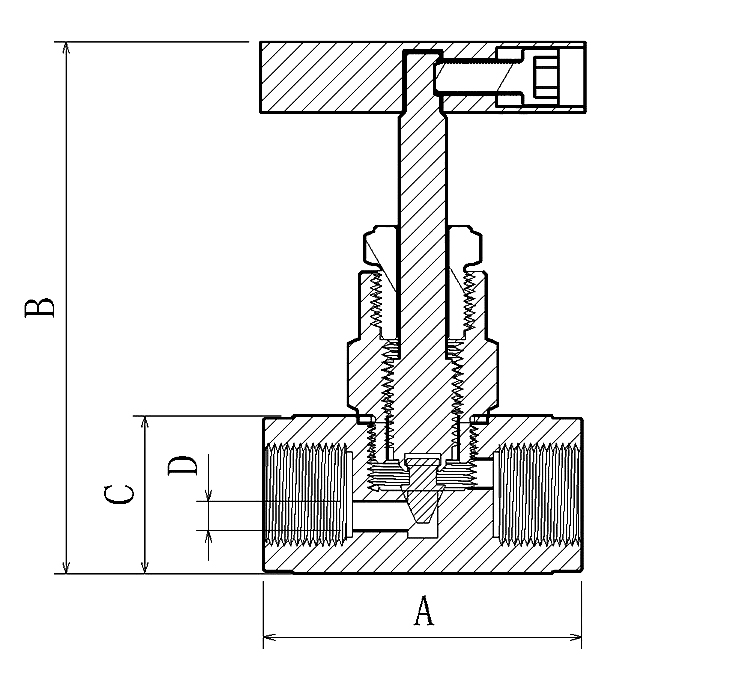

Stainless steel needle valve dimension

Model	A	B	C	D
CCHN-NV-DN20	66mm	100mm	35mm	10mm

Stainless Steel Needle Valve Application

Stainless steel needle valve application

Tips: Does a needle valve control pressure or flow?

Needle valves are commonly used to control flow and protect delicate gauges from damage caused by sudden pressure surges of liquids and gases. The high-pressure needle valve is ideal for systems using lighter and less viscous materials with low flow rates.
