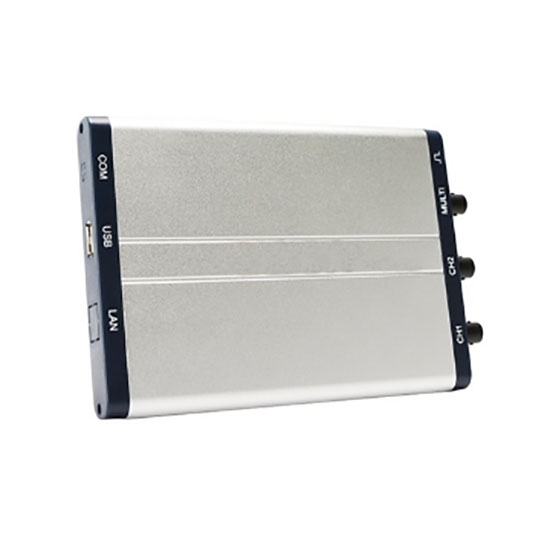

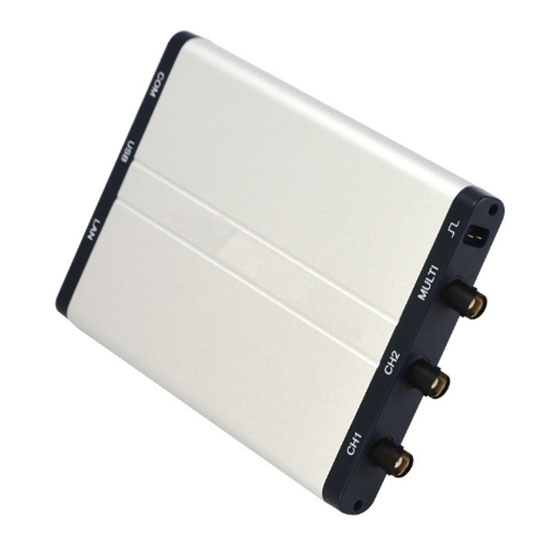

60 MHz PC Based Oscilloscope, Dual Channel, 1 GSa/s

60 MHz PC Based Oscilloscope, Dual Channel, 1 GSa/s

Cheap price high-accuracy PC-based oscilloscope with 2-channel, 60 MHz bandwidth, 1 GSa/s sampling rate, USB 2.0 or USB 2.0 with LAN network port 2 communication interfaces can be chosen. PC oscilloscope with less signal inference, more PC protection USB bus powering Ultra-thin body design, easy portability.

SKU: CCHN-PBO-60

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The dual-channel 60 MHz PC oscilloscope with 1 GSa/s sampling rate, 8 bits vertical resolution. PC oscilloscopes use high-performance modular hardware combined with efficient and flexible software to complete various test, measurement and automation applications.

Specification

Model	CCHN-VDC-2062	CCHN-VDC-2062L
Communication Interface	USB2.0	USB 2.0 (with LAN network port)
Bandwidth	60 MHz
Channel	2 Channel+ Multi
Sample Rate	1 GSa/s
Max. Input Voltage	40V(DC + AC peak)
Horizontal Scale (s/div)	5ns/div - 100s/div, step by 1 - 2 - 5
Record Length	5K
Input Impedance	1MΩ ± 2%, in parallel with 10pF ± 5pF
Vertical Sensitivity	5mV/div - 5V/div
Vertical Resolution	8 bits
Trigger Type	Edge, Pulse, Video, Slope, and Alternate
Automatic Measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Waveform Math	+, -, *, /, FFT
Power Supply	≤6.5W
*Dimension (W H * D)**	190* 18* 120mm
Weight	0.26 kg

Accessories

Power cord
CD rom
USB cable
Probe
Probe Adjust
Multimeter lead
Adapter
User manual
5V, 1KHz Output
Capacitance Ext Module
Soft Bag
Metal Case (optional)

Dimension (mm)

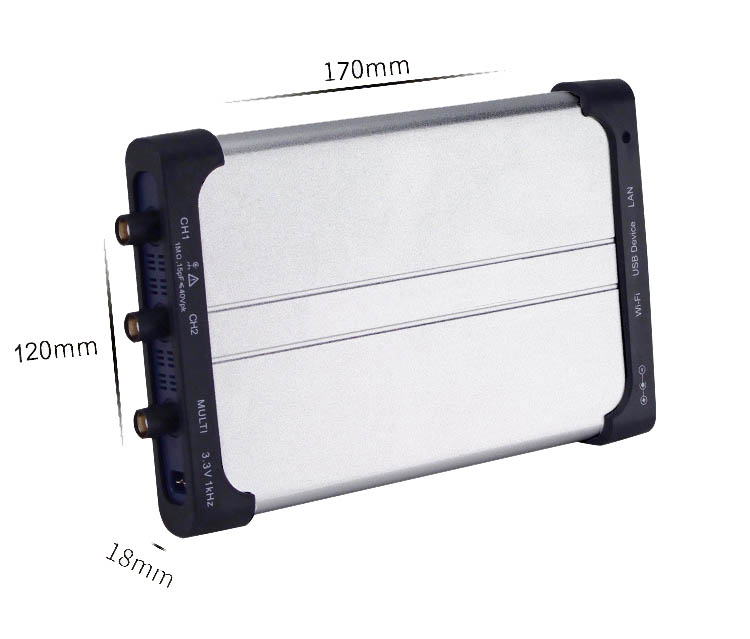

PC based oscilloscope dimension

Tips: What is an oscilloscope?

The oscilloscope is a kind of electronic testing instrument which is widely used. It can convert electronic signals invisible to the human eye into visible images, which is beneficial for us to study the transformation process of various electrical phenomena. The oscilloscope uses a narrow electron beam composed of fast electrons to hit the screen coated with fluorescent components to form a small spot. Under the function of the signal under test, the electron beam is like the tip of a pen, which can draw the transition curve of the instantaneous value of the signal under test on the screen. The oscilloscope can be used to view the waveform curves of various signal amplitudes changing with time, and it can be used to detect various electric quantities, such as voltage, current, frequency, phase difference, amplitude modulation, etc.
