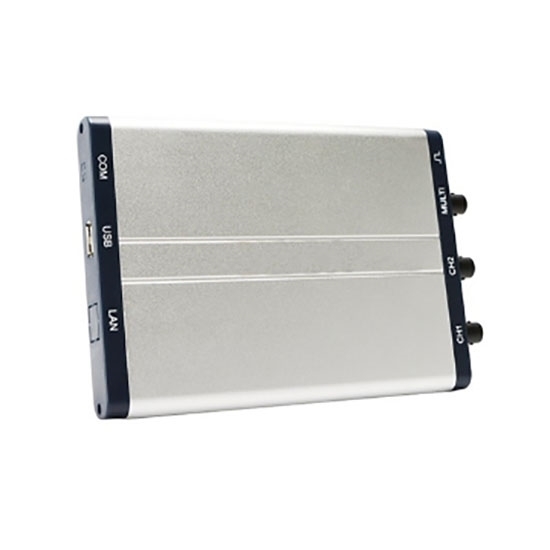

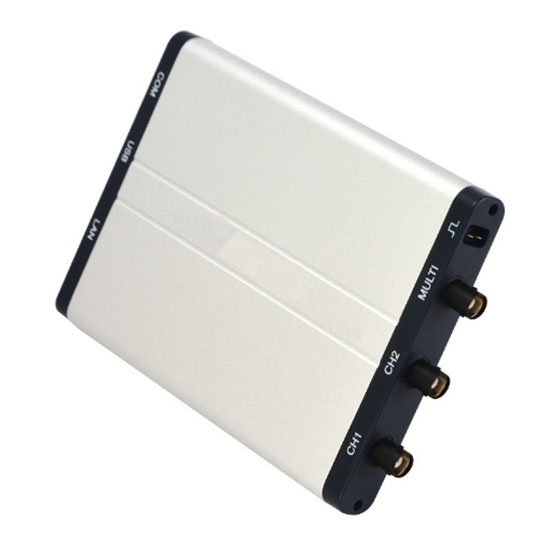

60 MHz PC Based Oscilloscope, Four Channel, 1 GSa/s

60 MHz PC Based Oscilloscope, Four Channel, 1 GSa/s

Four-channel PC oscilloscope with 25 MHz bandwidth, 100 MSa/s sampling rate, storage depth of 5M, with great industrial design, the high-quality anodized aluminum case is extremely durable and heat-resistant.

SKU: CCHN-PBO-60F

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The 60 MHz PC oscilloscope with 100 MSa/s sampling rate, a quad-channel ultra-thin design, only half the thickness of an ordinary oscilloscope, is easy to carry. Virtual instrument technology (VI) is to use high-performance modular hardware, combined with efficient and flexible software to complete various testing, measurement and automation applications.

Specification

Model	CCHN-VDC-2064	CCHN-VDC-2064L
Communication Interface	USB2.0	USB 2.0 (with LAN network port)
Bandwidth	60 MHz
Channel	4 Channel+ Multi
Sample Rate	1 GSa/s
Max. Input Voltage	40V(DC + AC peak)
Horizontal Scale (s/div)	5ns/div - 100s/div, step by 1 - 2 - 5
Record Length	5M
Input Impedance	1MΩ ± 2%, in parallel with 10pF ± 5pF
Vertical Sensitivity	5mV/div - 5V/div
Vertical Resolution	8 bits
Trigger Type	Edge, Pulse, Video, Slope, and Alternate
Automatic Measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Waveform Math	+, -, *, /, FFT
Power Supply	≤6.5W
*Dimension (W H * D)**	190* 18* 120mm
Weight	0.26 kg

Accessories

Power cord
CD rom
USB cable
Probe
Probe Adjust
Multimeter lead
Adapter
User manual
5V, 1KHz Output
Capacitance Ext Module
Soft Bag
Metal Case (optional)

Dimension (mm)

PC based oscilloscope dimension

Tips: What are the features of PC based oscilloscope?

The PC-based oscilloscope adopts the widely used USB interface, which makes the interface between the virtual instrument and the computer more convenient and the communication speed higher.
The 60mHz PC oscilloscope uses a high-speed analog-to-digital conversion chip for high-speed sampling.
The high-performance single-chip microcomputer is used for control, and high-speed and large-capacity memory is used to store sample data in real-time to improve instrument performance.
The four-channel PC oscilloscope uses Labview language to design the upper computer application program, which can realize waveform display, data analysis, and processing.
