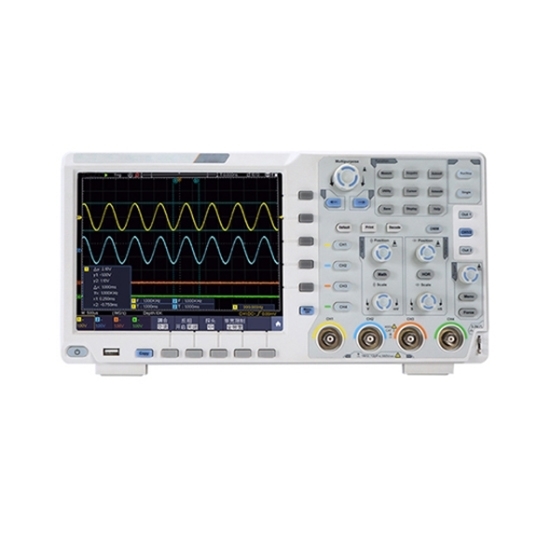

100 MHz Digital Oscilloscope, 4 Channels, 1 GSa/s

100 MHz Digital Oscilloscope, 4 Channels, 1 GSa/s

ATO reasonable price digital oscilloscope offers sample rate of up to 1 Gsa/s, bandwidth of 100 MHz, 4 channels, a waveform capture rate of up to 45,000 wfms/s and a large LCD screen that can show any measured alternating current.

SKU: CCHN-SCOPE-100M4

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Cheap price 4-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling rate. The oscilloscope with USB design, which can improve work efficiency, and convenient for storage.

Specification

Model	CCHN-EDS-302C
Bandwidth	300 MHz
Channel	2+ external trigger
Sample rate	2.5 GSa/s
Acquisition model	Sample, Peak detect
Record length	10M
Display	8 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	1ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤5.8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34015570mm
Weight	1.8kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Application

Application of igital oscilloscoope

Tips: What is the difference between a digital oscilloscope and an analog oscilloscope?

The main difference between analog and digital oscilloscopes is that in digital Oscilloscopes, the analog signal is captured and converted into a digital signal using an analog to digital converter. The advantage of using digital oscilloscopes is that you can easily store digital data in digital memory.
