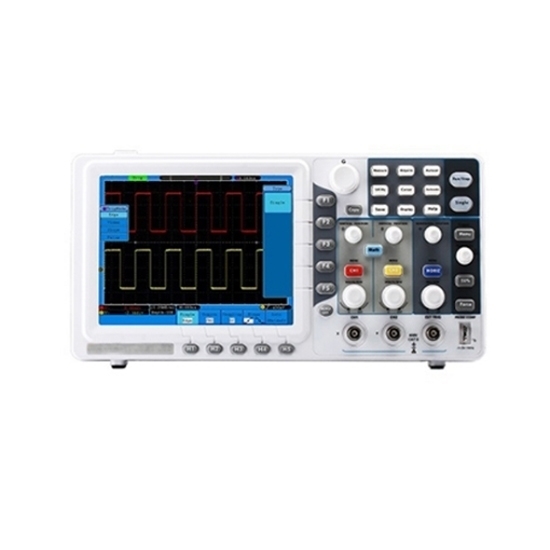

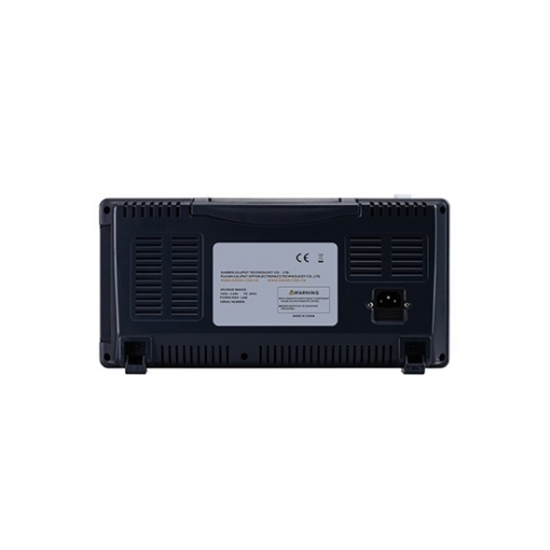

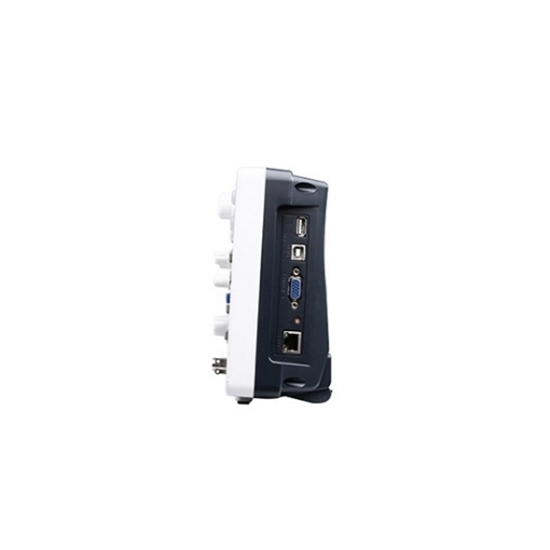

300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s

300 MHz Digital Oscilloscope, 2 Channels, 2.5 GSa/s

ATO digital storage oscilloscope provides a dual-channel, 300 MHz bandwidth oscilloscope and 2.5 GSa/s real-time sample rate. The digital oscilloscope has the function of memory and storage of the observed signal.

SKU: CCHN-SCOPE-300M2

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

This compact digital oscilloscope with 300 MHz bandwidth, 2.5 GSa/s sampling rate, 8 inches color LCD screen, bright color, and high contrast. Digital storage oscilloscope can be used to observe and compare single-shot processes and non-periodic phenomena, low-frequency, and slow signals, and signals observed at different times and places.

Specification

Model	CCHN-EDS-302C
Bandwidth	300 MHz
Channel	2+ external trigger
Sample rate	2.5 GSa/s
Acquisition model	Sample, Peak detect
Record length	10M
Display	8 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	1ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤5.8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34015570mm
Weight	1.8kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Dimension

Dimension of 100 MHz digital oscilloscope

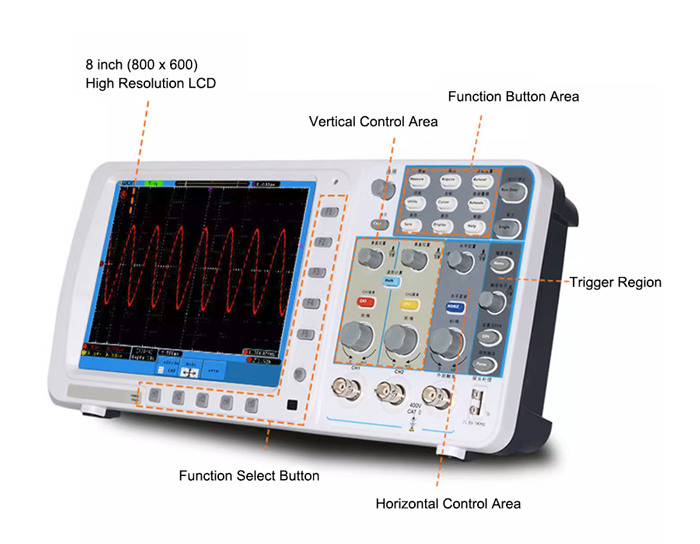

Details

Tips: What are the applications of digital oscilloscopes?

Oscilloscopes are used in the sciences, medicine, engineering, automotive and telecommunications industry. General-purpose instruments are used for the maintenance of electronic equipment and laboratory work.
