24V Laboratory Peristaltic Pump, 220 mL/min Flow Rate

Lab peristaltic pump with 24 voltage. This types of peristaltic pump only 58mm wide, small size, has a large rotary diameter. Reversing anti-pump cover falling off locking mechanism to ensure 24V laboratory peristaltic pump long term stable operation.

Features

• 24V lab peristaltic pump with high precision, low noise, high reliability and long life.
• Reversing anti-pump cover falling off locking mechanism to ensure long-term stable operation.
• Peristaltic pump loaded with multi-specification tubes, max flow rate reaches 220 mL/min.

Specification

• Model: CCHN-104KA/ZL
• Rated Power: DC 24V
• Voltage RPM: 100 rpm, 200 rpm, 250 rpm
• Power: ≤24W
• Tube Type: Silicone
• Flow Rate: 121 mL/min, 208 mL/min, 220 mL/min
• Net Weight: 170g
• Noise: ≤80 dB
• Outlet Pressure: ≤0.17 MPa
• Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

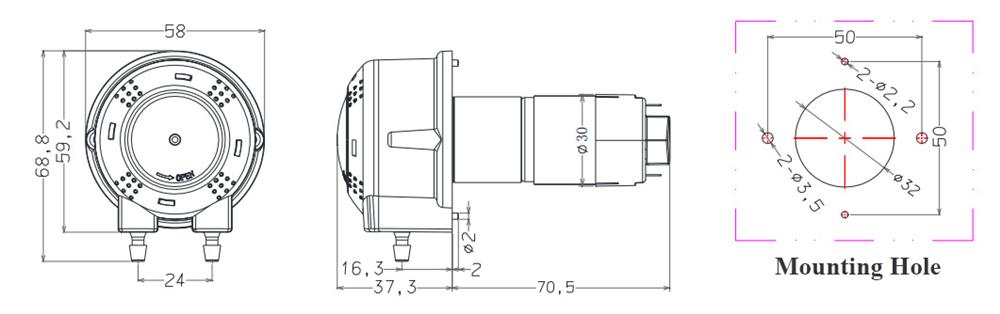

Dimension (Unit: mm)

Application

Tips: How to Choose the Right Peristaltic Pump For Laboratory?

Finding a pump that optimally suits your laboratory. Following these steps to select the right peristaltic pump:

• Make an informed decision. It is important to first establish an understanding of what your requirements are concerning sterility, the range of fluid viscosities to be handled and the desired precision.
• Determine the correct tubing material. Knowing about the chemical composition of the fluid to be pumped and dispensed is important too, especially if it is chemically aggressive. Be sure that your pump parts that come into contact with the fluids are compatible. In the case of peristaltic pumps this means carefully selecting the correct tubing material.
• Find the right space. Furthermore, consider the space which is available in your lab. Unfortunately, a lot of laboratory peristaltic pumps are complicated to program, oversized and bulky.
