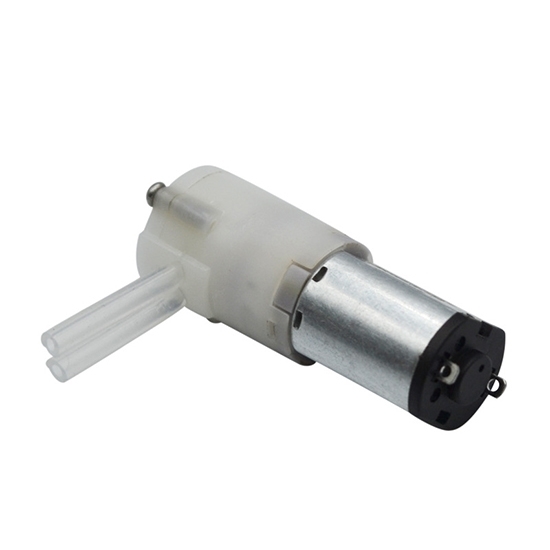

0.5mL/min DC 5V/6V Micro Peristaltic Pump

Note: This micro peristaltic pump is currently out of stock, but we have other items with similar specifications. Please go the page https://www.ato.com/6v-low-flow-peristaltic-pump.

Micro peristaltic dosing pump works at DC 5V/6V power supply, flow rate 0.3~0.5mL/min (0.19GPD), 2-tubing with 1mm diameter. Miniature peristaltic metering pump size is only 10.5*10.5*28mm, used for NPWT, sphygmomanometer, medical ventilator, dental flusher, coffee machine, dishwasher, water dispenser, car air purifier, etc.

Specification

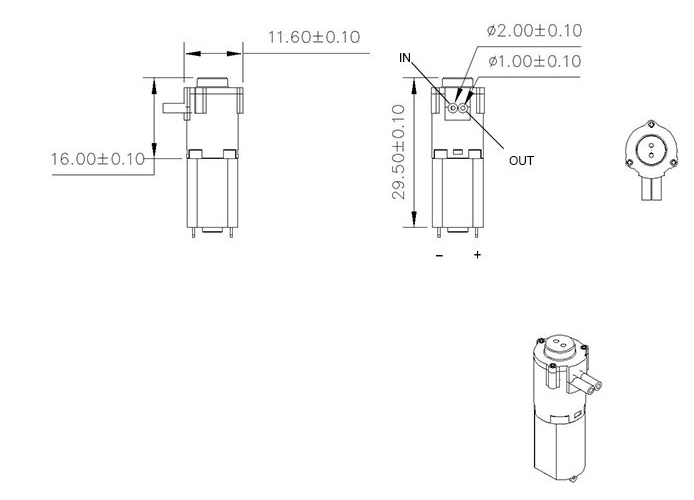

0.5mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

Micro Peristaltic Pump Applications

Tips: Superiority of micro peristaltic pump.

1. No pollution. The fluid only touches the pump tubing, not the pump body.
2. High precision. Repeatability, good stability and high precision.
3. Low shear force. Micro peristaltic pump is an ideal tool for conveying shear-sensitive and aggressive fluids.
4. Good airtightness. Micro peristaltic pump has good self-suck ability and can be idling to prevent liquid backflow.
5. Simple maintenance. Micro peristaltic pump has no valves and seals.
6. Micro peristaltic pump has the same flow capacity in both directions. In the case of no-liquid load operation, it will not cause damage to any parts of the pump. Micro peristaltic pump can generate up to 98% vacuum. Micro peristaltic pump can easily transport liquid or gas-liquid mixed phase fluids. Only the hose is the component that needs to be replaced, and the replacement operation is extremely simple.
