0.75 HP Pool Pump, 220V / 380V

0.75 hp pool pump at affordable price for sale online. Portable pool cleaning pump with PPO plastic steel material impeller, resist high temperature and corrosion. The motor of swimming pool with copper material. The swimming pool motor pump can reach a maximum head of 12 meters. Variable pool pump can be used in water park and aquaculture.

SKU: CCHN-PP-075HP

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Pool pump with 0.75 hp (0.55 kW) power. IP55 protection level and 50 mm port size of swimming pool submersible pump. Pool pump can be used in water park and aquaculture.

Feature:

Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
Free-tool filter cover design, easy to maintenance.
IP55 protection level, with none-leaky design.
100% copper wire motor, 24 hours running.
Silicone sealing ring, cover all watering section, enhance pump sealing system.
Engineering plastic body, pump can be effectively protected under bad weather, long service life.
Anti rust cast-aluminum motor cover, fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

Specification:

Model: CCHN-FQS-550
Voltage: 220V (1 or 3 phase) / 380V (3 phase)
Frequency: 50 Hz / 60 Hz
Power: 0.75 HP (0.55 kW)
Hmax: 12m
Qmax: 16 m³/h
Port Size: 50 mm
Threaded Connection: G 1-1/2"
Motor: copper motor
Medium Temperature: 5 ℃ - 50 ℃
Protection Level: IP44
Weight: 12 kg

Dimension (Unit: mm)

0.75 hp variable speed pool pump structure

Structure:

Variable speed pool pump FQS structure

01: plastic spanner	02: lid lock ring	03: lid	04: O' ring	05: basket
06: union nut	07: union bushing	08: O' ring	09: pump body	10: O' ring
11: drain plug	12: nut	13: gasket	14: screw	15: base
16: O' ring	17: screw	18: diffuser	19: impeller	20: O' ring
21: shaft seal	22: flange	23: screw	24: flange	25: R ejection water ring
26: screw	27: motor	28: junction box	29: electric current safeguard

Details

Pool Pump Details

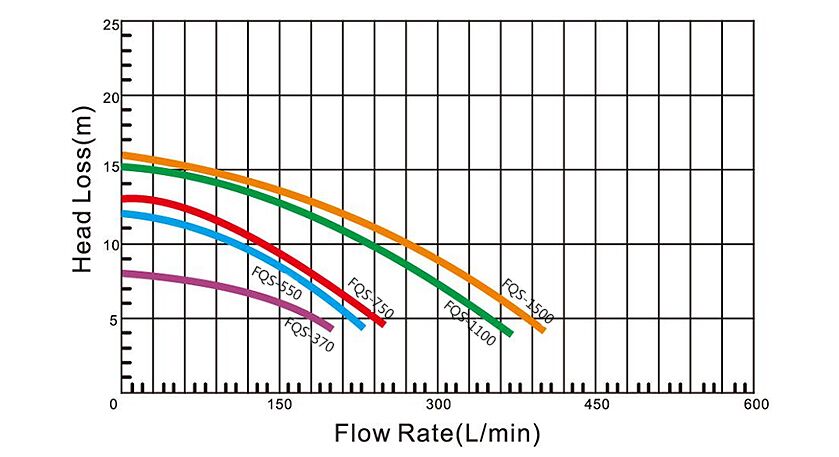

Flow Diagram:

FQS series pool pump flow diagram

Tips: Advantages of Pool Pump

Magnificent flow rate and lift, the core energy of water circulating, 2~3m suction lift.
Engineering plastic body, pump can be effectively protected under bad weather, long service life.
Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.
Silicone sealing ring, cover all watering section,enhance pump sealing system.
