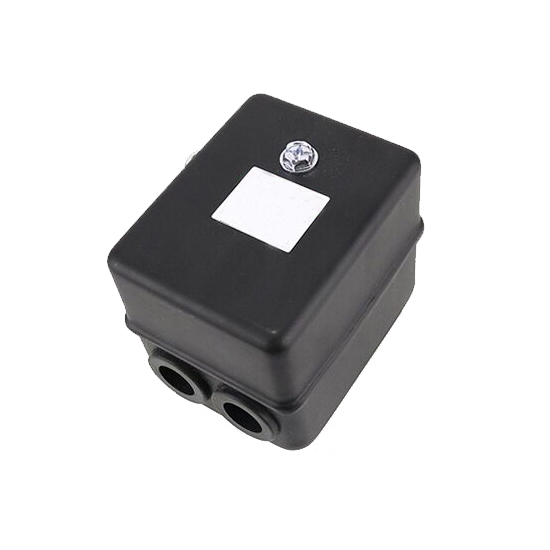

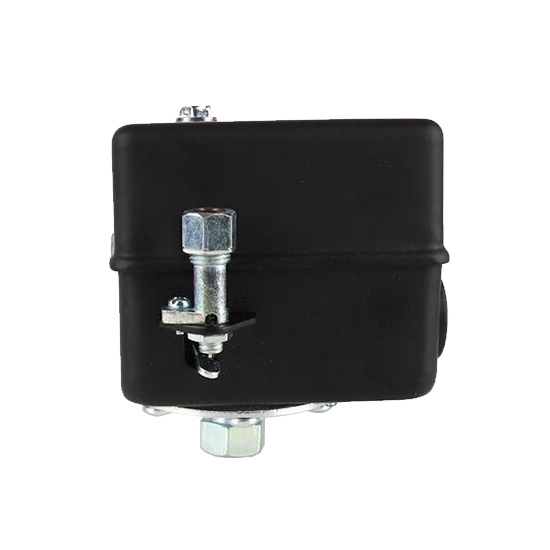

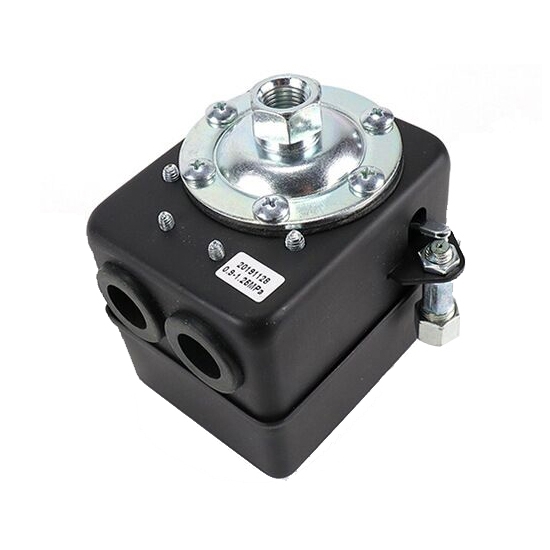

Adjusting air compressor pressure switch 120V rated voltage/ current 120VAC/24A, work in -10℃~60℃ and interface standard 1/4 or 3/8 internal screw. Pressure adjustment range 2.5~35kgf/cm² and long electrical life of 100,000 times. Equipped with compact steel case, relief valve to avoid overload. Good air tightness and stability. Wiring, protection level, and contact material can all be customized. Used in tap water, oil, water pump, air compressor and so on.

SKU: CCHN-APS-LF17

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Adjusting air compressor pressure switch 120V work in temperature -10℃~60℃, come with relief valve, which can avoid overload. Shell material cast aluminum and pressure adjustment range 2.5--35KGF/cm². Air compressor pressure switch can be used in harsh industrial environments, high stability and good performance.

Specification

Model	LF17		LF17A
Pressure adjustment range kgf/cm²	2.5-17.5	1.0-4.2	17-35
Pressure adjustment range kgf/cm² (set value)	2.5-4.2	1.0-1.5	4.0-5.0
Factory setting kgf/cm²	10.0-12.5	2.0-3.0	23-28
Rated voltage/current	AC 120V/24A；AC 240V/20A		120V AC/30A 240V AC/25A
Contact method	Normally closed
Pressure setting	closed 6.0kgf/cm²; disconnect 8.0kgf/cm²
Interface standard	1/4 internal screw 3/8 internal screw
Protection function	Edge of safety
Application range	Hydropower, tap water, oil
3C rated voltage range	36V and below
Operating temperature	-10℃~60℃
Shell material	Cast aluminum
Warranty	12 months
Wiring/protection level/contact material	Customizable

Dimension (MM)

Feature

Interface thread, measurement range of compressor pressure switch can be customized, shell material cast aluminum, protective function safety edge.
Adjusting air compressor pressure switch 120V work temperature -10℃~60℃, 3C rated voltage range of 36V and below, electrical life of 100,000 times, good air tightness and good stability.
Air compressor pressure switch equipped with relief valve pressure switch to avoid overload. Compact steel shell is firm, flat and smooth, not easy to damage, and the performance is more convenient and controllable. High-performance air compressors for use in harsh industrial environments.
Air compressor pressure switch with optional various interface forms and interface threads. Interface standard 1/4 or 3/8 internal screw
Optional rated voltage/current AC 120V/24A, AC 120V/30A, AC 240V/20A or AC 240V/25A.
Pressure setting: closed 6.0kgf/cm²; disconnect 8.0kgf/cm².

Tips: What is pressure switch used for?

Pressure switches are commonly used in paper machines, air compressors or pump sets. In such devices, we rely on pressure switches as safety devices, alarms or control elements in the system.
Take an air compressor (referred to as "air compressor") as an example: an ordinary air compressor consists of three main parts: a motor, a V-shaped air pump and an air storage tank. The air compressor is equipped with a pressure switch to adjust the pressure of the motor. Start and stop, by adjusting the pressure in the fuel tank, the air compressor can rest.
During the debugging process, the air compressor factory can set a certain start-stop pressure according to the requirements of different customers. For example, when the compressor starts, air is pumped inside. When the pressure reaches the set value, the pressure switch will touch the contacts to stop the motor. When the pressure is lower than the set value, the air compressor starts again to keep the pressure in the oil tank within the pressure range.
