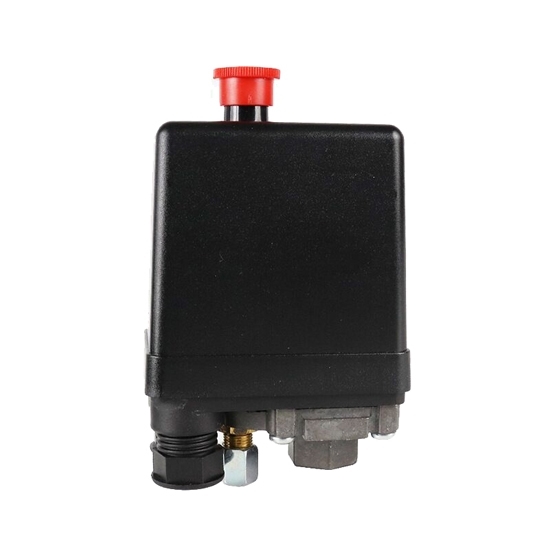

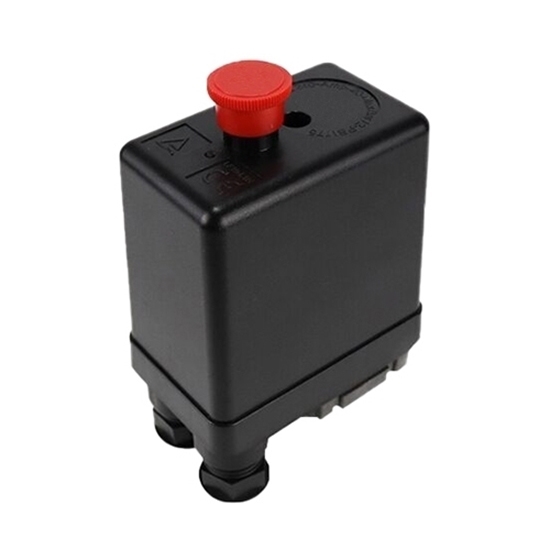

Air Compressor Pressure Switch 240V

Air compressor pressure switch 240V equipped with hardware engineering plastic shell for sale. Electrical life up to 100,000 times and work in -25℃~80℃. Air pressure switch come with relief valve pressure switch to avoid overload. Rated voltage/current AC 240V/20A, AC 120V/26A. Optional single-way, four-way style. Four way base makes installation more convenient and pressure closed 6.0kgf/cm2, open 8.0kgf/cm2.

SKU: CCHN-APS-LF10L

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Air compressor pressure switch 240V equipped with relief valve pressure switch and four way base. Work in temperature -25℃~80℃. Rated voltage/current AC 240V/20A, AC 120V/26A. Widely used in air compressor, water pump, pressure gauge.

Specification

Model	CCHN-LF10-L1H	CCHN-LF10-L4H
Interface standard	G1/4, G3/8 or 1/4, 3/8 inner screw	G1/4, G3/8 or 1/4, 3/8 NPT internal screw (cross)
Pressure adjustment range kgf/cm²	3.0-12.5
Differential pressure (non-adjustable) kgf/cm²	2.0/2.5/3.0
Factory setting kgf/cm²	6.0-8.0
Rated voltage/current	240VAC/20A 240VAC/26A
Contact method	Normally closed
Pressure setting	Closed 6.0 kgf/cm²; Opened 8.0 kgf/cm²
Wiring	Threaded connection
Shell material	Hardware, engineering plastics
Protection function	Edge of safety
Electrical life	100,000 times
3C rated voltage range	36V and below
Operating temperature	-25℃~80℃
Warranty	12 months
Contact material	Silver
Measuring range	1~50kPa

Dimension (MM)

Air compressor pressure switch size 240V

Feature

Air compressor pressure switch equipped with compact shell made of hardware, engineering plastics, adopts aluminum oxidation process technology, easy installation, stable performance.
Compressor pressure switch come with relief valve to avoid overload, long service life.
Air compressor switch has electrical life 100,000 times, work in -25℃~80℃, rated voltage/current AC 240V/20A, AC 120V/26A.

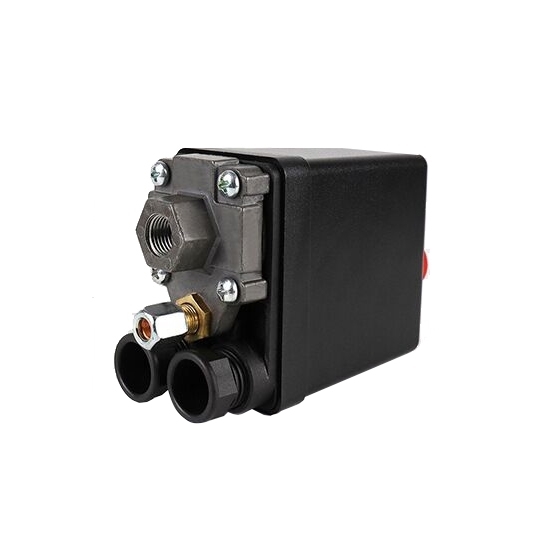

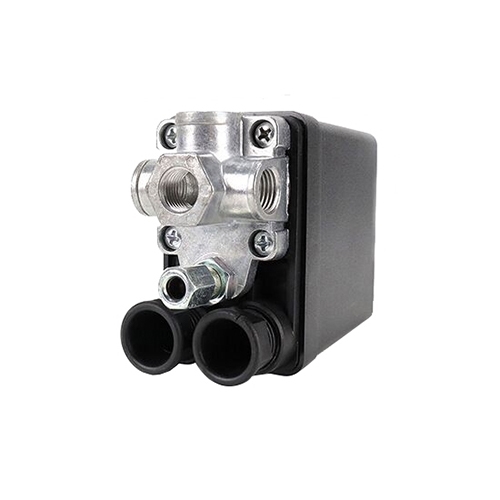

Four-way base, can make the installation of exhaust valve and pressure gauge easier, flat and smooth, not easy to damage, and the performance is more convenient and controllable
A variety of air compressor pressure switch styles are available: single-way/four-way.
Special factory settings and differential pressure can be provided upon request. Other interfaces can be customized according to customer requirements. Unit conversion: 1kgf/cm2= 14.2psi 1bar=14.5psi

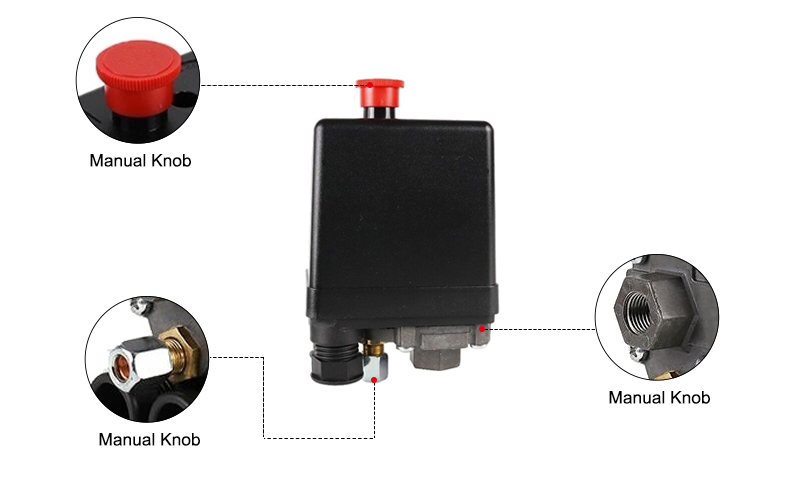

Details

Tips: What is the reason for the air compressor pressure switch leaking?

If the pressure switch of the air compressor leaks air, first check whether it is caused by a failure of the one-way check valve, such as if it needs to be replaced in time.
If it is not caused by the failure of the one-way check valve, then check whether the gasket of the one-way check valve is full of oil mist. If so, replace the gasket, or get a rubber pad of the same size and place it on the seal. The underside of the pad is reinforced to prevent air leakage.
