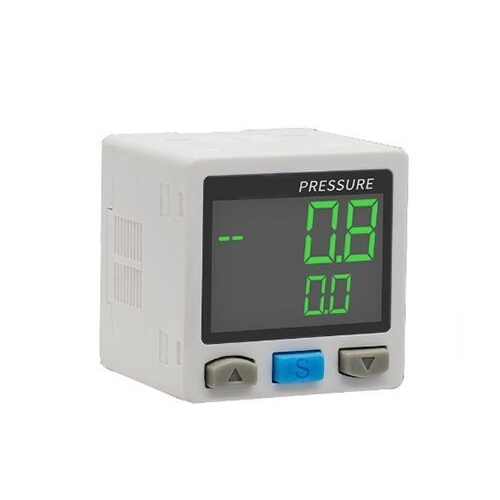

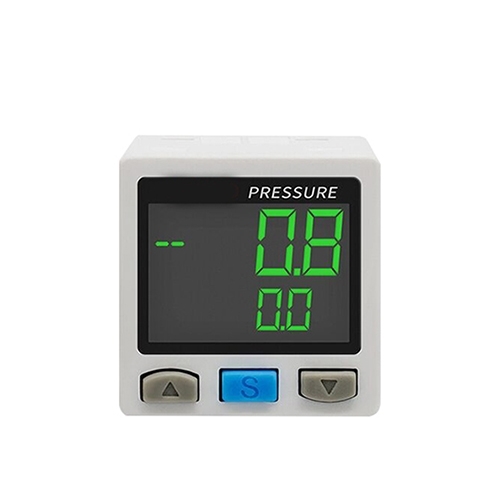

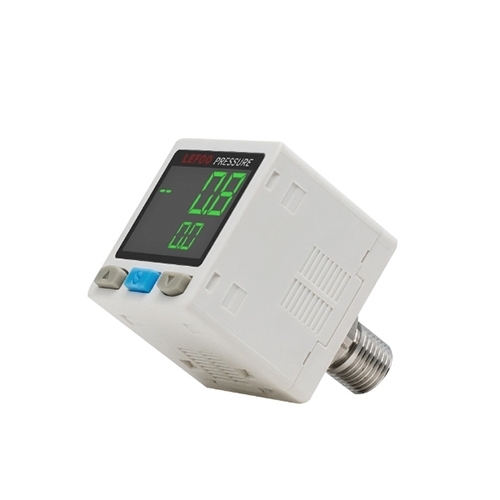

Digital Water Pressure Switch with LCD Display

Digital Water Pressure Switch with LCD Display

Digital water pressure switch with LCD display for affordable price, equipped with a dual-screen LCD digital display, measuring range -100Kpa~1000Kpa. digital pressure switch for water pump works temperature in 0℃~50℃, multiple output options. Rated voltage 10~30V DC and storage temperature in -10℃~60℃. Digital water pressure switch detects water, quick reaction time 2.5\5\10\25\250\500\1000\5000MS. Stress testing with high-reliability transmitters. The user adjusts the working parameters by himself. Widely used in power, water, oil./25/250/500/1000/5000MS. Stress testing with high-reliability transmitters. The user adjusts the working parameters by himself. Widely apply in power, water, oil.

SKU: CCHN-WPS-LFDS10

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Digital water pressure switch equipped with a dual-screen LCD digital display, work in 0℃~50℃, rated voltage 10~30V DC and measurement accuracy up to ±2.5%. Rated current＜20mA. Used in hydraulic equipment, gas alarm, intelligent manufacturing and so on.

Specification

Model	CCHN-LFDS10
Pressure range	(-100~100kPa)	(-100~1000kPa)
Withstand voltage	3 times	1.5 times
Show	Single row LED display
Repeatability	±0.3%F.S
Comprehensive accuracy	±1%F.S
Stability	<±0.5%F.S/year
Operating temperature	0~50°C
Storage temperature	-10~60°C
Measured medium	Non-corrosive dry gas, water
Rated working voltage	10 ~ 30V DC
Current consumption	Less than 20MA (without load)
Switch output	: NPN open collector transistor maximum current: 100MA voltage drop: less than 1.5V
	: PNP open collector transistor maximum current: 100MA voltage drop: less than 1.5V
Analog voltage output	1~5V±2% (limited voltage output type)
Analog current output	4~20mA ± 2% (limited current output type)
Output job	Normally open/normally closed
Reaction time	2.5\5\10\25\250\500\1000\5000MS
Appendix	CN-14A-C2 (with connector cable, 2M)
Output method	S: Standard type (two-way switching value)
	A: Current output type
	V: Voltage output type
Interface Type	R: R1 \8+M5 internal thread screw
	E: G1\8+ M5 internal thread screw
	M: M5 internal thread screw
Switch type	N: NPN
	P: PNP
Electrical life	100,000 times
Shell material	Stainless steel
Wiring	Threaded connection
Action pressure	100k
Weight	0.1kg
Contact type	SPDT
Measurement accuracy	±2.5%

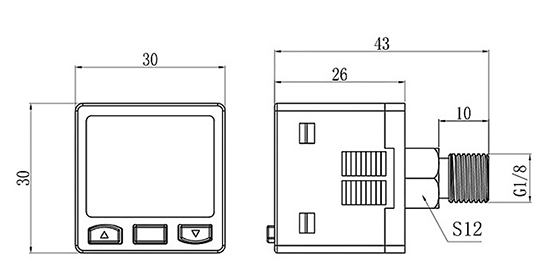

Dimension (MM)

Digital pressure switch dimension

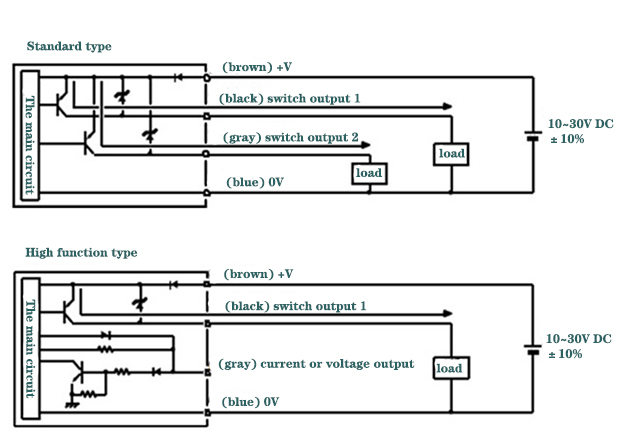

Relay output type

Feature

Digital pressure switch for air compressor with pressure range (-100~100kPa) or (-100~1000kPa), various connection and output modes.
Built-in a variety of setting items, the user can adjust the working parameters by himself, flexible and convenient Anti-vibration, long service life, simple operation, clear display.
Digital water pressure switch with HD screen display is clear and dual-screen LCD digital display, multiple output options.
A high-reliability transmitter is used for pressure testing, and the signal is processed by the back-end circuit and converted into standard industrial electrical signal output and display.
Digital water pressure switch with compact engineering plastic shell design, digital water pressure switch with high-contrast, dual-screen display, used in various industrial occasions.
Digital pressure switch equipped with protection class IF65, 3C rated voltage range 36V and below. Electrical life of 100,000 times and single-row LED display, interface thread supports customization.

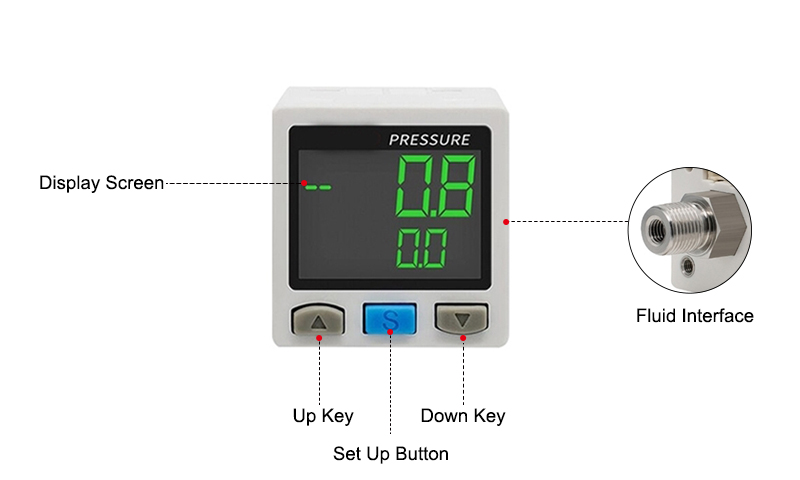

Details

Tips: What is digital pressure switch?

An intelligent high-precision pressure control device integrating pressure measurement, display and control.
Digital display pressure switch, also known as intelligent pressure switch, is an intelligent high-precision pressure control device integrating pressure measurement, display and control.
The main functions of the digital display pressure switch have the characteristics of simple operation, low price, anti-vibration, high control precision and long service life. The pressure switch has multiple functions such as delay control function, three display units can be switched arbitrarily, and error can be reset with one key.
