Programmable Logic Controller, 16/24/32/40/60 I/O, Relay/Transistor Output

Low price PLC Programmable Logic Controller for sale, high-speed 32-bit CPU, 16 / 20 / 24/ 32 / 40 / 60 I/O points, 16k steps program capacity and 10k data register built-in 1 RS-232 and 2 RS-485 ports, 100 ~ 240V AC power supply. PLC controller has digital input & relay or transistor output, providing 8 - 36 input points and 8 - 24 output points, high capability and fast logic operation, a perfect solution for controlling your automation systems.

SKU: CCHN-PLC-ES2

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Standard PLCs (Programmable Logic Controller) with integrated communication and highly efficient processing ability is great for your control systems such as HVAC, printing machine, packaging machine, molding injection machine, inspection system.

Features

32-bit CPU for high-speed processing
Standard PLC-ES2 Series: 16 / 20 / 24 / 32 / 40 / 60 I/O points for a variety of applications
Built-in 1 RS-232 and 2 RS-485 ports
Program capacity: 16 k steps
Data register: 10 k words
Max. execution speed of basic instructions: 0.35 μs
RTC function and file register (5 k words)
Highly efficient processing ability: 1 k steps of programs can be completed within 1ms
Max. 100 kHz pulse control; specific motion control instructions (mark/masking and instant frequency changing) available for multi-axis applications
Up to 4 levels of password protection secures your source programs and intellectual property

Specification

Model		CCHN-DVP-ES2
Builit-in I/O		16 / 20 / 24 / 32 / 40 / 60 I/O points
Power Supply		100 ~ 240V AC (-15% ~ +10%), 50/60Hz ±5%
Connector		European standard removable terminal block (Pin pitch: 5mm)
Operation		CCHN-DVP-ES2 PLC starts to run when the power rises to 95~100V AC and stops when the power drops to 70V AC. If the power is suddenly cut off, the PLC will continue running for 10ms.
Power Supply Fuse		2A / 250V AC
Power Consumption		30VA
DC 24V Current Output *^1**		500mA
Power Supply Protection		DC 24V output short circuit protection
Voltage Withstand		1500VAC (Primary-secondary), 1500VAC (Primary-PE), 500VAC (Secondary-PE)
Insulation Resistance		>5MΩ at 500VDC (between all I/O points and ground)
Noise Immunity		ESD (IEC 61131-2, IEC 61000-4-2): 8kV Air Discharge EFT (IEC 61131-2, IEC 61000-4-4): Power Line: 2kV, Digital I/O: 1kV, Analog & Communication I/O: 1kV RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m
Grounding		The diameter of grounding wire shall not be less than that of L, N terminal of the power supply. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.)
Environment		Operation: 0°C~55°C (temperature), 5~95% (humidity), pollution degree 2 Storage: -25°C~70°C (temperature), 5~95% (humidity)
Approvals		UL508, European community EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC
Vibration/Shock Immunity		International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea)
Weight		See below "Selection Table"
Note: *1. It is suggested that the power output should not be supplied to HMIs.

Selection Table

Model	Builit-in I/O	Number of Inputs	Number of Outputs	Output Type	Weight
DVP16ES200R	16	8	8	Relay	377g
DVP16ES200T	16	8	8	Transistor	351g
DVP24ES200R	24	16	8	Relay	414g
DVP24ES200T	24	16	8	Transistor	387g
DVP32ES200R	32	16	16	Relay	489g
DVP32ES200T	32	16	16	Transistor	432g
DVP40ES200R	40	24	16	Relay	554g
DVP40ES200T	40	24	16	Transistor	432g
DVP58ES200R	58	24	36	Relay	554g
DVP58ES200T	58	24	36	Transistor	498g
DVP60ES200R	60	36	24	Relay	705g
DVP60ES200T	60	36	24	Transistor	622g

PLC I/O Point Specification

Input Points
Input Point No.		X0 ~ X3 ^#1	X4 ~ X7	X10 ~ X17, X20 ~ ^#2
Input Point Type		Digital input
Input Form		DC (SINK or SOURCE)
Input Currrent		24VDC, 5mA
Input Impedance		4.7KΩ
Max. Input Frequency		100kHz	10kHz	60Hz
Action Level	Off → On	>15VDC
	On → Off	< 5VDC
Response Time	Off → On	< 2.5μs	< 20μs	< 10ms
	On → Off	< 5μs	< 50μs	< 15ms
Filter Time	X0 ~ X7	Adjustable within 0 ~ 20ms in D1020 (Default: 10ms)

Output Points
Output Point Type		Relay - R	Transistor - T
Output Point No.		All	Y0, Y2	Y1, Y3	Y4 ~ Y17, Y20 ~ ^#2
Voltage Spec.		< 250VAC, 30VDC	5 ~ 30VDC ^#3
Max. Output Frequency		1Hz	100kHz	10kHz	1kHz
Maximum Load	Resistive	2A/point (5A/COM)	0.5A/1 point (4A/COM) ^#5
	Inductive	^#4	15W (30VDC)
	Lamp	20W DC/100W AC	2.5W (30VDC)
Response Time	Off → On	Approx .10ms	< 2μs	< 20μs	< 100μs
	On → Off		< 3μs	< 30μs	< 100μs

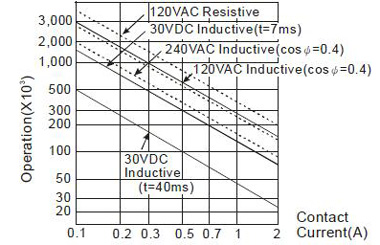

Note: #1. The counting frequency of X1 and X3 on the DVP-ES200 series PLCs has increased from 10kHz to 100kHz after 2013. #2. Please refer to “I/O Terminal Layouts” for the max. X/Y No. on each model. #3. UP, ZP must work with external auxiliary power supply 24V DC (-15% ~ +20%), rated consumption approx. 1mA/point. #4. Life curves #5. ZP for NPN COM, UP for PNP COM.

Product Details

PLC Controller Introduction

PLC Dimensions (Unit: mm)

ES2 Series PLC Demensions

Model	DVP16ES200R/T	DVP24ES200R/T	DVP32ES200R/T	DVP40ES200R/T	DVP58ES200R/T	DVP60ES200R/T
L	105	125	145	165	225	225
L1	97	117	137	157	217	217
