Portable Single Phase Bridge Rectifier Module, 60/75/100 Amp

Portable Single Phase Bridge Rectifier Module, 60/75/100 Amp

Factory price portable single-phase bridge rectifier module for sale, providing 60/75/100 Amp DC output options, efficiently converting 1-phase AC power to DC power. With high insulation voltage of 2500V, it ensures good electrical protection and is suitable for various industrial and commercial applications.

SKU: CCHN-RF-MDQ01

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Its compact design is suitable for a variety of applications, and can effectively convert AC to DC power. It is widely used in the power supply of instruments and equipment and the input rectifier power supply of PWM inverters.

Features

Provide electrical insulation of 2500V voltage between the chip and the substrate to ensure reliable isolation.
1-phase bridge rectifier module has excellent temperature characteristics and power cycling capability, and can operate stably under extreme working conditions.
Its design achieves low forward voltage drop, thereby improving energy efficiency and reducing power loss.
The bridge rectifier module supports high surge currents to meet the demand for instantaneous high loads.
The maximum working junction temperature of the equipment can reach 150 ℃, meeting the requirements of high-temperature environments.
Its compact design makes it small in size and lightweight, making it easy to install and move.

Specification

Model	CCHN-LJ-MDQ60A	CCHN-LJ-MDQ75A	CCHN-LJ-MDQ100A
DC output current	60A	75A	100A
Reverse repetitive peak voltage	1600V
Reverse repetitive peak current	5mA
Forward non repetitive surge current	0.6KA	0.8KA	1.3KA
Square time product of surge current	1.8A²s*10³	3.2A²s*10³	8.6A²s*10³
Threshold voltage	0.7V	0.7V	0.75V
Slope resistance	6.0mΩ	4.2mΩ	2.4mΩ
Positive peak voltage	1.20V
Thermal impedance (junction to shell)	0.20℃/W
Thermal impedance (shell to radiator)	0.07℃/W
Insulation voltage	2500V
Installation torque (M5)	4N·m
Installation torque (M6)	6N·m
Storage temperature	-40~125℃
Weight	190g

Note: This product must be installed on a heat sink. Please contact us to choose a suitable heat sink according to the actual situation.

Dimension (mm)

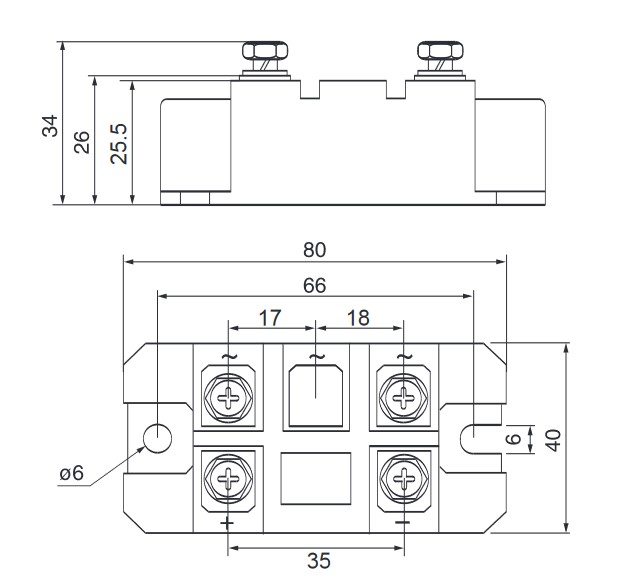

Portable single phase bridge rectifier module dimension

Circuit Diagram

Portable single phase bridge rectifier module circuit diagram

Tips: Application of single-phase bridge rectifier module

Single-phase bridge rectifier module can be used as a DC power supply for instrument equipment.
It can be used as an input rectifier power supply for PWM frequency converters.
1-phase bridge rectifier module is suitable for inverter welding machines and provides reliable power supply.
It can provide excitation power for DC motors.
The rectifier module can serve as an input rectifier component for a switching power supply.
It is also suitable for charging soft start capacitors.
Single-phase rectifier module can support the requirements of electrical drag and auxiliary current.
Portable 1-phase rectifier module can also serve as a DC power source for battery charging.
