Fast Recovery Rectifier Diode, 300/500/800/1000 Amp

Fast Recovery Rectifier Diode, 300/500/800/1000 Amp

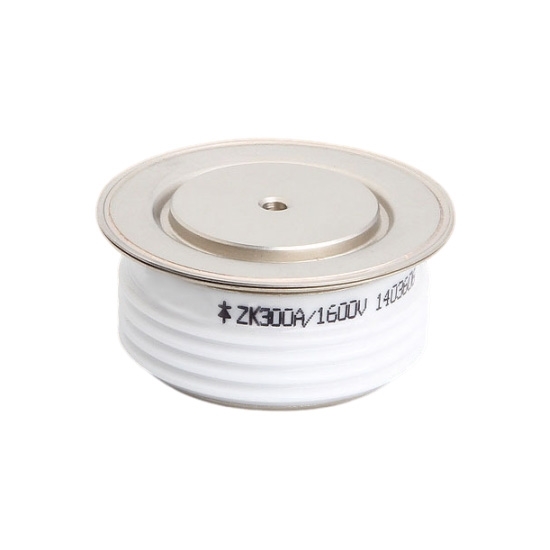

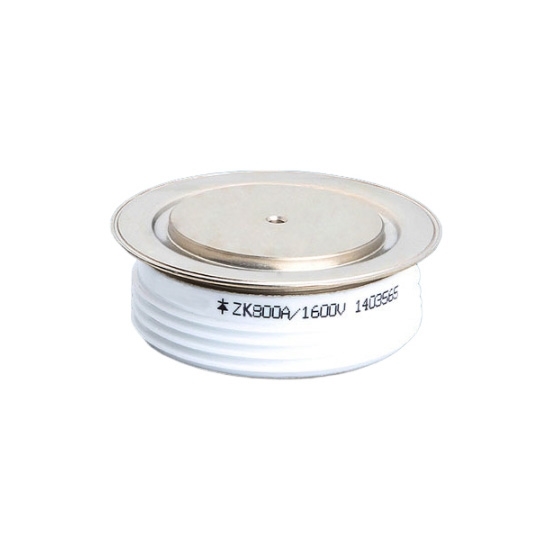

Affordable price fast recovery rectifier diode is available with rated currents of 300, 500, 800 and 1000 Amp. It features a planar design and a wide storage temperature range of -40℃ to 160℃. The fast recovery characteristics can effectively reduce power loss and are suitable for motor control and charging systems.

SKU: CCHN-RF-ZK

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Fast recovery rectifier diode adopts high quality silicon material and bolt-on design. It is widely used in motor control and drive, induction heating, UPS power supply, welding equipment, uninterruptible current inverter and AC electromechanical control.

Features

The fast rectifier diode features a diffusion junction structure, providing excellent electrical performance.
It has a fully enclosed ceramic-metal flat plate structure, ensuring reliability and durability.
This rectifier diode is capable of withstanding high surge currents, making it suitable for various harsh operating conditions.
Silicon fast rectifier diode complies with the GB4939-1985 standard, ensuring product quality and safety.
The dual-side cooling design effectively enhances heat dissipation, prolonging the diode's lifespan.
In the off state, the diode exhibits strong capabilities for high on-state current thresholds.

Specification

Model	CCHN-ZK300A	CCHN-ZK500A	CCHN-ZK800A	CCHN-ZK1000A
Average forward current	300A	500A	800A	1000A
Reverse repetitive peak voltage	200~3000V	200~3000V	200~3000V	200~3000V
Reverse repetitive peak current	30mA	40mA	40mA	50mA
Forward non repetitive surge current	4.2KA	7KA	11KA	18KA
Reverse recovery time	3μs	3μs	3μs	3μs
Reverse recovery charge	100μC	120μC	130μC	150μC
Forward average voltage/output current	2.4V/900A	2.4V/1800A	2.6V/2400A	2.6V/3000A
Thermal impedance (shell to radiator)	0.065℃/W	0.033℃/W	0.033℃/W	0.030℃/W
Maximum rated junction temperature	150℃	150℃	150℃	150℃
Mounting force	5.3~10KN	10~20KN	10~20KN	15~20KN
Storage temperature	-40~160℃	-40~160℃	-40~160℃	-40~160℃
Weight (approximately)	50g	110g	270g	470g

Dimension (mm)

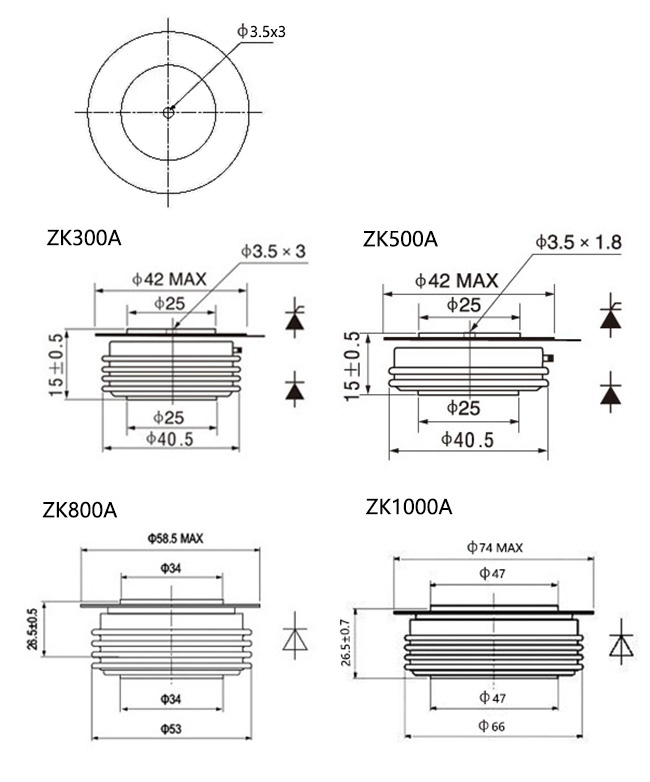

Fast recovery rectifier diode dimension

Tips: Difference between fast recovery rectifier diode and standard rectifier diode

Fast recovery rectifier diodes and standard rectifier diodes differ primarily in their recovery time and performance characteristics.

Recovery Time: Fast recovery diodes have shorter reverse recovery times, which allows them to switch more quickly between conducting and blocking states. This makes them suitable for high-frequency applications.
Switching Efficiency: Fast recovery diodes minimize power losses during switching, improving overall efficiency in power conversion circuits.
Applications: Fast recovery diodes are often used in applications like switch- mode power supplies and inverters, while standard rectifier diodes are commonly found in low-frequency circuits, such as simple rectification tasks.
Construction: Fast recovery diodes typically have designs optimized for rapid switching, whereas standard diodes may prioritize robustness over speed.
