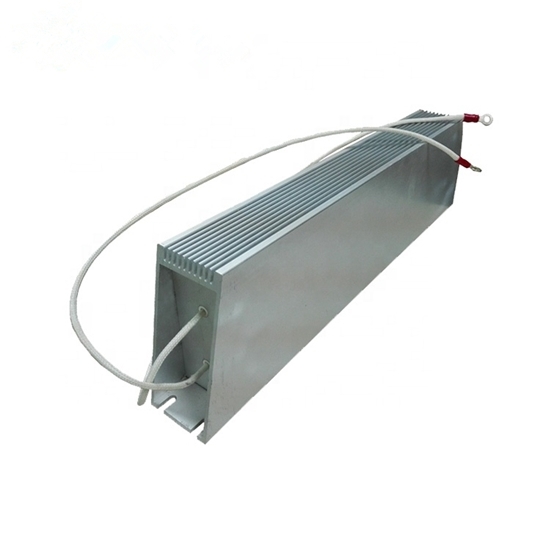

Aluminum Wire Wound Resistor

Aluminum wire wound resistor price is affordable, optional power in 60W~2000W, resistance 10Ω~750Ω, protection degree up to IP54. It uses high stability iron chromium aluminum resistance wire, has strong impact resistance and high heat capacity, suitable for harsh environments.

SKU: CCHN-WWR-65

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Application: Power supply charging and discharging, inverter pre-charging, servo frequency conversion, lifting brake, centrifuge, tie-down machine, load test, elevator, dummy load, power aging test, wire drawing machine, robot, industrial automation and other mechanical and electrical equipment manufacturing.

Specification

Model	CCHN-WWR-65
Tolerance	±5%, ±1% available
Max.Work Voltage	(P*R)^1/2 V
Temperature Coefficient	400 PPM/℃
Short Time Overload	5xPn (rated power) in 5 seconds
Dielectric Voltage	AC2.5kV/1min 50Hz
Insulation Resistance	DC500V, R≥100MΩ
Certification	CE, RoHS
Terminal Strength	200N 30s, no damage
Operating Temperature Range	-25℃~+225℃

Derating Curve Diagram of Wire Wound Resistor

Derating Curve Diagram of Wire Wound Resistor

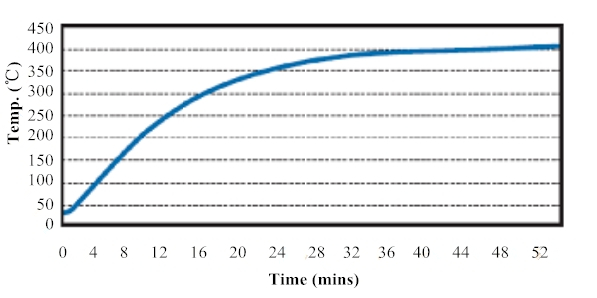

Temp. Rise Curve Diagram of Wire Wound Resistor

Temp. Rise Curve Diagram of Wire Wound Resistor

Tips: Physical concept of aluminum wire wound resistor.

Like other resistors, aluminum wire wound resistor in physics indicates the resistance magnitude of conductor to current flow. Resistance will cause the change of electron flux. The smaller the resistance, the greater the electron flux, and vice versa. For aluminum wire wound resistor, the resistance value is generally related to temperature, material, length and cross-sectional area. Temperature coefficient is a physical quantity to measure the influence of temperature on aluminum resistor. It is defined as the percentage change in resistance value for each 1℃ increase in temperature.

Aluminum wire wound resistors protect the machine from voltage rises in the DC bus. At the same time, the reduction in current causes engine to reduce speed, helps to brake the machine.
