Illuminated Rocker Switch, 3 Pin

Green light illuminated rocker switch, 3 pin 2 position, single pole single throw, hole size 28 x 11mm, max current voltage 16A 250VAC, roker swith has high-quality shock resistance, strong shock resistance, and fast frequency response.

SKU: CCHN-RS-KCD2

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Rocker switch with green led illuminate, 3 pins, 16A, 250V max rated current and voltage, 2 position on/off, high strength, high temperature resistance, corrosion resistance, long service life, stable and reliable.

Specification

Model	CCHN-RS-KCD2
Rated Current	16A
Rated Voltage	220V
Terminals Number	3 Pin
Contact Resistance	≤50mΩ
Withstand Voltage	1500VAC 1 min
Rated Range	15A 250VAC
Relative Humidity	＜95%
Protection Level	IP40
Terminal Insertion Force	≥80N
Insulation Resistance	≥1000mΩ
Electrical Life Time	10,000 Cycles
Flame Retardant Requirements	UL94-V2
Operating Force	2N-8N
Welding	Welding temperature ≤320℃, welding time ≤3 seconds
Illuminated Voltage	Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
Certificate	UL, CE, ENEC
Warranty	12 Months

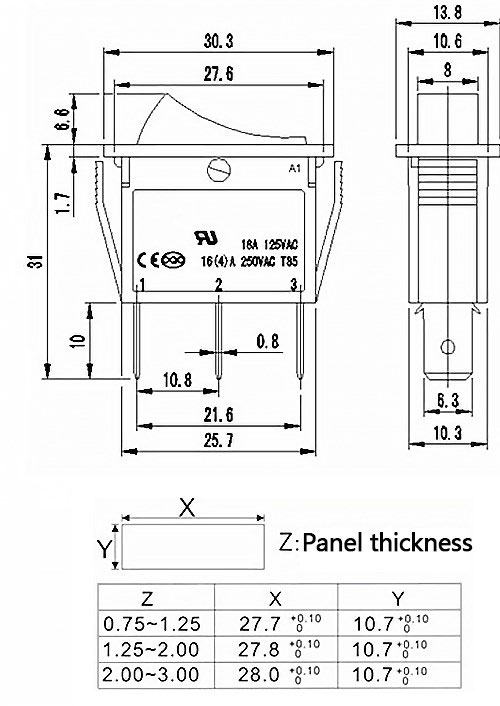

3 Pin Illuminated Rocker Switch Dimension

Single Pole Single Throw Rocker Switch Wiring Circuit Diagram

Tips: Illuminated rocker switch features

1. high strength, high temperature resistance, corrosion resistance, long service life, stable and reliable.
2. The rocker switch adopts copper pin silver contacts, which has strong dust and corrosion resistance, high sensitivity, and good wear resistance and electrical insulation.
3. Green illuminated rocker switch has excellent impact resistance, strong shock resistance and fast frequency response.
