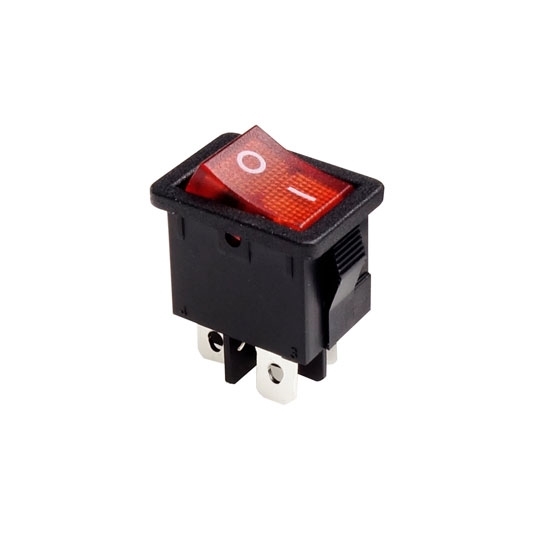

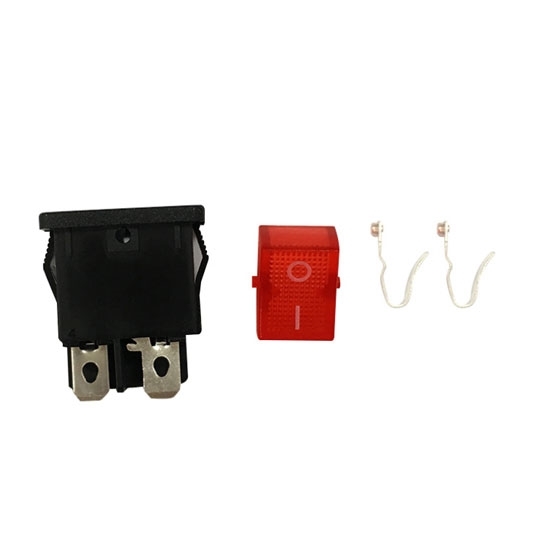

Illuminated Rocker Switch, 4 Pin

Small size illuminated on off rocker switch, 4 pin, double pole single throw, 15 amp rated current, 10,000 times electrical life, wiring angle brass silver plated, strong and sturdy, flame retardant material, safe and reliable.

SKU: CCHN-RS-KCD1

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Illuminated rocker switch is used to install in various electrical engineering, 4 pins, on/off, rated voltage 220V, high temperature and corrosion resistance.

Specification

Model	CCHN-RS-KCD1
Rated Current	15A
Rated Voltage	220V
Terminals Number	4 Pin
Contact Resistance	≤50mΩ
Withstand Voltage	1500VAC 1 min
Rated Range	16A 250VAC
Relative Humidity	＜95%
Protection Level	IP40
Terminal Insertion Force	≥80N
Insulation Resistance	≥1000mΩ
Electrical Life Time	10,000 Cycles
Flame Retardant Requirements	UL94-V2
Operating Force	2N-8N
Welding	Welding temperature ≤320℃, welding time ≤3 seconds
Illuminated Voltage	Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
Certificate	UL. CE, ENEC
Warranty	12 Months

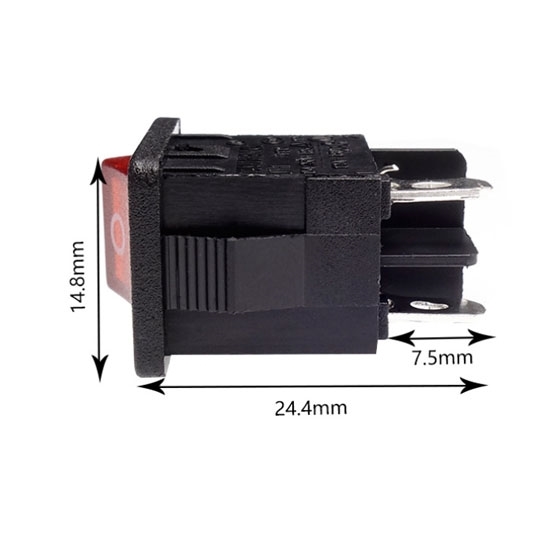

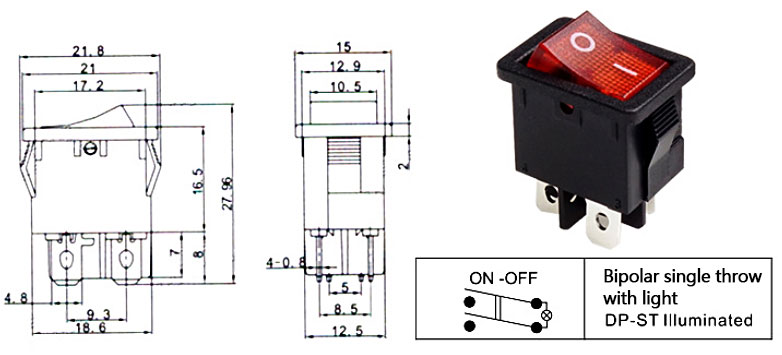

On off Rocker Switch Dimension

4 Types of rocker switches

1. Single pole single throw, 1 moving contact and 1 static contact, only 1 channel.
2. Double pole single throw, 2 moving contacts and 2 static contacts, with 2 channels.
3. Single pole double throw, 1 moving contact and 2 static contacts, which can be connected to the static contacts at both ends separately.
4. Double-pole double-throw, 2 moving contacts and 4 static contacts, with 4 channels, which can be connected to the 2 static contacts at both ends separately.
