Lighted Rocker Switch, 12V

Low cost 12V lighted rocker switch, hole size 28 x 10.5mm, led light red or green, 4 pins, the rocker switch has a long service life, high temperature resistance, and high current impact resistance.

SKU: CCHN-RS-KCD3

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

lighted rocker switch 12 volt, LED light color red/green, mechanical life 50 thousand times, action force 8N, LED lamp life 40,000 hours, widely used in drinking fountains, treadmills, coffee machines, motorcycles, etc.

Model	CCHN-RS-KCD3
Rated Current	16A
Rated Voltage	12V/24V
Terminals Number	4 Pin
Luminous Color	Red / Green
Rated Current	≤ 20mA
Wiring	Pin pin wiring
Contact Resistance	≤50mΩ
Withstand Voltage	3000VAC 1 min
Rated Range	16A 250VAC
Hole Size	28 x 10.5mm
Protection Level	IP65
Button Material	Aluminum alloy
Insulation Resistance	≥1000mΩ
Mechanical Life	50,000 Cycles
Shell Material	PC
Operating Force	8N
Base Material	High flame retardant PA66
Environmental Temperature	-30℃~80℃
LED Lamp Life	40,000 Hours
Certificate	CE
Warranty	12 Months

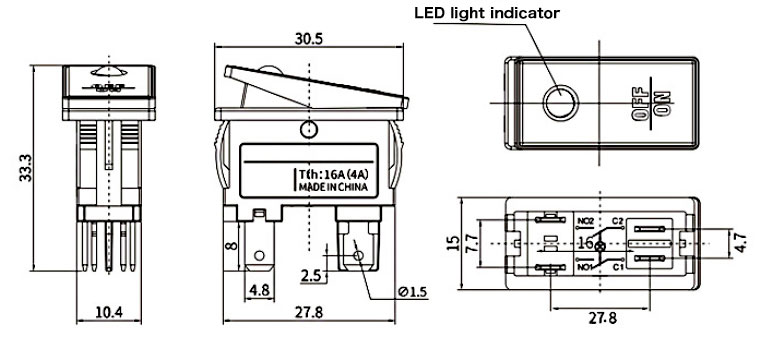

12V Lighted Rocker Switch Dimension

What is a rocker switch?

The structure of the rocker switch is the same as the toggle switch, except that the handle is replaced with a ship. Rocker switches are often used as power switches for electronic equipment. Their contacts are divided into single-pole single-throw and double-pole double-throw. Some switches also have indicator lights.
