On Off Rocker Switch, 2 Pin

Black on off rocker switch, rating 16A 250V, 2 position, terminals number 2 pins, withstand voltage 1500VAC, it is an ideal choice for water dispensers, treadmills, coffee pots, massage machines.

SKU: CCHN-RS-KCD111

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

2 Position rocker switch for sale, on/off, 2 pins, large carrying current, low contact resistance, high voltage resistance, AC 220V, 16A.

Specification

Model	CCHN-RS-KCD111
Rated Current	16A
Rated Voltage	220V
Terminals Number	2 Pin
Contact Resistance	≤50mΩ
Withstand Voltage	1500VAC 1 min
Rated Range	16A 250VAC
Relative Humidity	＜95%
Protection Level	IP40
Terminal Insertion Force	≥80N
Insulation Resistance	≥1000mΩ
Electrical Life Time	10,000 Cycles
Flame Retardant Requirements	UL94-V2
Operating Force	2N-8N
Welding	Welding temperature ≤320℃, welding time ≤3 seconds
Illuminated Voltage	Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
Certificate	UL, CE, ENEC
Warranty	12 Months

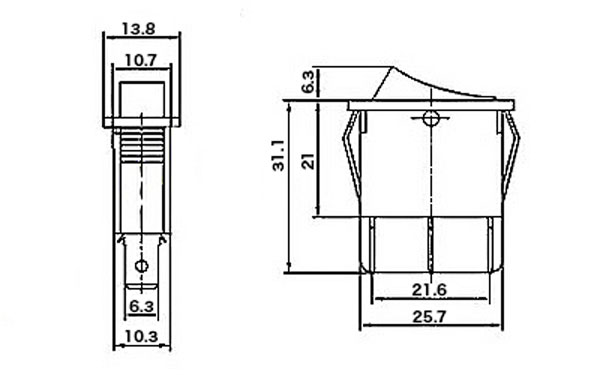

On Off Rocker Switch Dimension

Tips: The difference between rocker switch and air switch

The boat switch has good arc extinguishing ability. It will trip automatically in the case of a short circuit and a large current; in a high voltage and high current circuit, it is often used as an operating electrical appliance for power failure, power transmission, and load connection and disconnection.

Air switches generally play the role of blocking and protection devices in small current circuits. They are also called active switches and air circuit breakers.

The difference in voltage level: Generally, the voltage level used by air switches is below 500V, while circuit breakers can usually be used in various voltage levels above 220V.
