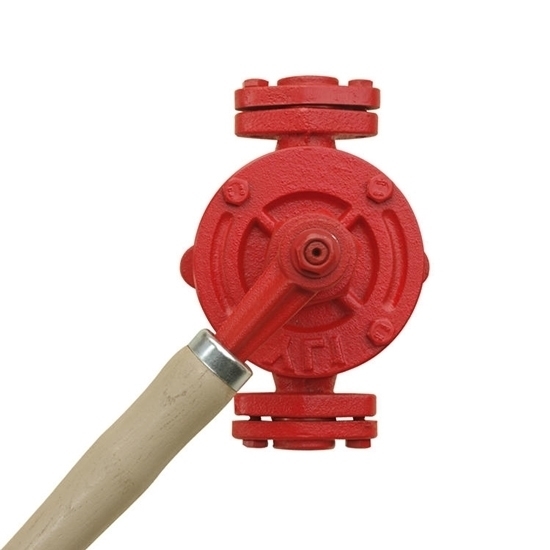

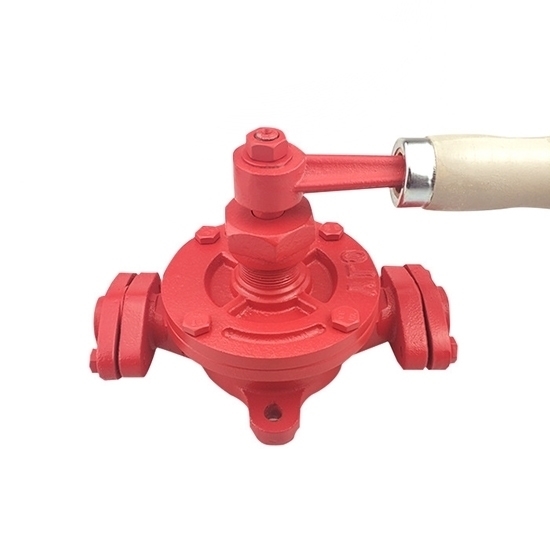

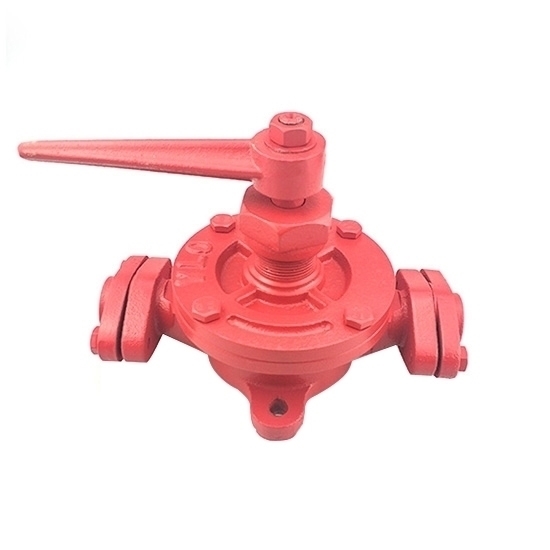

G1-1/4" Semi Rotary Hand Pump, 28 LPM

Semi rotary hand pump comes with G1-1/4 inch thread port, which is a type of manual pump that uses a semi rotary action to move water, oils, and other fluids in various settings. This hand operated rotary pump is made of cast iron, 28 LPM flow rate, widely used in agricultural, industrial, and marine.

SKU: CCHN-SRHP-YL3

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Semi rotary hand pump is a manual pump used for transferring fluids, typically in situations where electric pumps are not feasible or available. This hand operated rotary pump operates by manually rotating a handle, which creates suction and pressure to move oil, diesel, gasoline and other fluids.

Specification

Model: CCHN-SRHP-YL3
Dive Mode: Manual Semi Rotary
Port Size: G1-1/4 inch Thread
Suction Capacity: 6m
Lift Capacity: 26m
Flow Rate: 28 L/min
Material: Cast Iron

Dimension (Unit: mm)

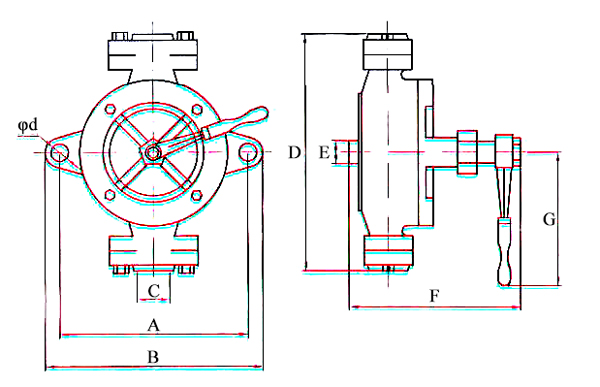

Semi rotary hand pump dimension

A	B	C	D	E	F	G	φd
145	175	G1-1/4 inch	275	φ40	205	340	φ11

Installation

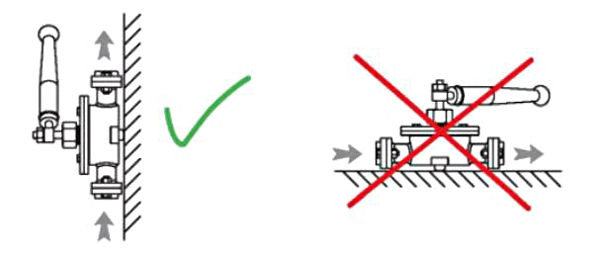

Semi rotary hand pump installation

How to Use

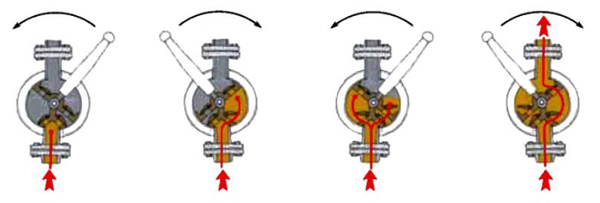

How to use semi rotary hand pump

Tips: Can semi rotary hand pump manage corrosive or high-viscosity liquids?

Semi-rotary hand pumps are generally designed for handling a wide range of fluids, including corrosive liquids and those with high viscosity. Their suitability depends on the specific materials used in construction and the pump's design features.

For corrosive liquids, pumps made from materials like stainless steel or certain types of plastics are often used to resist chemical degradation. These materials can withstand the corrosive effects and ensure longevity and safety in operation.

Regarding high-viscosity fluids, semi-rotary hand pumps can be equipped with features such as larger inlet and outlet sizes, special seals, and modified pumping mechanisms to handle thicker liquids more effectively.
