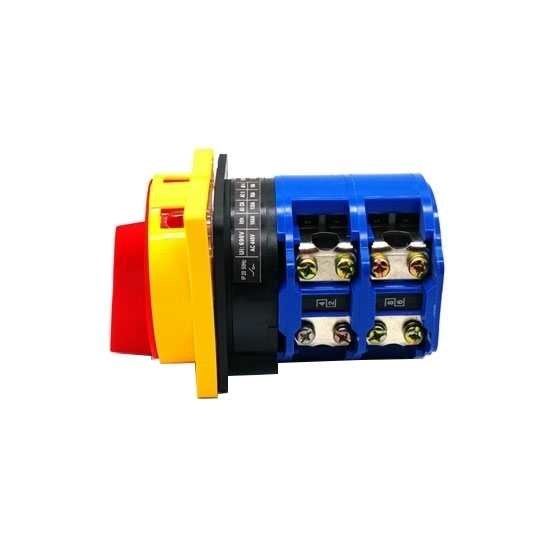

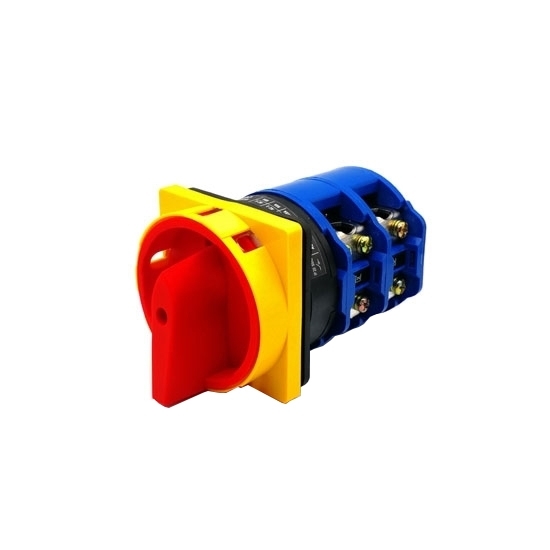

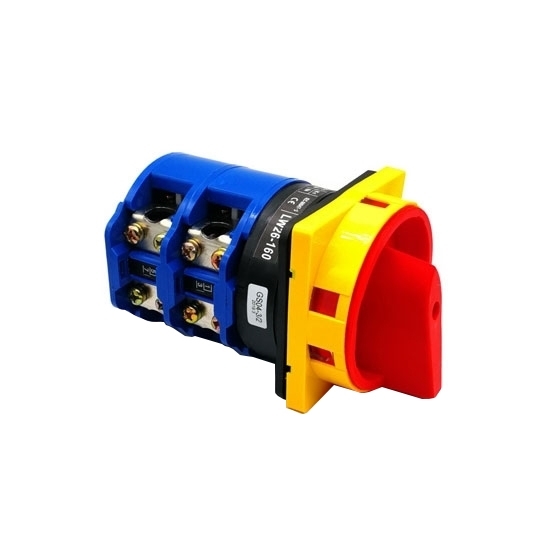

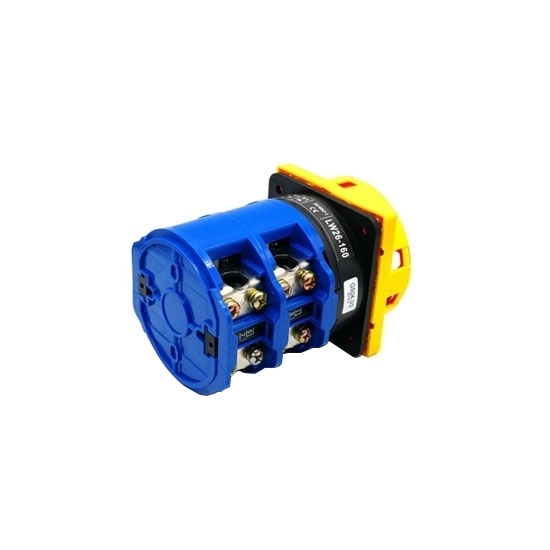

2 Position 25A Rotary Switch, 4 Pole

Buy cheap price rotary cam switch, 2 position, 4 pole, 25 Amp rated current, rotary switch is mainly used for the conversion of various control lines, voltmeter, ammeter commutation measurement control, distribution device line conversion and remote control.

SKU: CCHN-LW26GS25

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

2 position 4 pole Rotary switches rated voltage 440V, it can be used to directly control the start, speed and commutation of small capacity motors, manufacturer direct sales.

Specification:

Model		CCHN-LW26GS25
Rated Voltage		440V
Rated Thermal Current		25A
Rated Working Current	AC-21	25A
	AC-22	25A
	AC-23	22A
Pole		4 Pole
Position		2 Position
Rated Power		11 kW
Escutcheon Plate		M2
Dimension	A	64
	C	45.2
	L	51
	H	42
	E	48
	F	48
	D1	φ10
	D2	φ4.5
Ambient Temperature		-25℃-40℃
Altitude		≤2000m
Humidity		≤50%

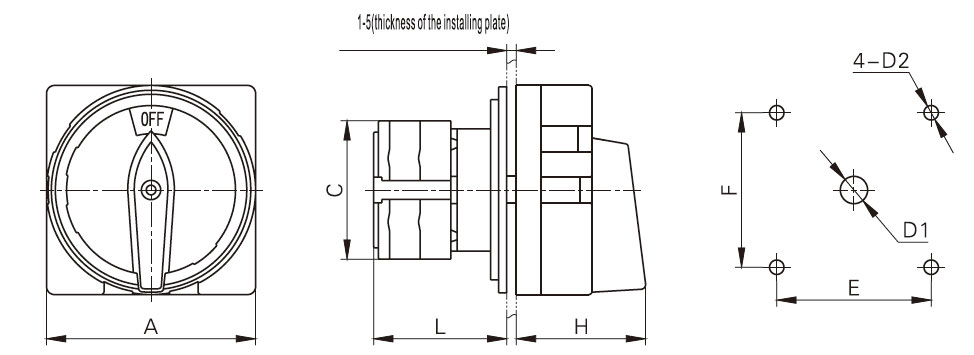

Dimensions (Unit=mm)

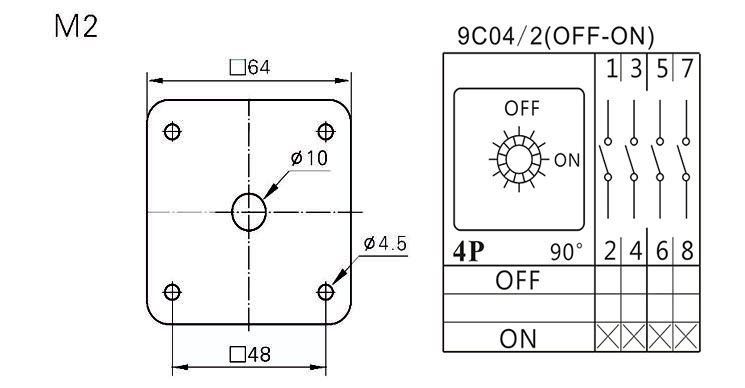

25A 4 Pole M2 Panel

Rotary switch escutcheon plate
Tips: Rotary switch maintenance

1. When the rotary switch is powered off, it will stop the auxiliary isolation first, then stop the main isolation.
2. Check the gas concentration before opening the cover. After opening the cover, check whether the cable of the wiring chamber is tight and whether there is any debris in the switch cavity; handle the explosion-proof surface of the switch.
3. The upper cover: restore the shift, switch power supply.
4. Perform a protection test on the rotary switch. Use appropriate tools and proper methods of operation during the inspection.
