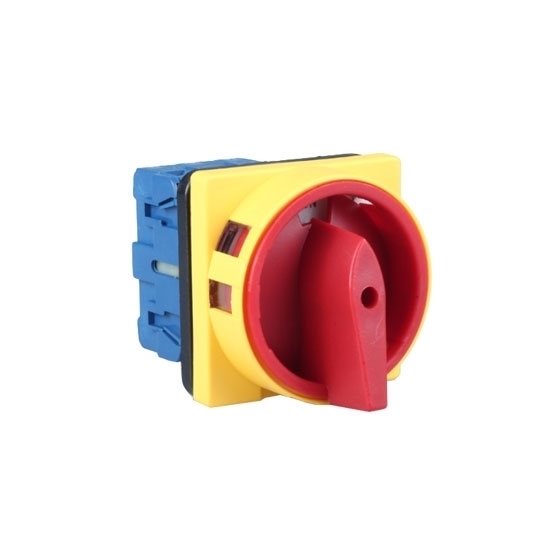

2 Position 40A Rotary Switch 3 Pole/4 Pole

2 Position 40A Rotary Switch 3 Pole/4 Pole

High quality changeover switch for sale, 40A, 2 position rotary switch is mainly used for AC 50Hz, can be used for main switch of ventilation equipment, air conditioning and water pump system, ideal for power switches in power lines.

SKU: CCHN-WS3040

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Rotary switch for standard low voltage control/load switching and ultra low voltage and electronic applications, 3 pole/4 pole is optional, rated currrent 40 amp, long service life, manufacturer direct sales.

Specification:

Model		CCHN-WS3040
Rated Thermal Current		40A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	40A	40A
	AC-22A	40A	40A
	AC-23A	30A, 7.5 kW	30A, 15 kW
	AC-3	22A, 7.5 kW	22A, 11 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

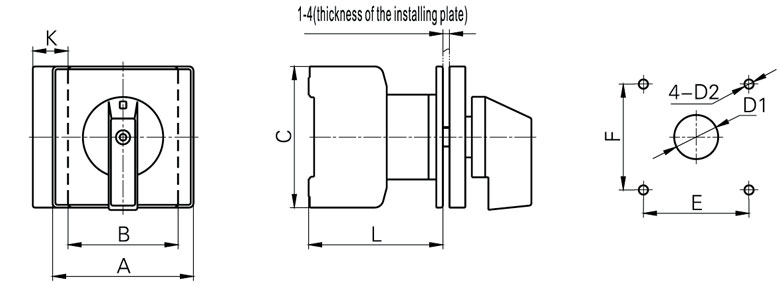

Rotary switch 3 pole dimensions.

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	50	64	16	67	48	48	φ10	φ4.2

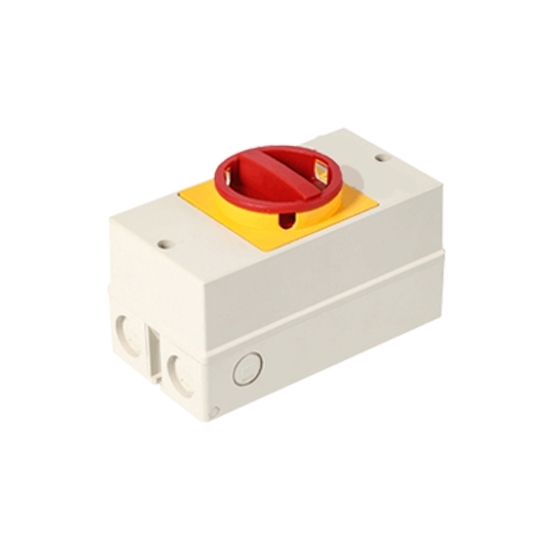

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ29	φ23	100	95	190	178	--	--	φ4.2

Rotary Switch Diagram

Rotary switch 3 pole 4 pole Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
