Insulation Rubber Sheet, 6mm*15kV

The extreme elasticity of rubber has become the first reason for the choice of the 6mm*15kV insulating rubber sheet. Good elasticity makes the insulating rubber sheet difficult to break during other processes such as stopping the floor, and has good stretch ability and extensibility.

SKU: CCHN-RS-01-6mm

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The most important thing in choosing rubber as an insulating plate is that the rubber has good insulation, which allows the insulating rubber plate to work normally under high voltage, without being affected by high voltage.

Selection configuration table

Basics	Model	CCHN-RS-01-6mm
	Thickness	6mm
	Width	1m
	Length*	Customized

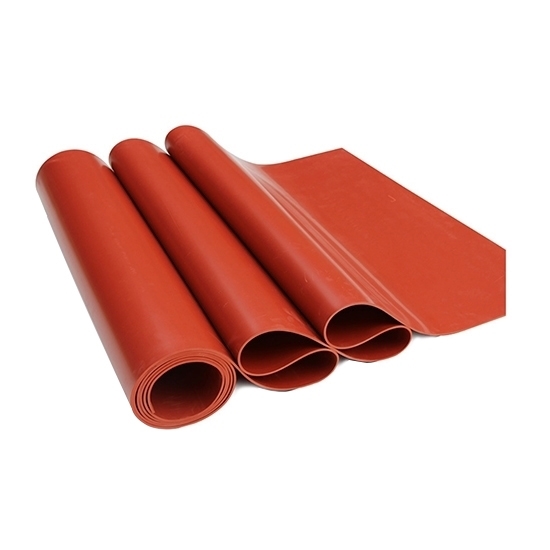

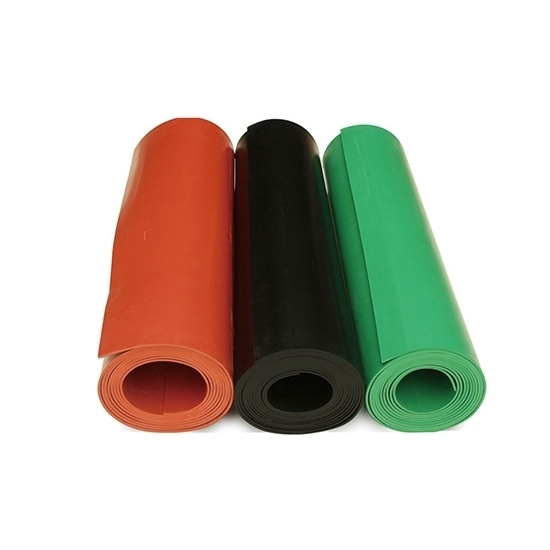

	Color*	Black, Red, Green

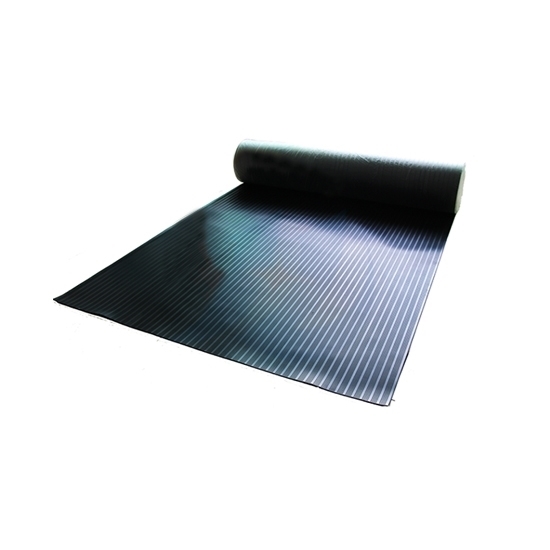

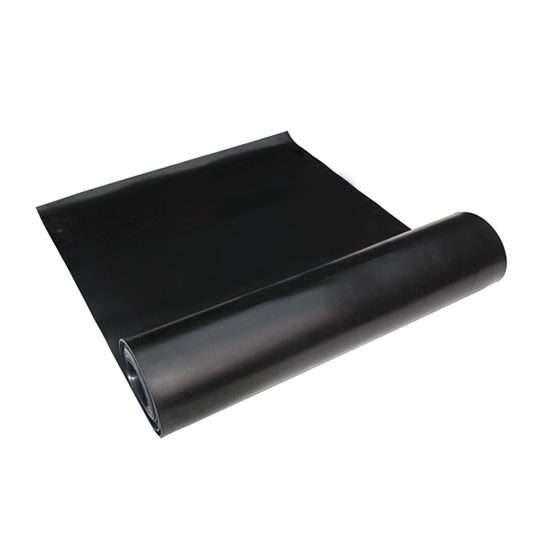

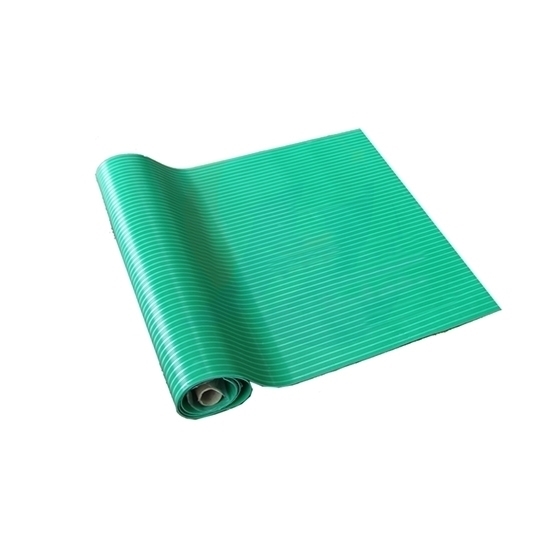

	Ruber Sheet Type*	Smooth surface, Striped surface
	Pressure resistance	15kV
Technical Parameters	Electrical insulation performance test	15kV
	Time required for power frequency withstand voltage test	1min
	actual test measurement time	2min
	Measured value of power frequency withstand voltage experiment	≥15kv
	Hardness (Shore A)	55-70
	Tensile strength (Mpa)	≥5.0
	Elongation at break	≥250%
	Fixed elongation (150%) permanent deformation	≤25%
	Hot air aging (70℃*72h): the reduction rate of tensile strength	≤30%
	Water absorptio	≤1.5%

Tips

The insulating rubber sheet made of rubber is also waterproof, and the insulating rubber sheet is laid in the air, which effectively avoids the accident of water penetration and plays a role in maintaining the safety of the staff. Rubber is not only used in the power industry but also widely used in other industrial fields. The molecular chain does not contain polar groups and is a non-polar rubber. Only resistant to some polar solvents. Therefore, its oil resistance is very poor. The insulating rubber sheet has good alkali resistance, but is not resistant to strong acid.
