2 HP (1.5 kW) Sliding Vane Pump, 380V

A 2 hp sliding vane pump is a type of positive displacement pump that uses vanes, mounted in a rotor, to slide in and out of slots and create a pumping action. Rotary sliding vane pump often used in fuel transfer, oil handling, and chemical processing due to their durability, consistent flow rate, and ability to operate at varying speeds.

Features:

• Slide pump has a strong self-priming capacity.
• Mechanical seal with special structure is safe, durable and reliable.
• Pump vane by centrifugal force, mechanical thrust, hydraulic pressure combined action, so that the pump has a unique high efficiency.

Specification:

• Model: CCHN-50YPB-8
• Voltage: 380V
• Power: 2 HP (1.5 kW)
• Capacity: 8 m³/h
• Pressure: 0.4 MPa
• Rotate Speed: 960 r/min
• Self-priming Height: 6m

Structure:

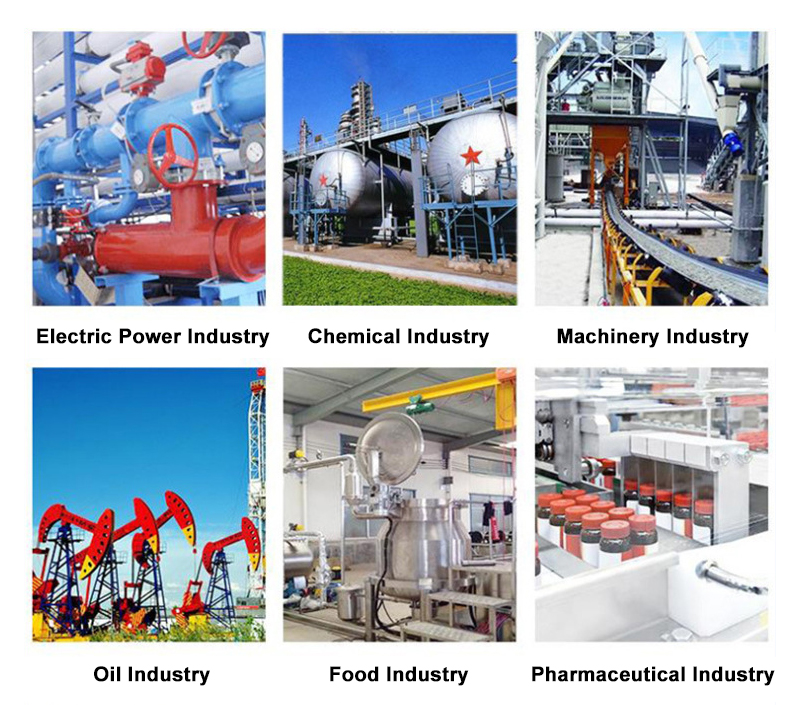

Application:

Tips: What is Sliding Vane Pump?

A sliding vane pump is a type of positive displacement pump that uses a series of sliding vanes or blades within a cylindrical rotor to pump fluids. The rotor is typically mounted eccentrically within a circular pump casing, creating crescent-shaped chambers between the rotor and the casing. The sliding vane pump typically consists of a housing or casing with an inlet and an outlet, and a rotor that is mounted eccentrically within the housing. The rotor has slots or cavities that hold vanes or blades that slide in and out as the rotor rotates. The vanes are free to move within the rotor slots, maintaining contact with the housing as well as the eccentricity of the rotor.
