7.5 HP (5.5 kW) Sliding Vane Pump, 380V

The sliding vanes provide sealing between the rotor and casing, allowing the 7.5 hp sliding vane pump to generate pressure and deliver a steady flow of fluid. And the vane pump has the characteristics of self-priming capacity and high efficiency.

Features:

• Slide pump has a strong self-priming capacity.
• Mechanical seal with special structure is safe, durable and reliable.
• Pump vane by centrifugal force, mechanical thrust, hydraulic pressure combined action, so that the pump has a unique high efficiency.

Specification:

• Model: CCHN-65YPB-35
• Voltage: 380V
• Power: 7.5 HP (5.5 kW)
• Capacity: 35 m³/h
• Pressure: 0.6 MPa
• Rotate Speed: 960 r/min
• Self-priming Height: 6.5m

Structure:

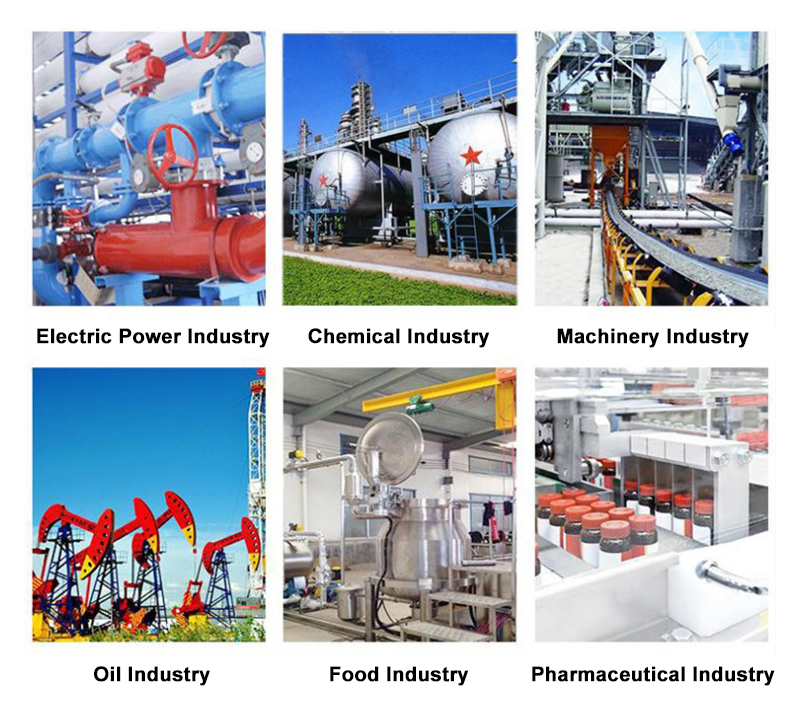

Application:

Tips: What are the Disadvantages of Sliding Vane Pump?

• Limited solids handling capability. Sliding vane pumps are not well-suited for handling fluids with high levels of solids or abrasives. The vanes can become damaged or worn when exposed to solid particles, which can reduce their efficiency and service life.
• Sensitivity to contamination. Sliding vane pumps are sensitive to fluid contamination, particularly in the form of debris, dirt, or other particles. Contaminants can interfere with the sliding action of the vanes and cause premature wear or damage to the pump, leading to reduced performance and increased maintenance requirements.
• Noise and vibration. Sliding vane pumps can generate noise and vibration during operation, particularly at higher speeds.
