3 inch Stainless Steel Basket Strainer

Note: This basket strainer cannot be used for drinking water.

High quality 3 inch (DN80) stainless steel basket strainer is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. Flange connection, stainless steel materials can withstand high temperatures and pressure.

Specification

• Model: CCHN-HG80
• Type: Basket Type Strainer
• Nominal Diameter: 3 inch (DN80)
• Working Pressure: 1.6-10MPa
• Product Material: Stainless Steel
• Connection Form: Flange
• Temperature Range: 0°C~330°C
• Filtration accuracy: 100-400 mesh
• Medium: Water, oil

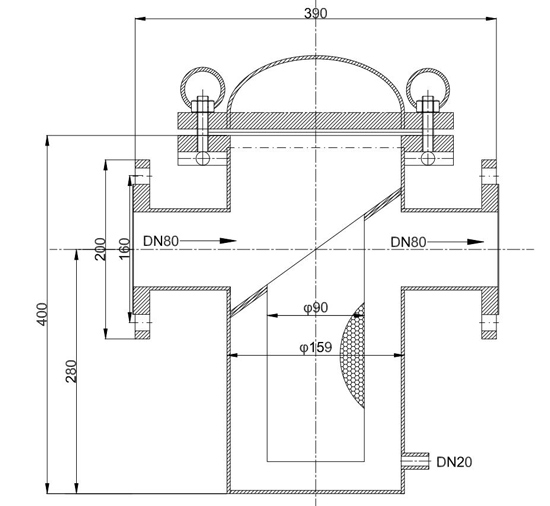

Dimension (mm)

Detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Tips: How to maintain a stainless steel basket strainer?

• When cleaning impurities, pay special attention to the stainless steel wire mesh on the filter element not be deformed or damaged, otherwise, if the filter is installed again, the purity of the filtered medium will not meet the design requirements, and compressors, pumps, instruments, and other equipment will be damaged.
• If the stainless steel wire mesh is found to be deformed or damaged, it must be replaced immediately.
