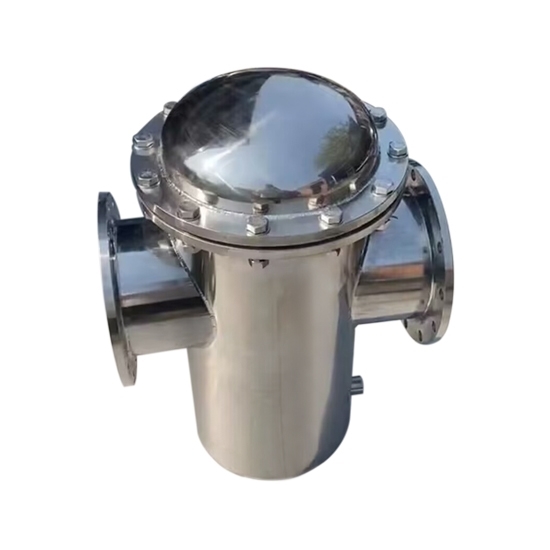

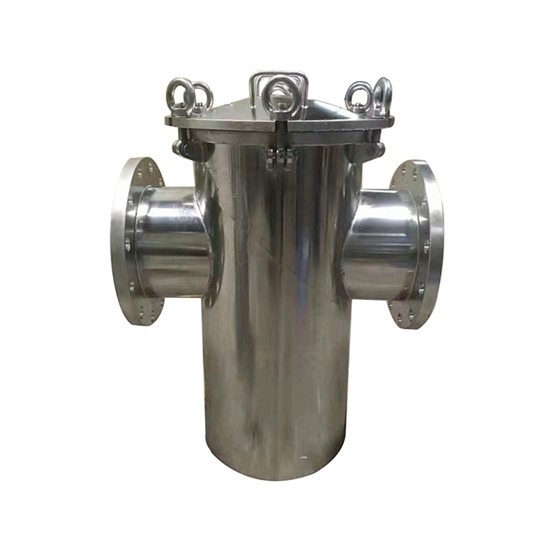

4 inch Stainless Steel Basket Strainer

Buy an ATO 4" (DN100) stainless steel basket strainer at a low price. 1.6-10MPa working pressure, stainless steel material. High-quality basket-type filter is widely used in various pipeline projects such as the chemical industry, heating, refrigeration, petroleum, construction, wind power, etc.

SKU: CCHN-SSBS-DN100

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This basket strainer cannot be used for drinking water.

Hot selling stainless steel basket strainer with nominal diameter 4 inch (DN80). The structure of the basket filter should be simple and reliable, flexible in loading and unloading, easy to disassemble and wash, and good in sealing.

Specification

Model: CCHN-HG100
Type: Basket Type Strainer
Nominal Diameter: 4 inch (DN100)
Working Pressure: 1.6-10MPa
Product Material: Stainless Steel
Connection Form: Flange
Temperature Range: 0°C~330°C
Filtration accuracy: 100-400 mesh
Medium: Water, oil

Dimension (mm)

Stainless steel basket strainer dimension

DN	D	L	H2	H
100	219mm	400mm	300mm	470mm

Detail

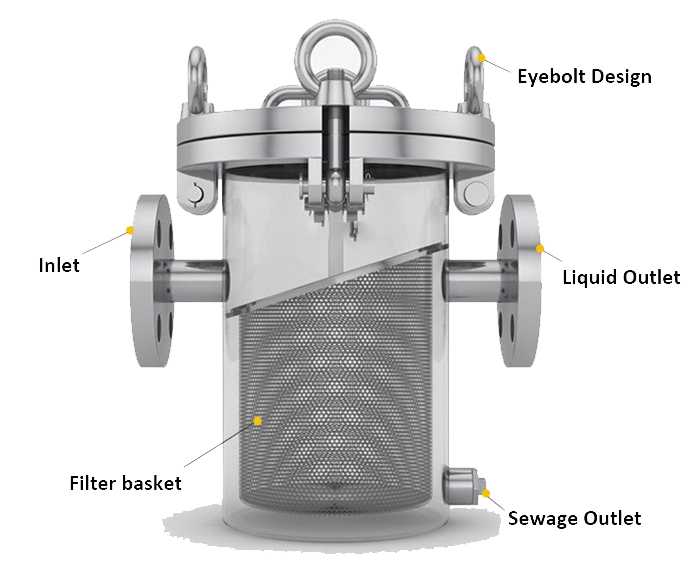

Stainless steel basket strainer detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Basket strainer application

Tips: What is the difference between a T strainer and a basket strainer?

A T-type strainer is a better option for industrial applications dealing with viscous fluids that must be transferred at higher velocities. A basket strainer is an ideal option in this case as it offers a higher flow capacity by draining dangerous fluids quickly.
