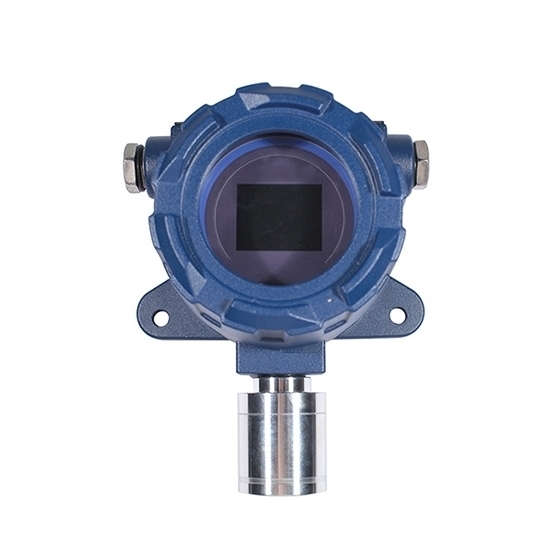

Explosion-proof Temperature and Humidity Sensor, 4-20mA/RS485

Explosion-proof Temperature and Humidity Sensor, 4-20mA/RS485

High performance and reasonable price explosion-proof temperature and humidity sensor for sale online. 4-20 mA and RS485 two types of output signal are available. Transfer part of temperature and humidity sensor adopts a fully sealed flameproof enclosure. Explosion-proof temperature and humidity sensor widely used in coal mining, metallurgy, food and brewing.

SKU: CCHN-TAHS-EP

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High precision explosion-proof temperature and humidity sensor has the advantages of anti-impact and anti-aging. The external mounting hole is easy to install, which makes the response speed of the temperature and humidity sensor fast.

Specifications

Model	CCHN-ME-WS-GB
Power Supply	10-30V DC
Resolution	Temperature: 0.1℃; Humidity: 0.1%RH
Accuracy	Temperature: ±0.2℃ (at 20℃)
Accuracy	Humidity: ±2%RH (10%RH-80%RH); ±3%RH (0%RH～10%RH; 80%RH～100%RH) (at 20℃)
Measurement Range	Temperature: -40℃～80℃; -20℃～60℃ (with Display)
Measurement Range	Humidity: 0%RH～100%RH
Response Time	<200mA
LCD Refresh Rate	<1.2s
Output Mode	4-20mA (Included Two Signal: Humidity+Temp, 5 Wire); RS485
Installation Method	Wall-mounted, Fixed on the Wall
Enclosure/Protection Level	Cast aluminum, IP66 (Without Probe)
Explosion-Proof Mark	Exd IIC T6 GB
Explosion-proof Certification	CNEX
Electromagnetic Compatibility Standard	EN 61000-6-1; EN 61000-6-3; EN 61000-3-2; EN 61000-3-3

Dimension （Unit: mm)

Explosion proof temperature and humidity sensor dimension

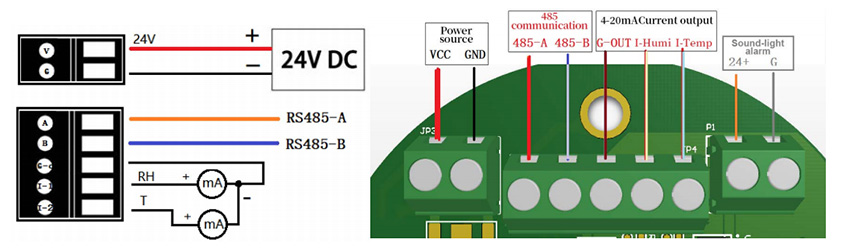

Wiring

Tips: Precautions For Explosion-proof Temperature and Humidity Sensor Use

To turn the screw on the top cover, press the screw with a screwdriver and then turn the screw.
When connecting terminals, do not strip the cables too long, and do not expose the copper wires directly inside the product to avoid short-circuit risks.
Disconnect the power supply before connecting the circuit.
Do not touch internal components directly with hands or metal objects.
After the installation is complete, check the screws on the cover and whether the waterproof connector is locked. The wire diameter must be 4-8mm.
5 minutes after switching on the power supply, the calibration operation will be carried out. Otherwise, the data output will not be accurate.
