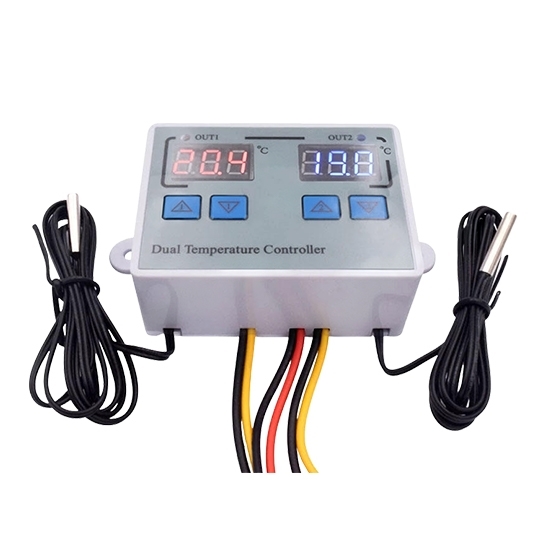

Intelligent Dual Temperature Controller, 12V/24V/110-220V

Intelligent Dual Temperature Controller, 12V/24V/110-220V

Intelligent dual temperature controller offers a choice of 12V, 24V, or 110–220V power inputs. With 0.1℃ accuracy, and 10A direct output, this digital temperature controller is ideal for aquariums, greenhouses, and refrigeration systems. Equipped with a waterproof probe and ABS housing, it ensures stable and reliable performance. Buy this smart temperature controller for precise temperature control.

SKU: CCHN-TEMPC-12

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

This smart temperature controller offers dual temperature control with intelligent working mode judgment. Available in 12V, 24V and 110-220V working voltages, and equipped with a 1m waterproof NTC probe for fast temperature detection. Durable ABS flame-retardant shell make it suitable for HVAC systems, water tanks, and automation projects. Buy now and make temperature control simple and precise.

Specification

Model	CCHN-W1088
Operating Voltage	12 V / 24 V / 110–220 V (optional)
Control Accuracy	±0.1°C
Load Power	120 / 240 / 1500 W
Output Capacity	10 A (direct output)
Temperature Range	-50 ~ 110°C
Sensor Probe	1 m waterproof NTC probe
Mounting Hole Spacing	88 mm (hole diameter: 4 mm)
Dimensions	75 mm × 55 mm
Housing Material	Flame-retardant ABS plastic
Net Weight	83g

Features

Intelligent Mode Detection: This intelligent temperature controller can automatically switch between heating and cooling modes, providing stable and efficient temperature management without frequent manual adjustment.
High-Precision, Wide-Range Temp Measurement: Featuring a wide temperature control range of -50~110℃ and 0.1℃ accuracy, this dual temperature controller ensures precise and reliable temperature regulation for various applications.
Safe and Durable Construction: Equipped with a waterproof NTC probe and flame-retardant ABS housing, this digital temperature controller delivers safe, stable, and long-lasting performance in demanding environments.

Dimension (unit: mm)

intelligent temperature controller dimension

Details

intelligent temperature controller details

Wiring

12V/24V

intelligent temperature controller wiring 12 24v

Note: The 12V/24V version of this temperature controller can be powered by a transformer or a DC power supply with 12V/24V output.
Caution: This temperature controller provides direct output. Do not power it on if the load is not properly connected to the output terminals to prevent sparks caused by contact between the two terminals.

220V

Tips: Temperature controller relay output vs SSR drive output

Relay output and SSR drive output each have their own advantages, and the better choice depends on the application requirements. Relay output temperature controllers are suitable for low-frequency switching loads and can directly control heaters, fans, or other devices with higher current capacity. They are cost-effective and widely used in general temperature control applications. SSR drive output temperature controllers are designed to work with solid state relays, offering faster response speed, silent operation, and longer service life due to no mechanical contact wear. They are ideal for high-frequency switching, precise temperature control, and applications requiring stable long-term operation. For basic temperature control, relay output is usually sufficient, while SSR drive output is better for high-precision and continuous industrial control systems.
