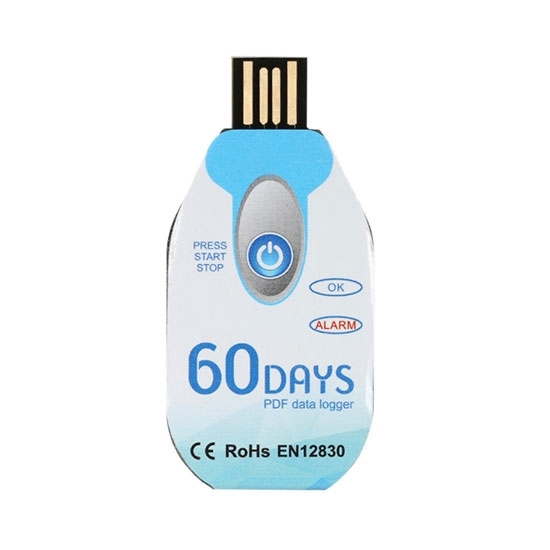

Single Use Temperature Data Logger, USB, Disposable

Single Use Temperature Data Logger, USB, Disposable

Single use temperature data logger at low price, temperature recording range -30℃ ~ +60℃ (22℉ or 140℉), used for shipping, vaccine storage and cold chain. 30/60/90 days recording duration could be selected. Disposable temp data logger can be inserted to computer’s USB port and get PDF report directly.

SKU: CCHN-TDL-U02

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Disposable temperature data logger is mainly used for temperature mapping during storage, shipping and transportation of vaccines, food, medicine, chemicals and other products. It has USB interface to get PDF report directly.

Specification

Model	CCHN-TDL-U02
Recording Option	Single Use
Recording Duration	30 Days	60 Days	90 Days
Recording Interval	5 Minutes	10 Minutes	15 Minutes
Temperature Range	-30℃ ~ +60℃ (22℉ or 140℉)
Temperature Accuracy	±0.5℃ (-20℃ ~ +40℃), ±1.0℃ (Other Range)
Temperature Resolution	0.1℃
Data Storage Capacity	10,000
Shelf Life / Battery	2 Years / CR2032 Button Cell
Temperature Alarm Range	<2℃ or >8℃ (<35.6℉ or >46.4℉)
Alarm Type	The red LED will flash every 10s if the temperature has been out of range
Start Delay	30 mins
Communication Interface	USB 2.0
Report Generation	Automatic PDF Report Generation
Waterproof Level	IP67 (with Seal-Bag)
Software	No need install any software

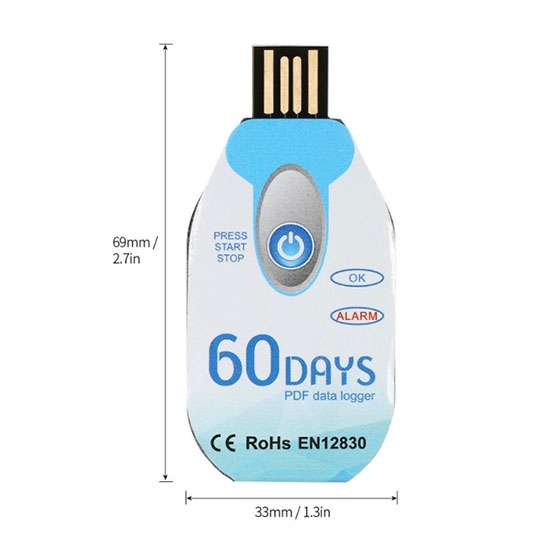

Dimension	69mm * 33mm * 5mm
Net Weight	10g

Operation Instruction

Status	Action	LED Indication
Inactivated	Short press the button once to judge if the logger is inactivated.	ALARM and OK lights flash once at the same time, means the logger is inactivated.
Activated	The LED will flash every 10s automatically. If "OK" light flashes, the logged temperature has never been out of range. If "ALARM" light flashes, the logged temperature data was out of range before.
Stopped	No press the button	Both ALARM and OK lights won't flash
	Short press the button	OK light flash (normal temperature)
	Short press the button	ALARM light flash (temperature data was out of range)

Details

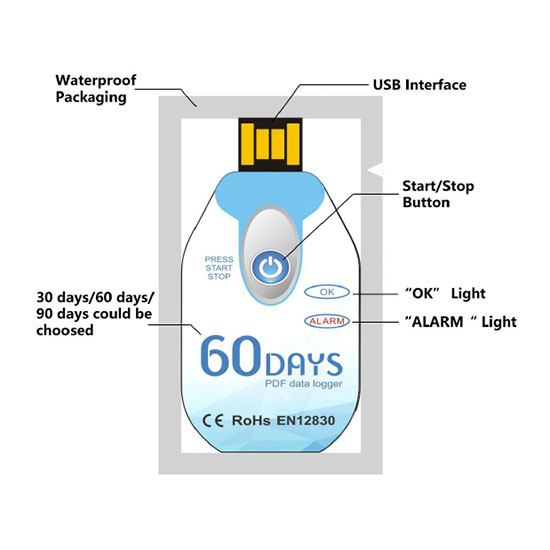

Detail of Disposable USB Single Use Temperature Data Logger

How to use

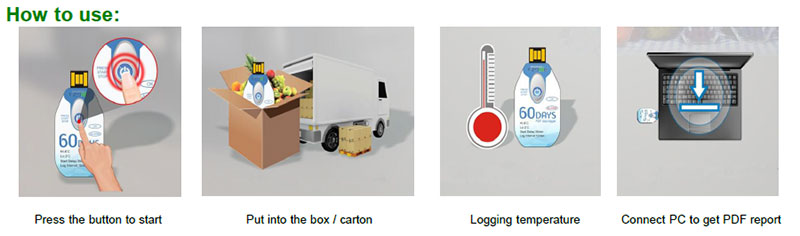

How to Use the Disposable PDF USB Temperature Data Logger

Applications

Applcations of Disposable USB Single Use Temperature Data Logger Note:

Make sure the temperature data logger has been started before place it into the environment to use.
Don't place the temp data logger directly into the corrosive liquid.
Please do not operate the temp data logger under the bright light, because under the bright light, LED flashing will be difficult to be observed.
Please no direct heating or micro-wave heating or charge the battery.
Please recycle or dispose the temp data logger in accordance with local laws and regulations.
