2 Pin Covered Toggle Switch

Safety covered toggle switch for sale, 2 pin, single pole 2 position, switch panel mounting hole size 1/2 inch (12mm), good waterproof effect and anti-collision design, easy to turn on/off, red cover prevents accidental start, contact angle brass material.

SKU: CCHN-TS-HKS1201

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

On off waterproof toggle switch can only be activated after flipping the switch guard, 12mm hole size, 2 pin, service life time is more than 10,000 cycles, safe and reliable.

Specification:

Model	CCHN-TS-HKS1201
Withstand Voltage	AC 1500V/min
Pin	2 pin
Type	Single pole 2 position
Operating Force	2-10N
Use lifetime	>10000 cycles
Cover	Stainless steel
Contact Angle	Brass
Operating Temperature	-25℃~85℃
Contact Resistance	≤0.02
Insulation Resistance	≥1000
Socket	Brass
Warranty	12 Months
Weight	36g

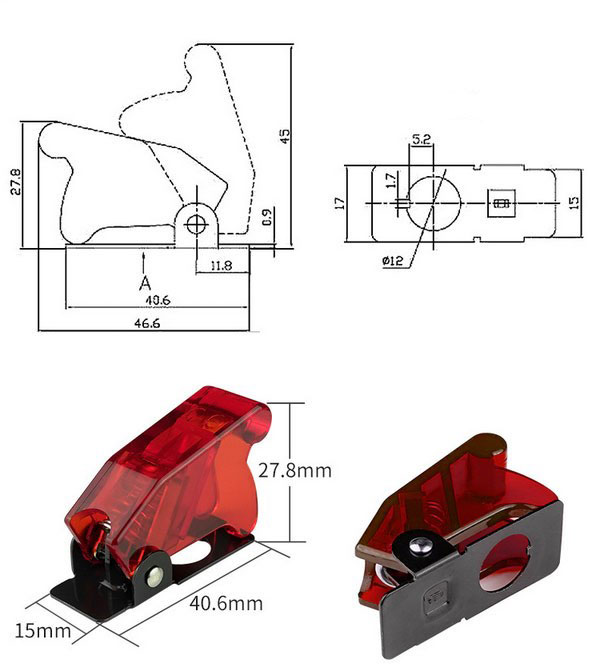

2 Pin Covered Toggle Switch Dimension (unit: mm)

Tips: What is a toggle switch?

Toggle switch is to switch the circuit by turning the switch handle to make the circuit on or off. The commonly used varieties of toggle switches include single-pole double-position, single-pole three-position, double-pole double-position and double-pole three-position, etc. It is generally used in low-voltage circuits, and has the characteristics of flexible slider action and stable and reliable performance. Toggle switch Mainly widely used in: various instruments/meters and equipment, various electric toys, fax machines, audio equipment, medical equipment, beauty equipment, and other electronic product fields.
