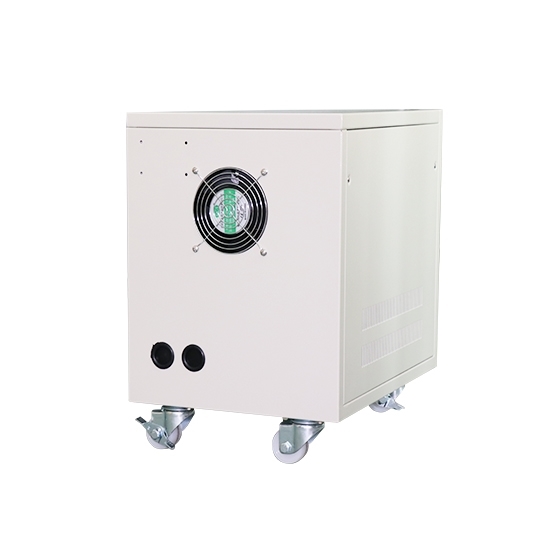

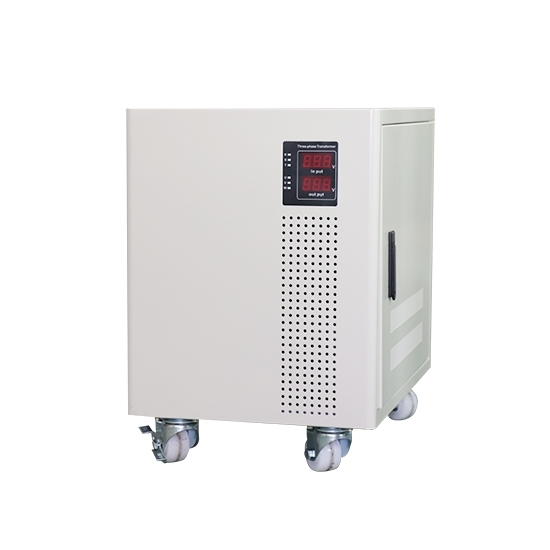

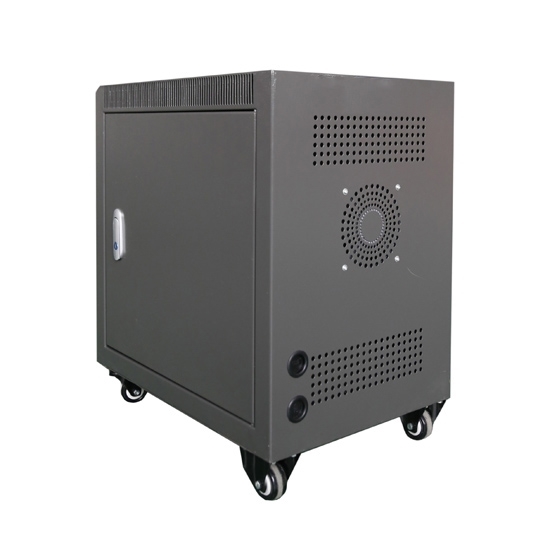

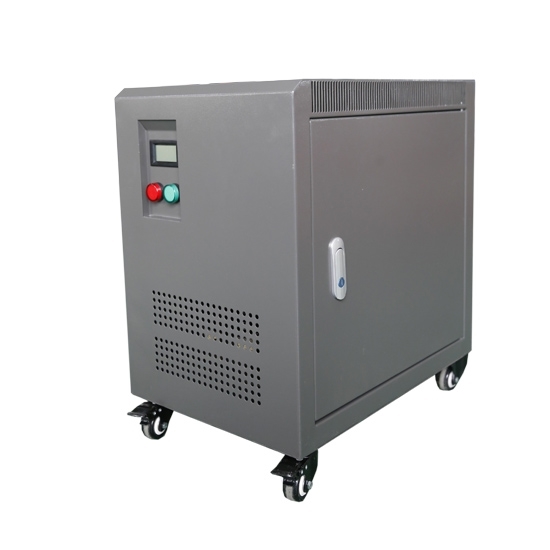

5 kVA Isolation Transformer, 3 phase, 480V to 400V

The 5kVA isolation transformer is high quality, three phase, 480V primary voltage and 400V secondary voltage, manufactured direct sale. Fully compliant with reduced low voltage regulations, is a non-ventilated isolation transformer rated for hazardous locations as well as harsh industrial environments.

5 kVA Isolation Transformer Specifications

Note:
*Transformer can only convert voltage and CANNOT convert frequency.
*Transformer CANNOT convert single phase voltage to 3 phase voltage.
*Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

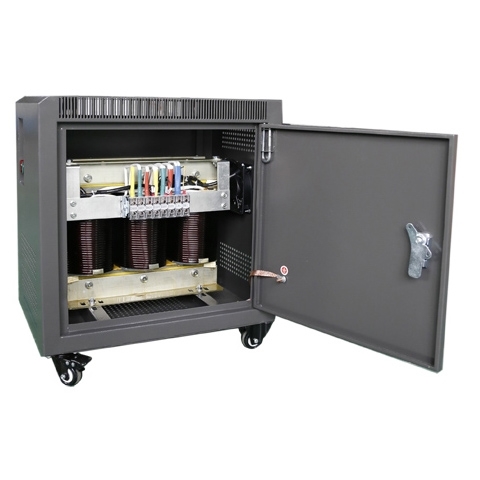

3 Phase Isolation Transformer Details

5 kVA Isolation Transformer Installation Dimension

Tips: Dyn11 Wiring Method of 3 Phase Step up & Step down Isolation Transformer

Dyn11 is CCHN step up/down isolation transformers wiring method. D represents that the primary winding adopts triangular form wiring, Y represents the secondary measuring winding adopts star form wiring, n represents to lead the neutral line, 11 represents that the secondary winding phase angle lags 330 degrees compared with the first winding. If use clock representation method and assume the primary winding locates at the center of 12 o'clock, then the secondary winding locates at 11 o'clock position with an included angle of 30 degrees.
