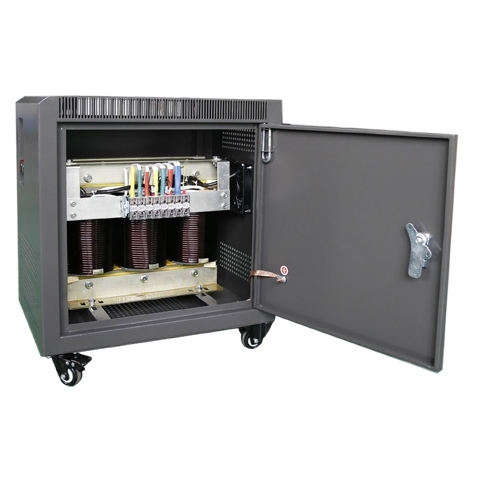

8 kVA Isolation Transformer, 480V 3 phase to 240V 3 phase

Three phase 8kVA isolation transformer is designed to step down/up the voltage 480V to 240V, and widely used in various power supply sites with frequency 50Hz/60Hz.

8 kVA Isolation Transformer Specifications

Note:

Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

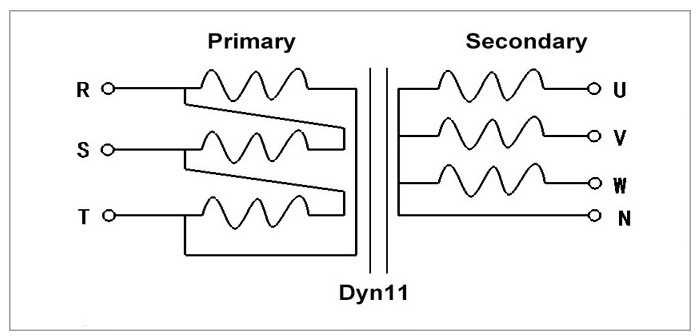

3 Phase Isolation Transformer Schematic Diagram

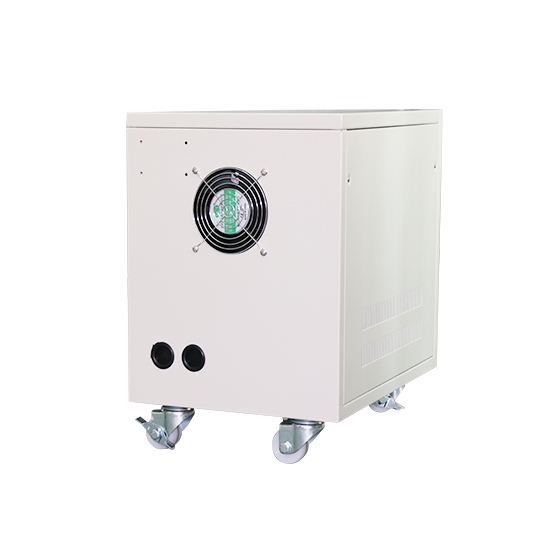

3 Phase Isolation Transformer Details

8 kVA Isolation Transformer Installation Dimension

Tips: CCHN Step up & step down isolation transformer shell selection

The selection of the shell is also very important to the isolation transformer protection and it should be according to the requirements of protection and the using environment, so the shell forms are diversified. Conventionally, the CCHN step up/down single phase and three isolation transformer shell selects IP20 mainly to protect the live parts and to prevent the cats and rats as well as some larges and 12mm diameter foreign matters into the transformer, which may cause short-circuit and other serious accidents. In addition, the outdoor transformer protective shell needs to select IP23, which not only has the above functions, but also can avoid droplets within vertical 60 degrees. However, this will have an impact on the cooling capacity of the isolation transformer, so the operation capacity needs to be paid attention to.
