Used 3 Phase 45kVA Isolation Transformer, Delta Configuration 240V to 240V

Used 3 Phase 45kVA Isolation Transformer, Delta Configuration 240V to 240V

Reasonable price used 3 phase 45 kVA isolation transformer for sale online. 240V to 240V isolation transformer with 4 wire three phase high-leg delta configuration and 50 Hz / 60 Hz frequency. Working temperature between -15 ℃ and 40 ℃. Enclosure protection grade of 3 phase isolation transformer is IP24.

SKU: CCHN-3UIT-45

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Used 240V to 240V 3 phase isolation transformer with a cheap price for sale. H level insulation grade of isolation transformer. 45 kVA isolation transformer has high working efficiency, can be achieved 95%.

Features:

Three phase isolation transformer with 45 kVA power rating.
Dry air self cooling of cooling mode on 240V to 240V isolation transformer.
Isolation transformer with 4 wire three phase high-leg delta configuration.
Better dielectric strength and insulation resistance and IP24 protection grade of enclosure.

Specifications:

Basic	Model	CCHN-SG45KVA
	Phase	3 phase
	Capacity	45 kVA
	Weight of Copper Wire Transformer	Open Type: 200 kg; Protected Type: 232 kg
Technical Parameters	Primary Voltage	240V, 4 wire high leg delta configuration (240V L-L, 120V L-N, and 208V with the high leg)
	Secondary Voltage	240V, balanced delta configuration, 3-phase (L1, L2, L3 + G)
	Voltage Convert	Three phase to three phase
	Frequency	50 Hz / 60 Hz
	Wiring Mode	4 wire three phase high-leg delta configuration
	Winding Material	Copper wire enclosure
	Work Efficiency	≥95%
	Insulation Resistance	≥50 MΩ
	Electrical Strength	3000V AC / 1 min
	Noise	<35-65 dB (1 meter)
	Insulation Grade	H level
	Enclosure Protection Grade	IP24
	Cooling Mode	Dry type air cooling
	Overload Capacity	Allow more than 1.2 times rated load to work for up to 4 hours
	Certificate	CE, ISO
	Warranty	12 months
Working Environment	Temperature	-15 ℃ ~ 40 ℃
	Humidity	≤90% RH, without condensation
	Altitude	<1000m, non corrosive gas and conductive dust

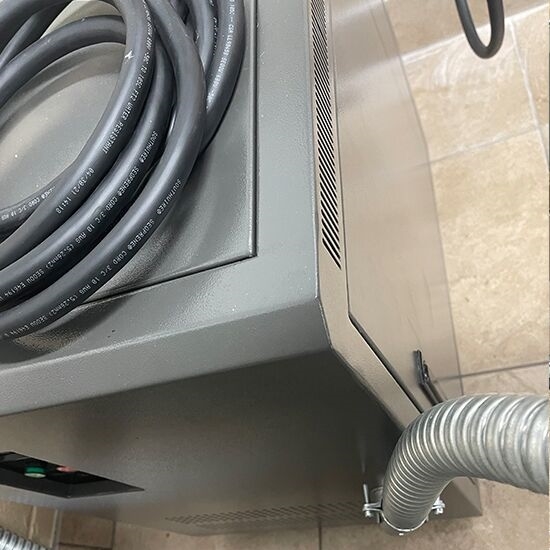

3 Phase Isolation Transformer Details:

3 phase isolation transformer details

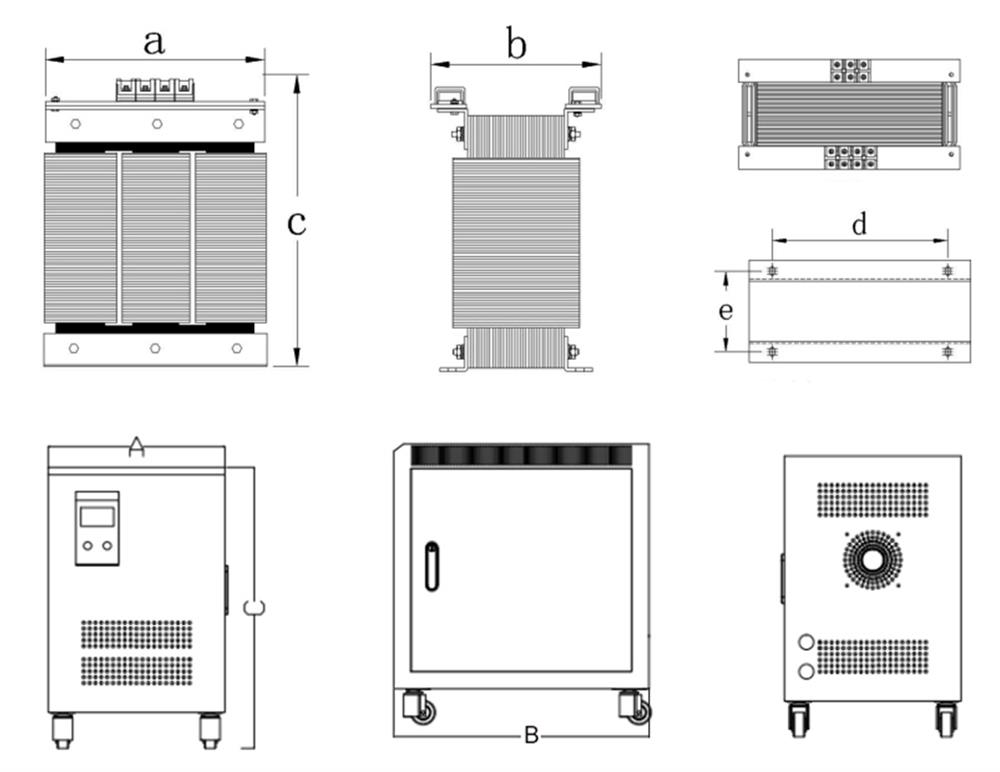

45 kVA Isolation Transformer Installation Dimension:

3 phase isolation transformer dimension

Copper Wire Transformer Size:

Open Type: a*b*c=440*350*420 mm
Mouting Size: d*e=300*200 mm
Protected Type: A*B*C=420*610*610 mm

Tips: Development Trend of Three Phase Isolation Transformer

Greener. Environmental protection is the general trend, with the shortage of energy and the aggravation of environmental pollution, major manufacturers have locked in the next development goal of energy conservation and environmental protection. Three-phase isolation transformer is also the same, energy conservation and environmental protection is an eternal subject. The development and introduction of new materials and new technology will make the future three-phase isolation transformer more energy saving, more quiet operation.
High safety factor. Three phase isolation transformer is used in major projects, such as science and technology, medical treatment, production and other fields. Especially in summer peak season, higher requirements for transformer safety are put forward. In the future, three-phase isolation transformer will be further reliability certification in terms of safety, and power safety will be the goal of unremitting efforts.
Scaling. As the population expands, so does the demand for electricity. The most obvious problem of power shortage is the peak consumption in summer and winter. Expanding capacity is the fundamental solution.
